Krone EasyCut F 360 - Lighting Connection

Start-up
43
Pos: 94.35 /Übersc hriften/Überschrif ten 2/A-E/ BBeleuchtung anschließen @ 33\mod_125 4385308979_ 78.docx @ 319105 @ 2 @ 1
7.8 Lighting connection
Pos: 94.36 /Ab kürzungen /Abkürz ungen Beschrei bung/Optional @ 102\mod_ 13311092674 12_78.docx @ 902782 @ @ 1
optional
Pos: 94.37 /BA/I nbetriebnahme/ EasyCut/Beleucht ung/Anschlus s Beleuchtung Bild EC F 280/3 20/360 / F 28 0/320/360 M @ 2 34\mod _1394015986938_7 8.docx @ 18 61754 @ @ 1

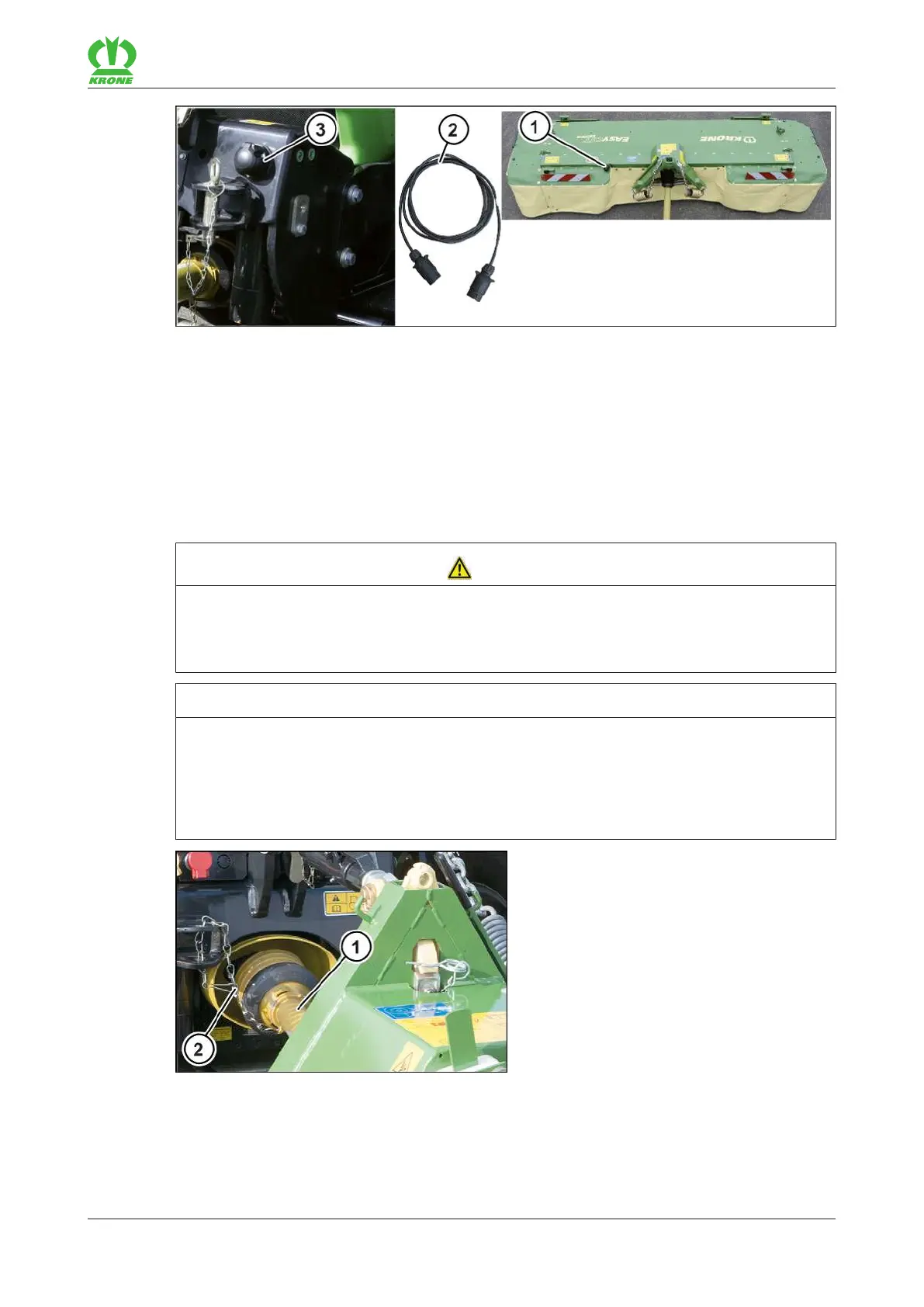

Fig.
20
Pos: 94.38 /La yout Module /----------------Leerzeile 5 Pt.-------------------- @ 120\mod_ 13425929181 45_0.docx @ 10 92566 @ @ 1
Pos: 94.39 /BA/I nbetriebnahme/ Schwader/Hin weis Sauberkeit der Stecker und Steckdosen @ 2\mod_12 02399563131 _78.docx @ 59273 @ @ 1
Note
Before inserting the plugs, make certain the plugs and sockets are clean and dry. Dirt and
moisture may result in short circuits!
Pos: 94.40 /BA/I nbetriebnahme/ Schwader/Ansc hluss Beleucht ung/Anschluss B eleuchtung Te xt @ 36\ mod_12607837989 36_78.docx @ 336718 @ @ 1
The lighting system is connected via the 7-pin connection cable (1).
To do this:
• Insert the 7-pin plug of the connection cable (1) into the relevant socket (2) of the tractor.
• Insert the 7-pin connection cable plug (1) into the appropriate socket (3) of the machine.
• Position the cable so that it will not come in contact with the wheels.
