Maintenance - Blade Changing
72
Pos: 135 /Übersc hriften/Überschrif ten 1/U-Z/W artung - Mess erwechsel @ 10 7\mod_13346 38484298_78.d ocx @ 968003 @ 1 @ 1
13 Maintenance - Blade Changing
Pos: 136.1 /Übersc hriften/Überschrif ten 2/K-O/ KKontrolle der M ähklingen u nd Messerhalteru ng @ 0\mod _1197265641 329_78.docx @ 1 6323 @ 2 @ 1
13.1 Checking the Cutter Blades and Blade Holder
Pos: 136.2 /BA/Sic herheit/7. G efahrenhinweise alt/Mähwerke/G efahr - Fehl ende und besch ädigte Mäh klingen und Mäh klingenhalterung en @ 0\mod_1 19726572281 3_78.docx @ 1 6342 @ @ 1
Warning! - Missing and damaged cutter blades and cutter blade retainers.
Effect: Danger to life, serious injuries or damage to the machine
• Check cutter blades at least once per day and check retaining bolts every time you change
the blades or after contact with foreign objects.
• Immediately replace missing or damaged cutter blades and cutter blade retainers
Pos: 136.3 /Übersc hriften/Überschrif ten 3/K-O/MM ähklingen @ 0\mod_11 97265959110_78. docx @ 16361 @ 3 @ 1
13.1.1 Cutter Blades
Pos: 136.4 /BA/ Wartung/Mähw erke/Die Bohr ung der Mähklingen kann sich durc h Verschleiß auf weiten. @ 10\mod_12210 48982715_78.d ocx @ 1316 75 @ @ 1
The borehole on the cutter blades may spread due to wear.
Pos: 136.5 /BA/Sic herheit/7. G efahrenhinweise alt/Mähwer ke/Warnung - Zu geri nge Materialst ärke an den M ähklingen_ neu @ 312\mod_ 14189839566 60_78.docx @ 2409555 @ @ 1
Danger! - Insufficient thickness of material on the cutter blades.
Effect: Danger to life or serious injuries.

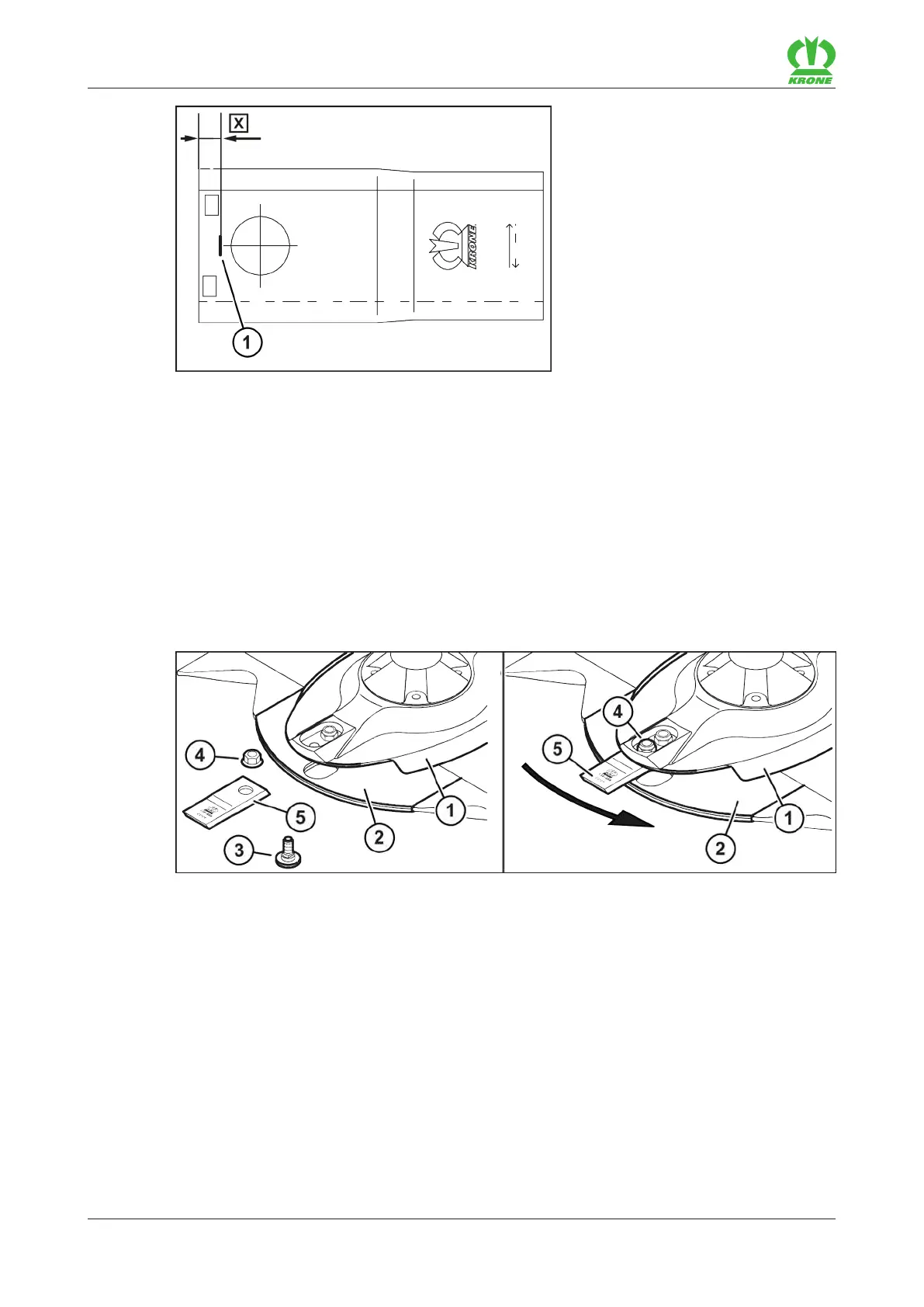

• The cutter blades must be replaced at the latest when the wear limit is reached (see mark
(1) on the cutter blade; dimension a less than or equal to 13 mm).
Pos: 136.6 /BA/ Wartung/Mähw erke/Mähklingen b eidseitig ver wenbar_neu @ 3\ mod_12047 28012601_78.d ocx @ 7260 8 @ @ 1
Fig.
Note - The cutter blades can be turned around and used on both sides.
• When cutter blades are missing or damaged, they must be replaced as a complete set.
This prevents dangerous unbalanced rotation
