Krone EasyCut F 360 - Adjusting the Compensation Springs

Settings
53
Pos: 100.9 /Übersc hriften/Überschrif ten 2/A-E/ EEinstellung der Entlastungsf edern @ 0\ mod_11966666594 47_78.docx @ 10133 @ 2 @ 1
10.2 Adjusting the Compensation Springs
Pos: 100.10 /BA /Sicherheit/7. Ge fahrenhinweise alt/Mähwer ke/Gefahr - Einst ellung an den Entlastungsfeder n @ 0\mod_1 19675159456 2_78.docx @ 1 2575 @ @ 1
Danger! - Setting on the compensation springs
Effect: Danger to life or serious injuries
• The compensation springs must only be removed in transport position. In the working
position the compensation springs are subject to high tensile stress.
• Severe injury can be caused if the compensation springs are removed while in the working
position.
• The lower threaded blocks on the compensation springs must be fully screwed in.
Pos: 100.11 /BA /Einstellungen/Mä hwerke/Eas yCut/Bodendruc k/Bodendruc k allgemeiner Text alle EC @ 0\ mod_11966 67271181_78.doc x @ 10190 @ @ 1
The ground pressure for the cutter bar is adjusted to local conditions by means of the
compensation springs. In order to protect the sward the load on the mowing spar must be
relieved so that it does not jump when mowing, yet does not leave any skid marks on the
ground.
Pos: 100.12 /BA /Einstellungen/Mä hwerke/Eas yCut/Bodendruc k/Bodendruc k einstellen Bild EC F280/320/360 @ 136\mo d_135288343 4463_78.docx @ 1 211705 @ @ 1

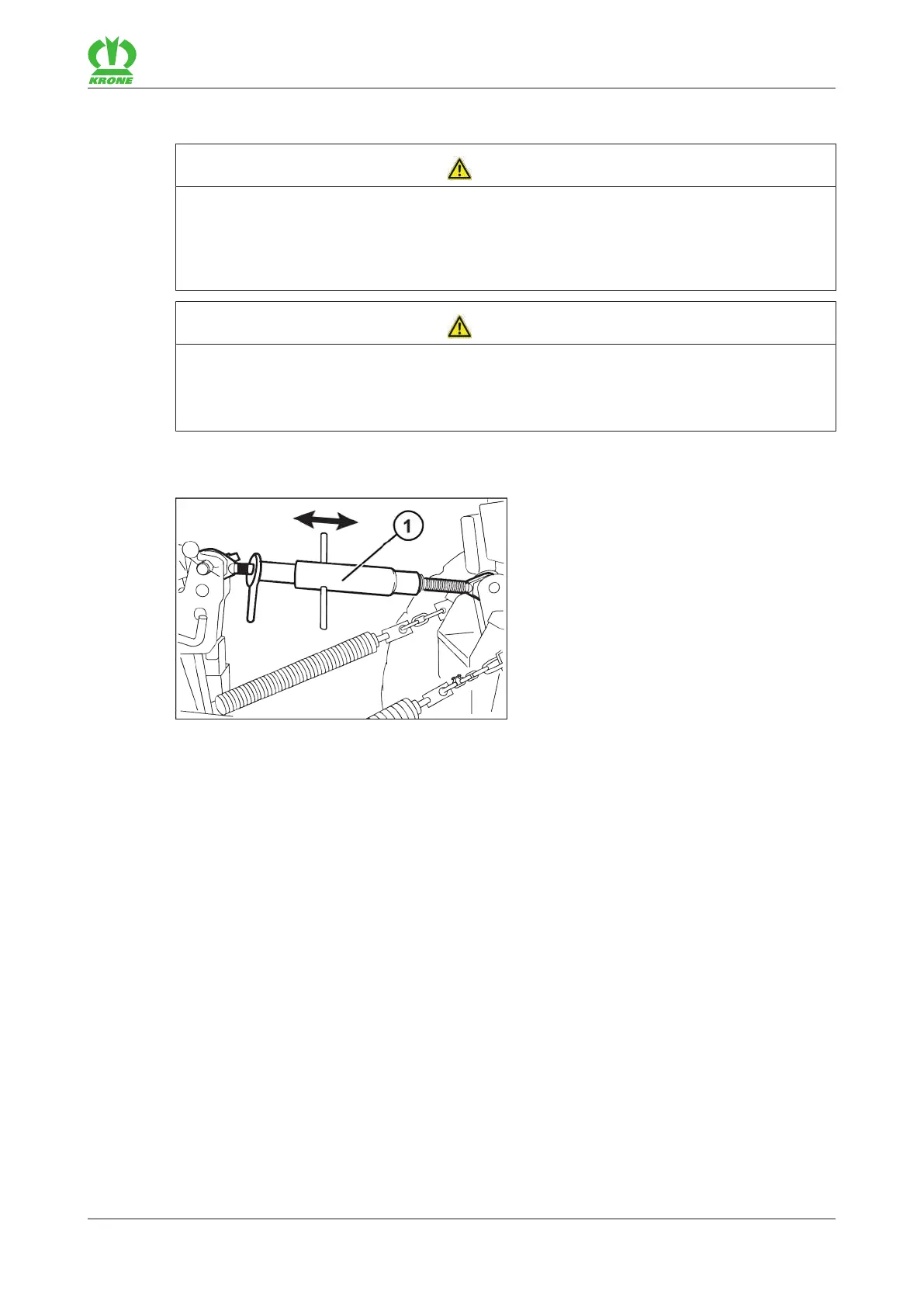

Fig.
28
Pos: 100.13 /BA /Einstellungen/Mä hwerke/Eas yCut/Bodendruc k/Bodendruc k einstellen Text EC 28/32 28/32C V @ 10\mod _12217378412 23_78.docx @ 136908 @ @ 1
Note
Retaining chain shorter= reduced ground pressure
Retaining chain longer= increased ground pressure
If a telescope upper suspension arm is being used (optional)
The higher the compensation springs (1) are hooked into the perforated bar (2), the lower the
pressure on the ground in the front part of the cutter bar.
If the compensation springs are hooked in too high, the mowing unit will tip towards the
rear.
or:
The lower the compensation springs (1) are hooked into the perforated bar (2), the greater the
pressure on the ground in the front part of the cutter bar.
If the compensation springs are hooked in too low, the mowing unit will have too much
weight on the ground in front.
