Krone EasyCut F 360 - Mounting and Adjusting the Relief Springs; Trial Run after First Installation

Start-up
42
Pos: 94.28 /Übersc hriften/Überschrif ten 2/A-E/ AAnbau und Ei nstellung der Entlastungsfedern ÜS @ 89\ mod_132195824 3040_78.doc x @ 756797 @ 2 @ 1
7.6 Mounting and Adjusting the Relief Springs
Pos: 94.29 /BA/Sic herheit/7. G efahrenhinweis e alt/Mähwer ke/Gefahr - Einst ellung an den E ntlastungsfeder n @ 0\mod_11 96751594562 _78.docx @ 12 575 @ @ 1
Danger! - Setting on the compensation springs
Effect: Danger to life or serious injuries
• The compensation springs must only be removed in transport position. In the working
position the compensation springs are subject to high tensile stress.
• Severe injury can be caused if the compensation springs are removed while in the working
position.
• The lower threaded blocks on the compensation springs must be fully screwed in.
Pos: 94.30 /BA/Ei nstellungen/M ähwerke/EasyCu t/Entlastungsfe der(n)/Entlastu ngsfedern am Tr aktor einstell en Bild EC F 280/ 320/360 @ 136\mod_1352 878872691_7 8.docx @ 12 11577 @ @ 1

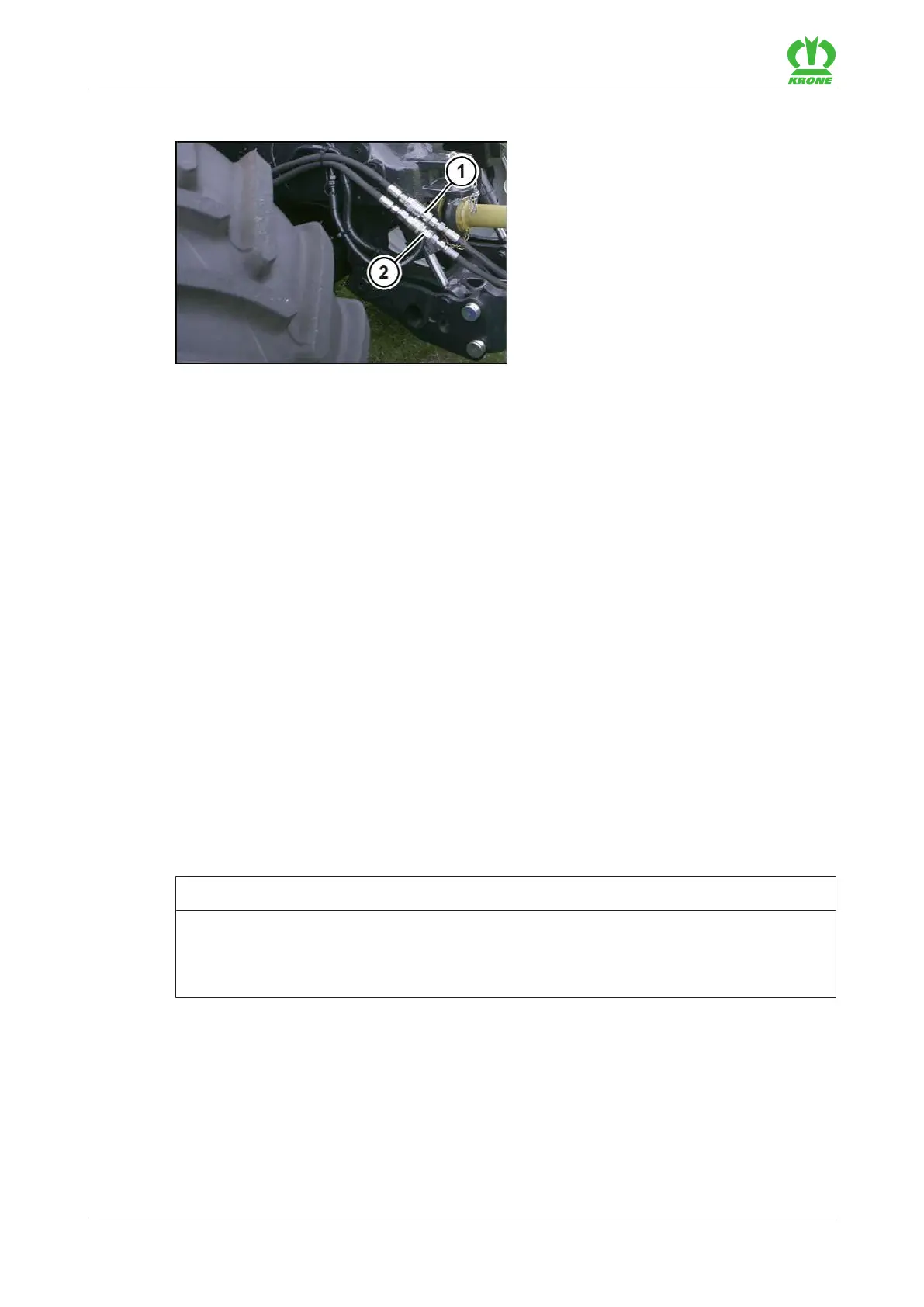

Fig.
19
Pos: 94.31 /BA/Ei nstellungen/M ähwerke/EasyCu t/Entlastungsfe der(n)/Entlast ungsfedern a m Traktor einstell en Text EC 28/32 28/32 CV @ 10\mod_1 221737190442_ 78.docx @ 1367 98 @ @ 1
• Bring the front mowing unit into the transport position
• Hook compensation spring (3) onto perforated bar (4).
• Attach with holder (2) on support point "a" and secure with hinged cotter pin (1)
Pos: 94.32 /BA/Ei nstellungen/M ähwerke/EasyCu t/Entlastungsfe der(n)/Einstelle n der Entlastungs federn am Tr aktor Maß 30 0-400 Hinweis @ 10\mod_1 22173743803 6_78.docx @ 136 841 @ @ 1
Note
Setting dimension of the compensation springs
Effect: Proper use of the machine.
The distance between support point "a" of the compensation spring (3) and the pivot point of
the tractor's lower suspension arms (5) should be between 300 – 400 mm.
Pos: 94.33 /BA/I nbetriebnahme/ EasyCut/Probel auf nach Erstm ontage @ 3\ mod_1205215 927275_78.docx @ 73555 @ 2 @ 1
7.7 Trial run after first installation
Caution!
After the first connection to the tractor, the machine must undergo a trial run.
• The machine must be in working position
• Do not switch on the PTO until the machine is resting on the ground and you are absolutely
sure that there are no persons, animals or objects in the danger zone.
• Start a trial run of the machine from the driver’s seat of the tractor only.
• Lower the machine into working position.
• Carefully switch in the PTO of the tractor.
• Slowly increase the PTO speed to 1000 rpm.
• Check that the machine is running smoothly and without vibrations.
• Reduce the PTO speed to idling and wait for the cutting discs / mower drums to come to a
stansdstill.
• Raise or lower the machine via the tractor hydraulics.
