10 Settings
Pos: 100.2 /BA/Sic herheit/7. G efahrenhinweise alt/Mähwerke/G efahr - Rep aratur_Wartung _Reinigungs_ 3 @ 0\mod_1196 660613260_7 8.docx @ 9153 @ @ 1
Danger! - When performing repair, maintenance or cleaning work on the machine , or in
the case of technical intervention, drive elements may start moving.
Effect: Danger to life, injuries or damage to the machine.
• Switch off the engine and remove the ignition key.
• Secure the machine against accidental start-up and against rolling!
• The cutter blades can continue to rotate after the drive has been switched off. Only
approach the machine once the work tools have come to a complete standstill!
• After completing maintenance work reattach all safety devices properly.
• Avoid skin contact with oil and grease.
• Seek medical help immediately should injuries caused by oil escaping under pressure
occur.
Pos: 100.3 /Übersc hriften/Überschrif ten 2/A-E/ EEinstellen d er Schnitthöhe @ 0\mod_11 96660879619_78. docx @ 9191 @ 2 @ 1

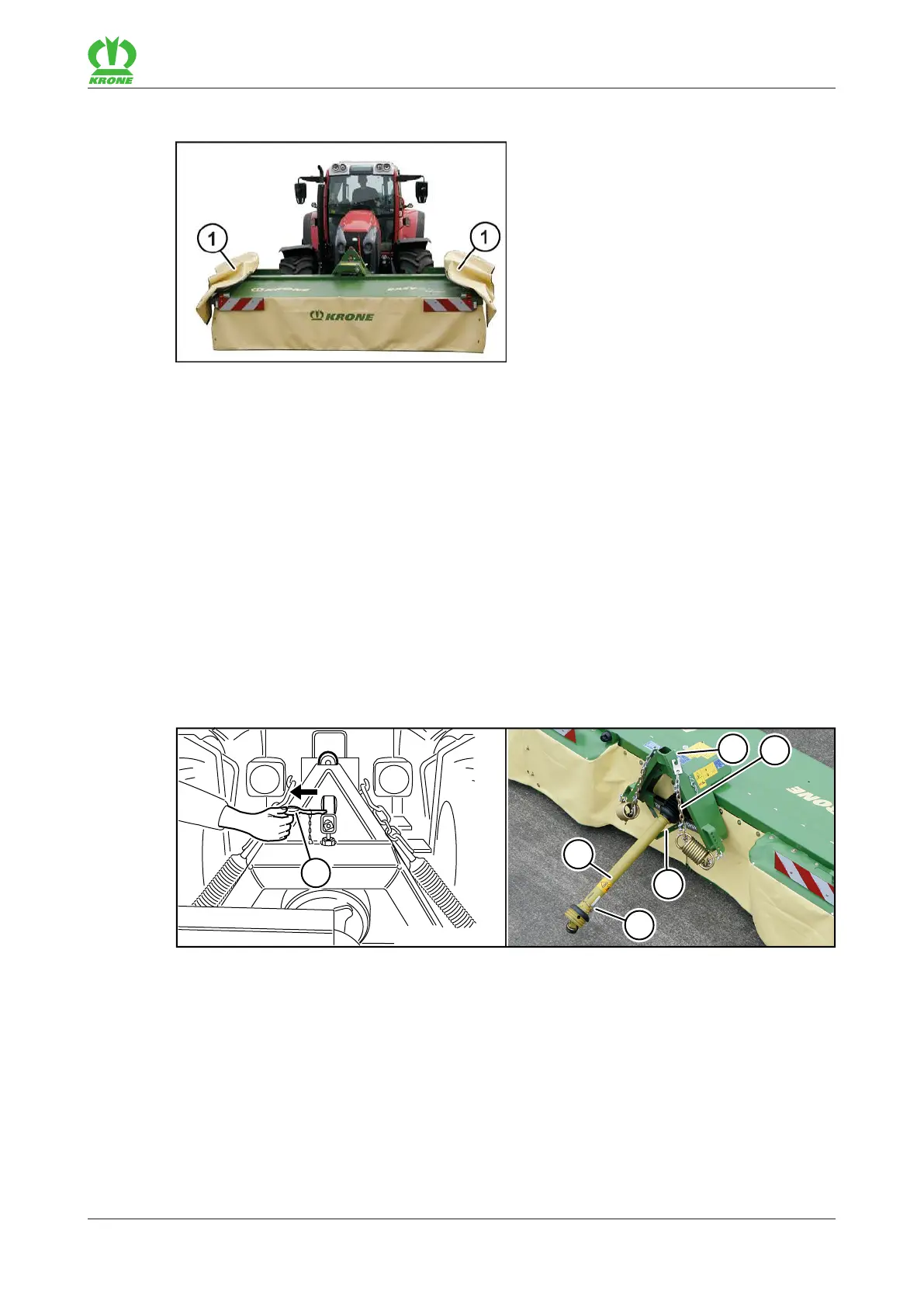

10.1 Adjusting the cutting height
Pos: 100.4 /BA/Ei nstellungen/M ähwerke/Schnit thöhe/Schnitthö he Bild EC 28/3 2 @ 10\mo d_122173880 3864_78.docx @ 136972 @ @ 1
1
Fig.
26
Pos: 100.5 /BA/Ei nstellungen/M ähwerke/Schnit thöhe/Schnitthö he größer_gering er @ 0\mo d_119666156 2478_78.docx @ 9269 @ @ 1
The cutting height is adjusted via the top link (1).
To do this:
• Lower the front mowing unit into working position
• Rotate the top suspension arm (1)
