Krone EasyCut F 360 - Mower Drive Gearbox

Maintenance - Gearbox
69
Pos: 124 /Übersc hriften/Überschrif ten 2/K-O/MM äherantriebsg etriebe @ 9\ mod_1221045 800746_78.docx @ 131475 @ 2 @ 1
12.4 Mower Drive Gearbox
Pos: 125 /Ab kürzungen /Abkürz ungen sprachne utral/EasyCut/E asyCut F 320 M / F 360 M @ 1 03\mod_13 32237563100 _0.docx @ 941 095 @ @ 1
(EasyCut F 320 M / EasyCut F 360 M)
Pos: 126 /BA/War tung/Hinweis Ölst andskontroll e in Arbeitsstellu ng und in waager echter Stellung der Maschine vornehmen @ 194\mo d_13835549737 54_78.docx @ 1 649577 @ @ 1
Note
Perform oil level check and oil change while the machine is in a horizontal position!
Pos: 127 /BA/War tung/Ölkontroll e_Wechsel/Mä hwerke/Bild Mä herantriebsgetri ebe EC F 320 @ 89\mod_ 13227357464 88_78.docx @ 76 6089 @ @ 1

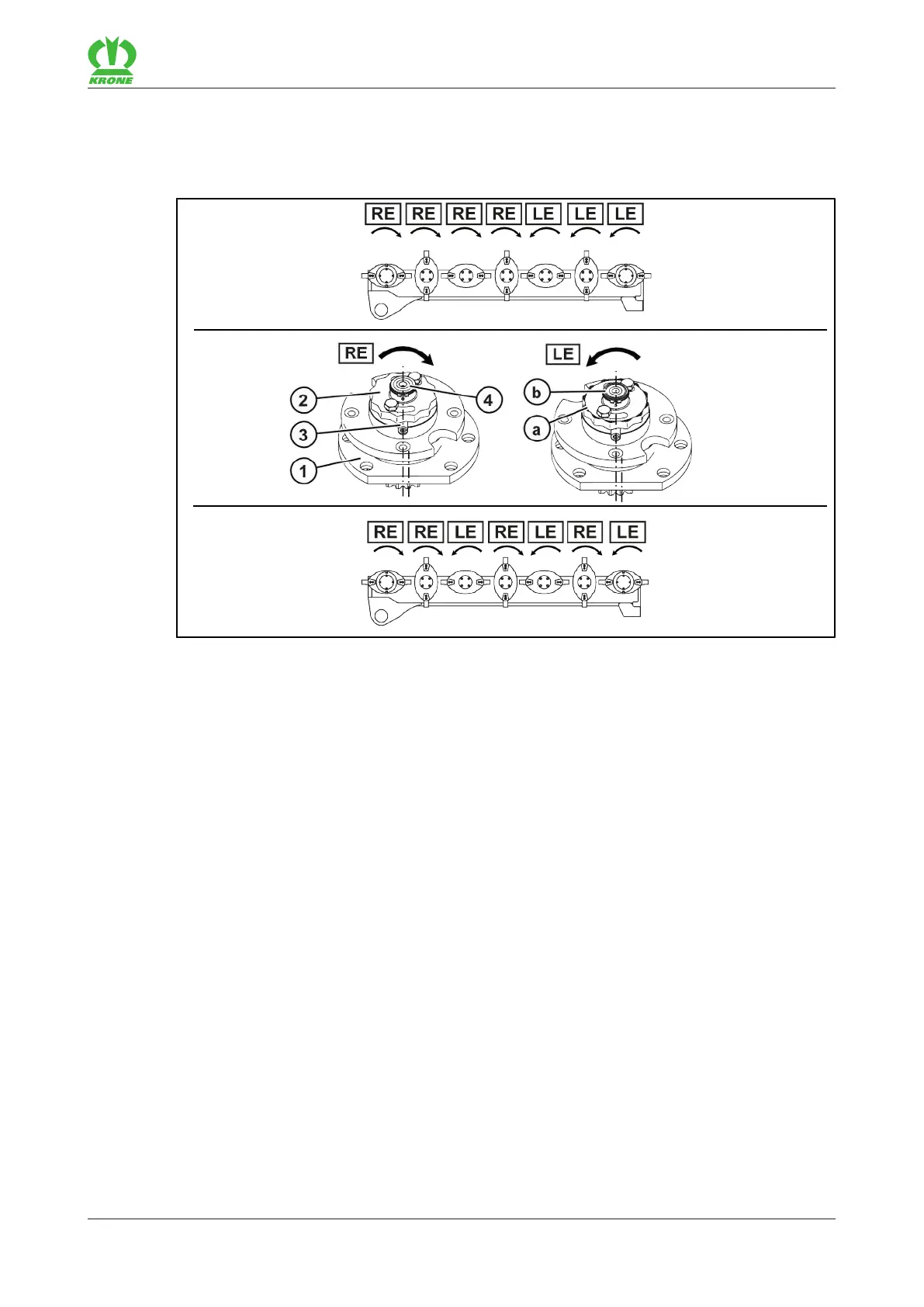

Fig.
37
Pos: 128 /BA/War tung/Ölkontroll e_Wechsel/Öl wechsel / Ölko ntrolle:Legende z u Grafik Kontrollsc hraube / Ablassschraub e / Einfüllschr aube @ 194\ mod_1383288259 662_78.doc x @ 1647783 @ @ 1
1)
Inspection screw / control hole
2)
Drain plug
3)
Filler plug / oil filling hole
Pos: 129 /BA/War tung/Ölkontroll e_WechselÖl kontrolle NEU ü ber Kontrollschra ube @ 140\ mod_13551417 53680_78.doc x @ 1244582 @ @ 1
Oil level check:
• Screw out inspection screw.
• Oil level up to control hole.
If the oil reaches the control hole:
• Screw in the inspection screw and tighten it securely.
If the oil does not reach the control hole:
• Screw out filler plug.
• Top up oil via oil filling hole until the control hole is reached.
• Screw in the inspection screw and the filler plug and tighten them securely.
Pos: 130 /BA/War tung/Ölkontroll e_WechselÖl wechsel NEU @ 140\mod_1355142057 277_78.doc x @ 1244610 @ @ 1
Oil change:
Collect escaping oil in a suitable container.
• Screw out oil drain plug and drain the oil.
• Screw out inspection screw and filler plug.
• Screw in oil drain plug and tighten it securely.
• Top up new oil via oil filling hole until the control hole is reached.
• Screw in the inspection screw and the filler plug and tighten them securely.
Pos: 131 /BA/War tung/Ölkontroll e_Wechsel/Hin weis - Altöl or dnungsge mäß entsorgen @ 0 \mod_1197008 117002_78.doc x @ 15550 @ @ 1
Note
The used oil must be disposed of correctly
