7.3 Mounting onto the Tractor
Pos: 60.10 /Übersc hriften/Überschri ften 3/K-O/Kuppelpunkt e @ 9\mod_1220531326398_7 8.docx @ 126608 @ 3 @ 1
7.3.1 Clutching points
Pos: 60.11 /BA/Er stinbetriebnahme/Easy Cut/Kuppelpunkte/ Kuppelpunkte Bild EC 280/ 320 CV-Q -1 @ 59\mod_129740924208 2_78.docx @ 557036 @ @ 1
EC-380-0
1
POS.1 POS.2 POS.3
Fig. 4
Pos: 60.12 /BA/Er stinbetriebnahme/Easy Cut/Kuppelpunkte/ Kuppelpunkte Text EC R 280/320 CV(CR) Kat II @ 194\mod_1383 551070550_78.doc x @ 1649333 @ @ 1

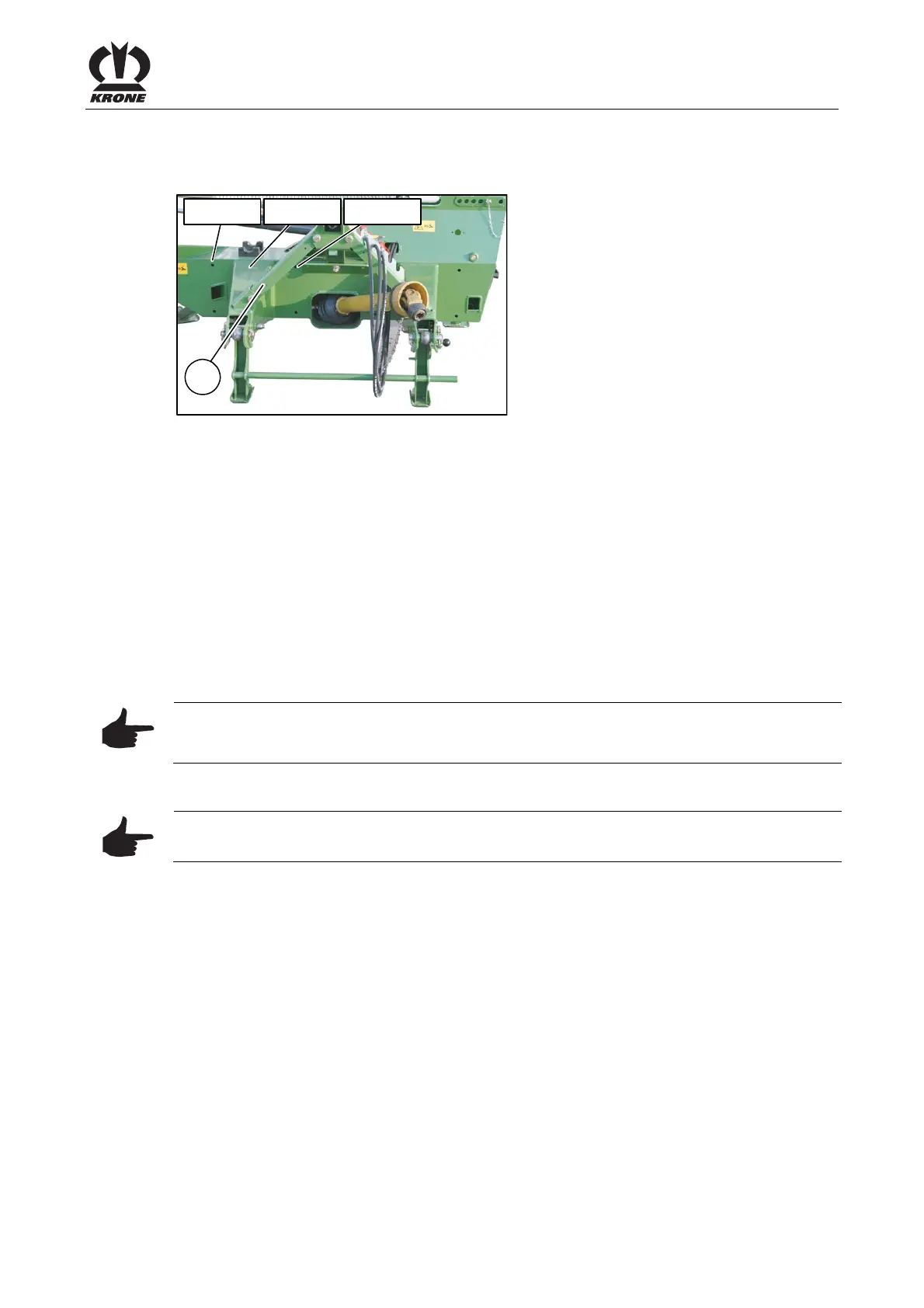

The mounting possibilities of the mowing unit are designed for Cat. II.
The mowing unit may additionally be moved by 150mm to the left or to the right for the
adjustment to the tractor width or to the overcut.
The three-point console is mounted as standard in the centre (position 2).
Mounting position 1:
– In case of front mower use with maximum overcut.
Mounting position 2:
– In case of standard tractor track with standard tyres with or without front mower use.
Position 3:
In case of a wide tractor track and/or wide tyres without front mower use.
Note
Observe the weight of the part when moving the three-point console.
Use safe lifting equipment.
Pos: 60.13 /BA/Er stinbetriebnahme/Easy Cut/Kuppelpunkte/ Hinweis Kuppelpunk te mit Drehmoment 210 Nm @ 93\mod_13 27650798973_78. docx @ 791225 @ @ 1
Note
Tighten the hexagonal nuts on the coupling points with a torque of 210 Nm.
