10.4 Swivelling parking support into transport position

Pos: 66.29 /BA/Bedienun g /EasyCut/Abste llstütze/Achtung Abst ellstütze eingeklap pt EC 280/320 CV-Q @ 10\mod_1221 637532743_78.doc x @ 135563 @ @ 1

Caution! - Parking support(s) not swivelled into transport position before road/transport

travel and for work!

Effect: Damage to the machine

• Make certain before road/transport travel and for work that the parking support(s) is/are

raised or folded in and secured in place with a bolt!

Pos: 66.30 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lstütze angehoben Bild EC R 280 CV / R 320 CV / R 280 CR / R 320 CR @ 205\mod_1386245162 750_78.docx @ 1706387 @ @ 1

EC-459-0

Fig. 16

Pos: 66.31 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lposition/Transpor tstellung @ 58\mod_1296 660164314_78.doc x @ 552939 @ @ 1

I) Parking position II) Transport position

Pos: 66.32 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lstütze in Transports tellung schwenken @ 12\mod_1 223983226897_78.doc x @ 149837 @ @ 1

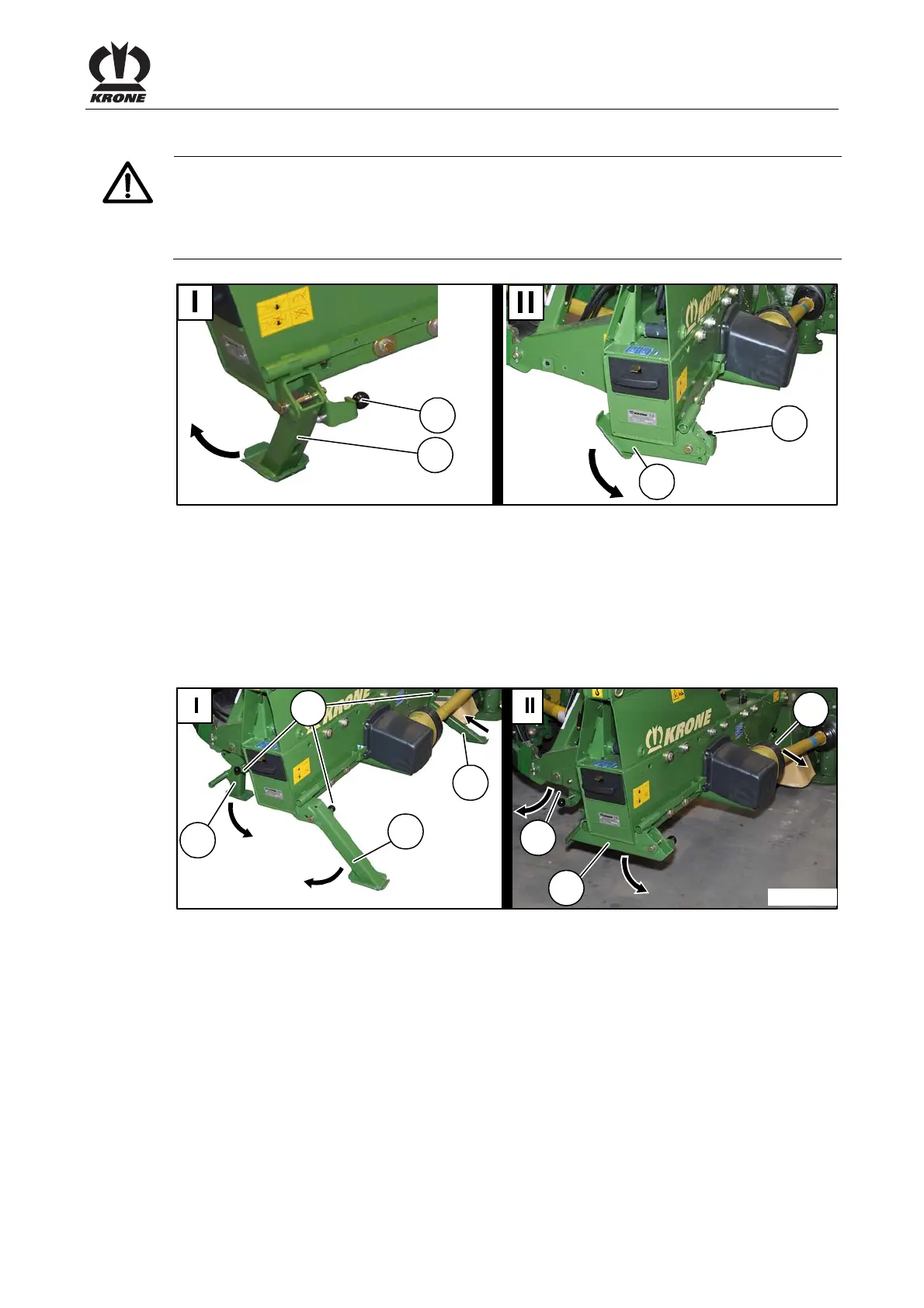

After the machine is attached, swivel the parking support into transport position.

• Use the three-point hydraulic system to raise the parking support somewhat.

• Swivel the parking support (2) into transport position and lock it in place with the bolt (1).

Pos: 66.33 /BA/Bedienun g /EasyCut/Abste llstütze/Vier Stützen ( optional) Übersc hrift @ 58\mod_1296816723 926_78.docx @ 554520 @ 3 @ 1

10.4.1 Four supports (optional)

Pos: 66.34 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lstütze eingeklappt Bi ld EC R 280/320 CV @ 206\mod_138666 8705828_78.doc x @ 1713345 @ @ 1

EC-360-1

Fig. 17

Pos: 66.35 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lposition/Transpor tstellung @ 58\mod_1296 660164314_78.doc x @ 552939 @ @ 1

I) Parking position II) Transport position

Pos: 66.36 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lstütze in Transports tellung schwenken ( vier Stützen) @ 206\mod_13866 69647388_78.doc x @ 1713374 @ @ 1

• Raise the machine via three-point hydraulics until the parking supports can be swivelled.

• Swivel the parking support front (1) back and lock it via bolt (4).

• Swivel the parking support rear (2) to the front and lock it via bolt (4).

• Insert the parking support rear (3) completely and lock it via bolt (4).
