Krone EasyCut R 360 - Deviating Torque; Metric Thread Screws with Countersunk Head and Hexagonal Socket; Metric Thread Screws with Fine Thread

Maintenance
51
Pos: 71.13.5 /Überschr iften/Überschr iften 3/K-O/Metrisc he Gewindeschrauben mi t Feingewinde @ 322\mod_1424 945855944_78.doc x @ 2484627 @ 3 @ 1

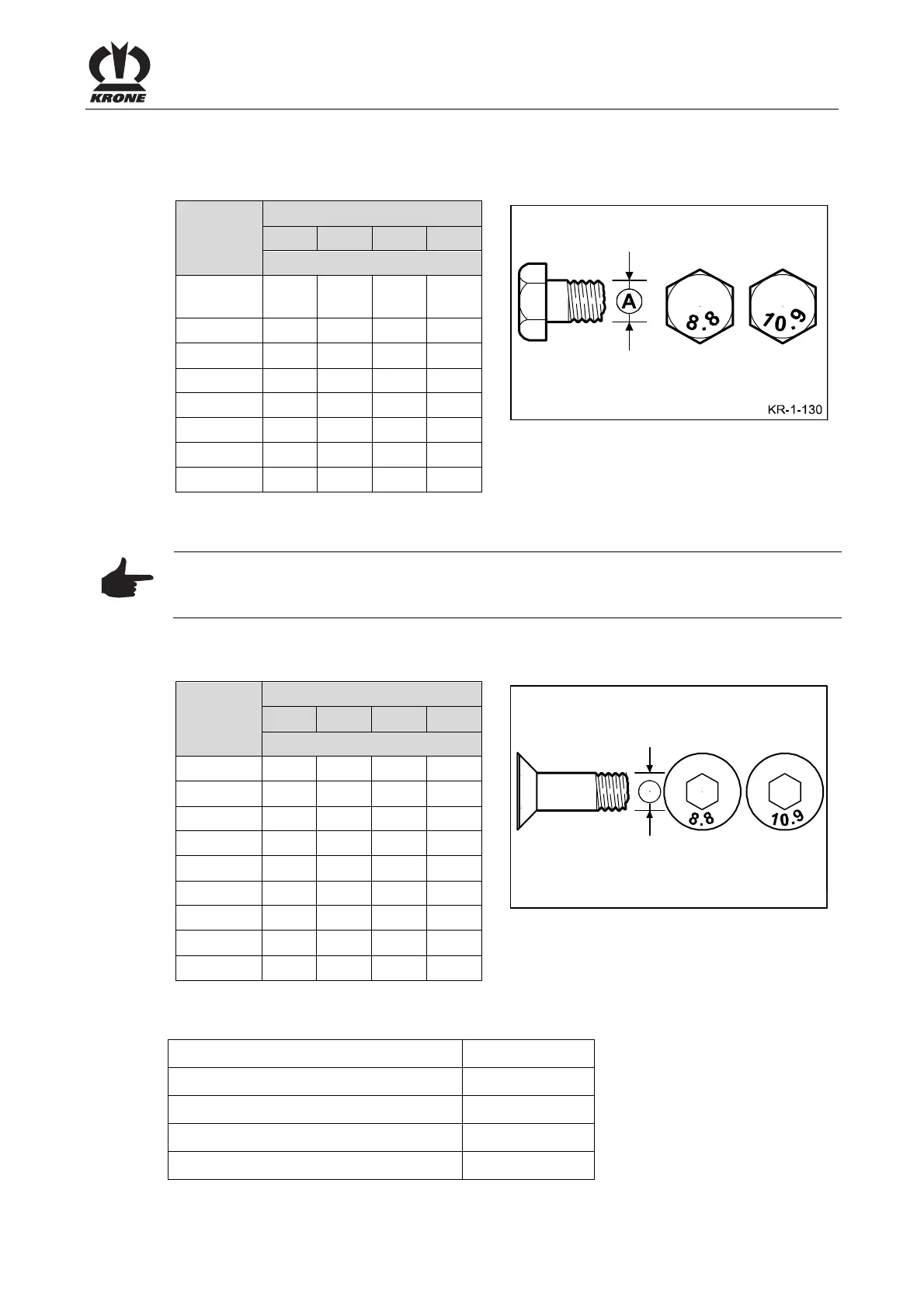

12.4.2 Metric Thread Screws with Fine Thread
Pos: 71.13.6 /BA/W artung/Drehmomente / Anzi ehdrehmomente/Anzi ehdrehmomente Metrisc he Gewindeschrauben mit Feingewinde Tabell e @ 321\mod_1424845229172 _78.docx @ 2480186 @ @ 1
Tightening torque in Nm (unless
otherwise stated)
A = thread size
(stability class can be seen on screw head)
A
Stability class
5.6 8.8 10.9 12.9
Tightening torque (Nm)
M12 x
1.5:
88 130 152
M14 x 1.5 145 213 249
M16 x 1.5 222 327 382
M18 x 1.5 368 525 614
M20 x 1.5 465 662 775
M24 x 2 787 1121 1312
M27 x 2 1148 1635 1914
M30 x 1.5 800 2100 2650
Pos: 71.13.7 /Überschr iften/Überschr iften 3/K-O/Metrisc he Gewindeschrauben mi t Senkkopf und Innensechs kant @ 323\mod_142494597 0760_78.docx @ 2484818 @ 3 @ 1
12.4.3 Metric Thread Screws with Countersunk Head and Hexagonal Socket
Pos: 71.13.8 /BA/W artung/Drehmomente / Anzi ehdrehmomente/Anzi ehdrehmomente Metrisc he Gewindeschrauben mit Senkkopf und Innensec hskant Tabelle @ 321\mod_1 424843938347_78.d ocx @ 2480155 @ @ 1
NOTICE
The table applies only to countersunk screws with hexagonal socket and metric thread which
are tightened via hexagonal socket.
Tightening torque in Nm (unless
otherwise stated)
A = thread size
(stability class can be seen on screw head)
A
Stability class
5.6 8.8 10.9 12.9
Tightening torque (Nm)
M4 2.5 3.5 4.1
M5 4.7 7 8
M6 8 12 15
M8 20 29 35
M10 23 39 58 67
M12 34 68 100 116
M14 108 160 188
M16 168 248 292
M20 340 488 568
Pos: 71.14 /Übersc hriften/Überschri ften 3/A-E/A/Abweichend es Drehmoment @ 0\mod_119 6950054171_78.doc x @ 15312 @ 3 @ 1
12.4.4 Deviating Torque
Pos: 71.15 /BA/W artung/Drehmomente / Anziehdr ehmomente/Abweic hendes Drehmoment EasyCut @ 3\ mod_1204885737515_78. docx @ 73465 @ @ 1
Screws / nuts MA [Nm]
Nut for cutting disc flange 850
Nut for shear protection (rotary hub) 300
Bearing housing for cutting disc 50
Bearing housing for blade drum 50
