Commissioning
26
Pos: 60.15 /Übersc hriften/Überschri ften 2/F-J/Gelenkwel le @ 0\mod_1199781879794_ 78.docx @ 34542 @ 2 @ 1
7.4 PTO shaft
Pos: 60.16 /Übersc hriften/Überschri ften 3/K-O/Längenanpa ssung @ 1\mod_12016876328 10_78.docx @ 53589 @ 3 @ 1
7.4.1 Length adjustment
Pos: 60.17 /BA/Sic herheit/6. Überarbeite te Warnhinweise/W arnung - Unbeabsichtig tes Abkuppeln angebaute @ 291\ mod_141042725386 6_78.docx @ 2294307 @ @ 1
Danger! - Inadvertent uncoupling of the machine during road travel or work.
Effect: Danger to life, serious injuries or serious damage to the machine.
• Use extreme caution when attaching or detaching devices to or from the tractor! The
accident prevention regulations must be complied with absolutely.
• The lower suspension arms on the tractor must be fixed in position
with the retaining chains or bars to prevent the machine from swivelling out during transport
or work. If the lower suspension arms (1) are equipped with catch hooks, the following
items must be taken into consideration:
Especially in the headland position, high forces develop in the lower suspension arm bolts (3)
that act upwards in the left-hand hook.
For this reason, the catch hooks must be in a flawless condition.
Additionally, the catch hooks must be secured in the provided locking hole (4) against
unwanted opening after the machine has been connected to the tractor.
Pos: 60.18 /BA/Er stinbetriebnahme/Easy Cut/Ankuppeln Bild EC 280/ 320 CV-Q -1 @ 59\mod_1297409 356515_78.docx @ 557090 @ @ 1

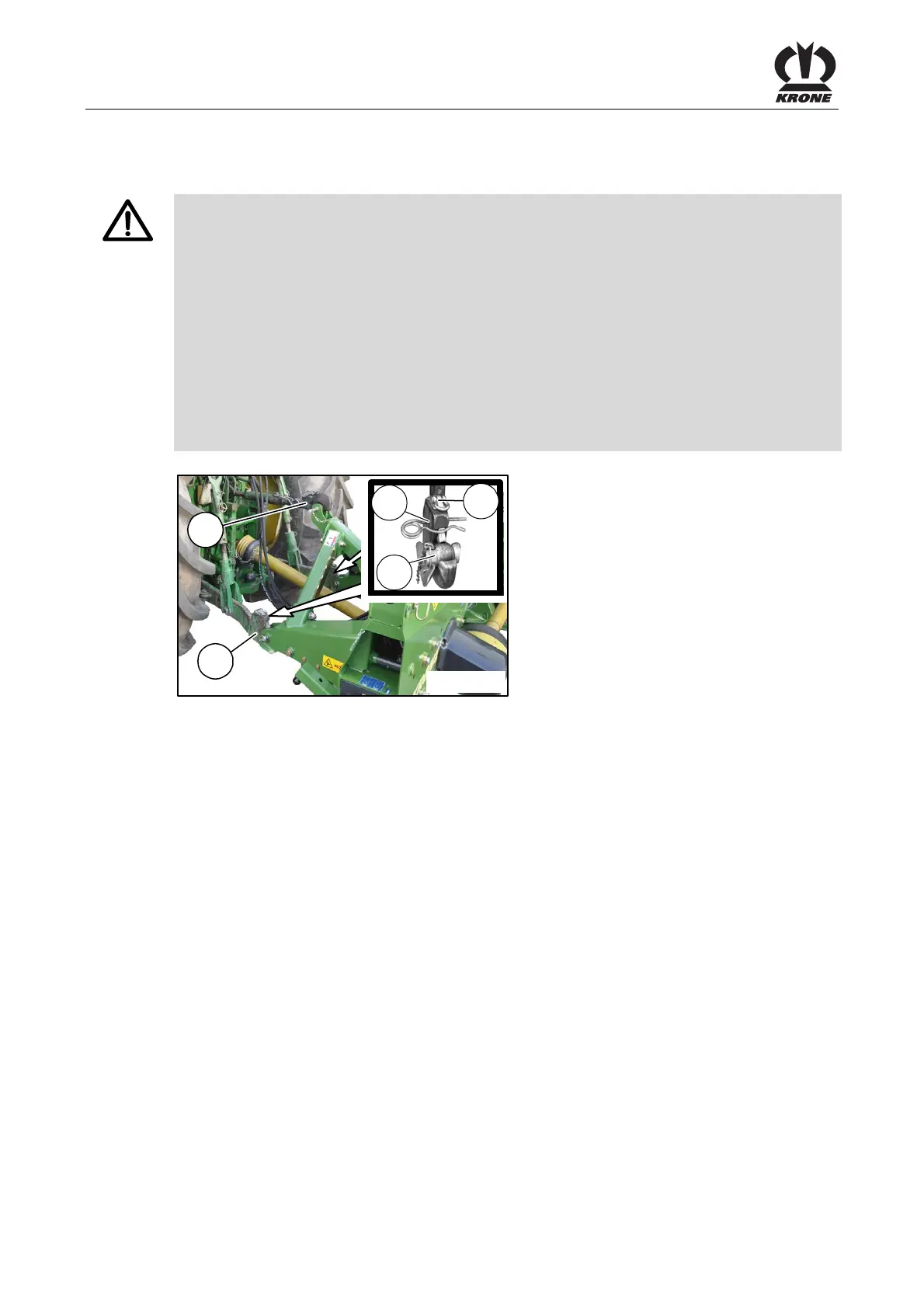

EC-357-0
1
2
3
4
1
Fig. 5
Pos: 60.19 /BA/Er stinbetriebnahme/Easy Cut/Ankuppeln Text EC 28 0/320 (280/320CV-Q) @ 9\ mod_1220537421383_78. docx @ 126948 @ @ 1
• Attach the machine onto the lower suspension arm (1) of the tractor.
• Hook the top link (2) into the upper hole of the 3-point support.
