Maintenance - Gearbox

Pos: 80.1 /Überschri ften/Überschri ften 2/K-O/Ölstandskon trolle und Ölwechsel a m Mähholm @ 0\mod_1197017549 815_78.docx @ 15963 @ 2 @ 1

13.3 Oil level check and oil change on the cutter bar

Pos: 80.2 /Überschri ften/Überschri ften 3/K-O/Ölwechsel @ 0\mo d_1197021941955_78.doc x @ 16139 @ 3 @ 1

13.3.1 Oil change

Pos: 80.3 /BA/War tung/Mähwerke/Hinweis Ei n Ölwechsel am Mähholm ist nic ht erforderlich. @ 68\mod_1304577391388_78. docx @ 628708 @ @ 1

Note

No oil change is required on the cutter bar.

Pos: 80.4 /Überschri ften/Überschri ften 3/K-O/Ölkontrol le @ 0\mod_1197021908190 _78.docx @ 16120 @ 3 @ 1

13.3.2 Checking the oil level

Pos: 80.5 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ Gefahr - Schnell rotier ende Messerteller/ Messertrommel_2 @ 0\mod_11 97022569252_78.doc x @ 16165 @ @ 1

Danger! - Rapidly rotating cutting discs/blade drums.

Effect: Danger to life or serious injuries.

Lower guards. Nobody should be in the danger zone around the machine.

Pos: 80.6 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ Gefahr - Schnell rotier ende Messerteller/ Messertrommeln_1 @ 0\mod_1 197017696736_78.doc x @ 16001 @ @ 1

Danger! - Rapidly rotating cutting discs/blade drums.

Effect: Danger to life or serious injuries.

• Switch off the engine and remove the ignition key.

• The cutting discs/blade drums continue to run!

• Do not leave the driver’s cab until the cutting discs/blade drums have come to a complete

stop.

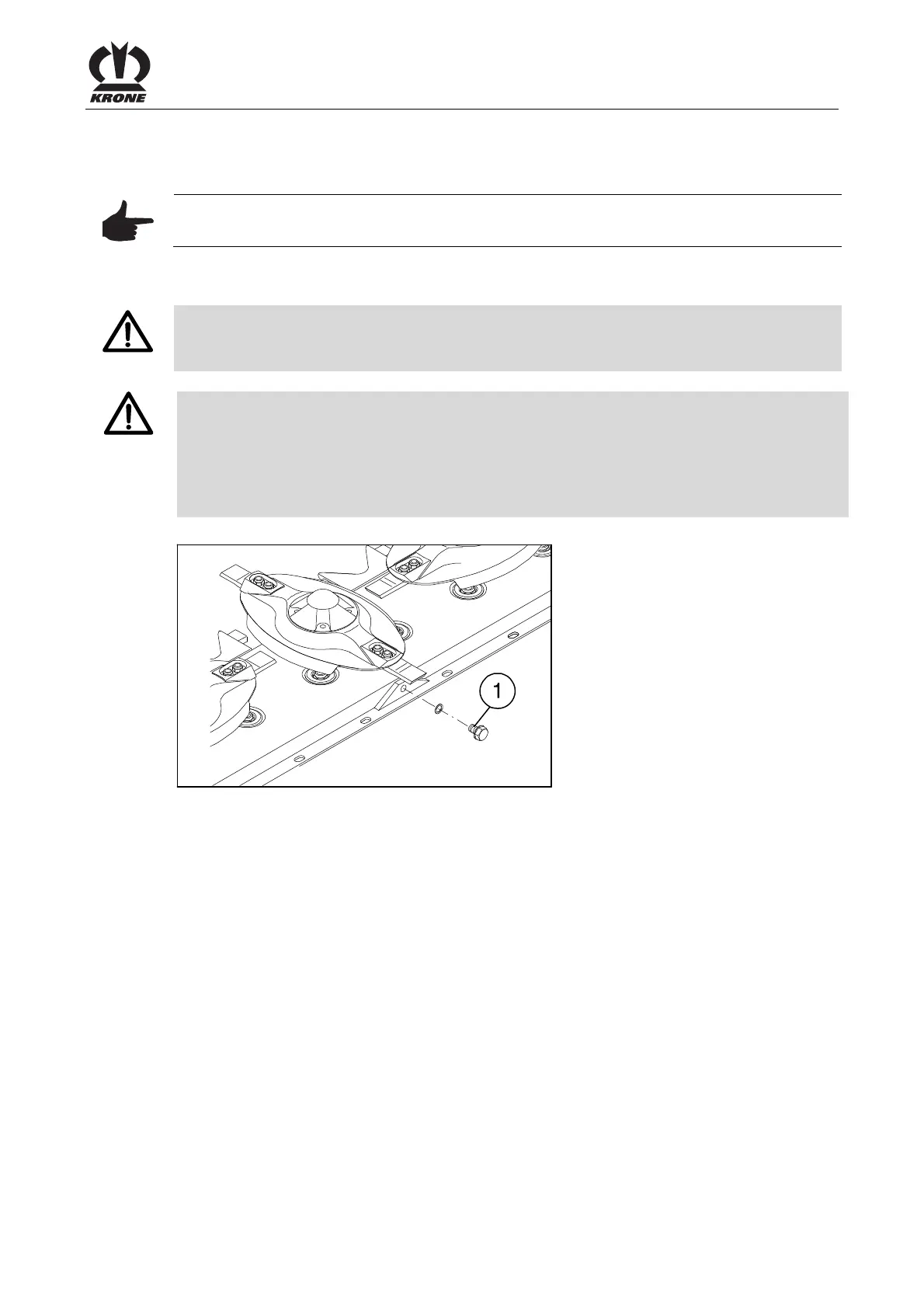

Pos: 80.7 /BA/War tung/Mähwerke/Ölkontr olle Mähholm Easycut EC 280/ 320 @ 9\mod_1221047992481 _78.docx @ 131607 @ @ 1

EC-0-003

Fig. 31

• Allow the machine to run briefly.

• Wait until cutting discs/blade drums have come to a complete stop.

• Move the cutter bar into transport position.
