Start-up

Pos: 62.35 /Übersc hriften/Überschri ften 2/A-E/Abstells tütze in Transportste llung schwenken @ 10\mod_ 1221637347634_78. docx @ 135539 @ 2 @ 1

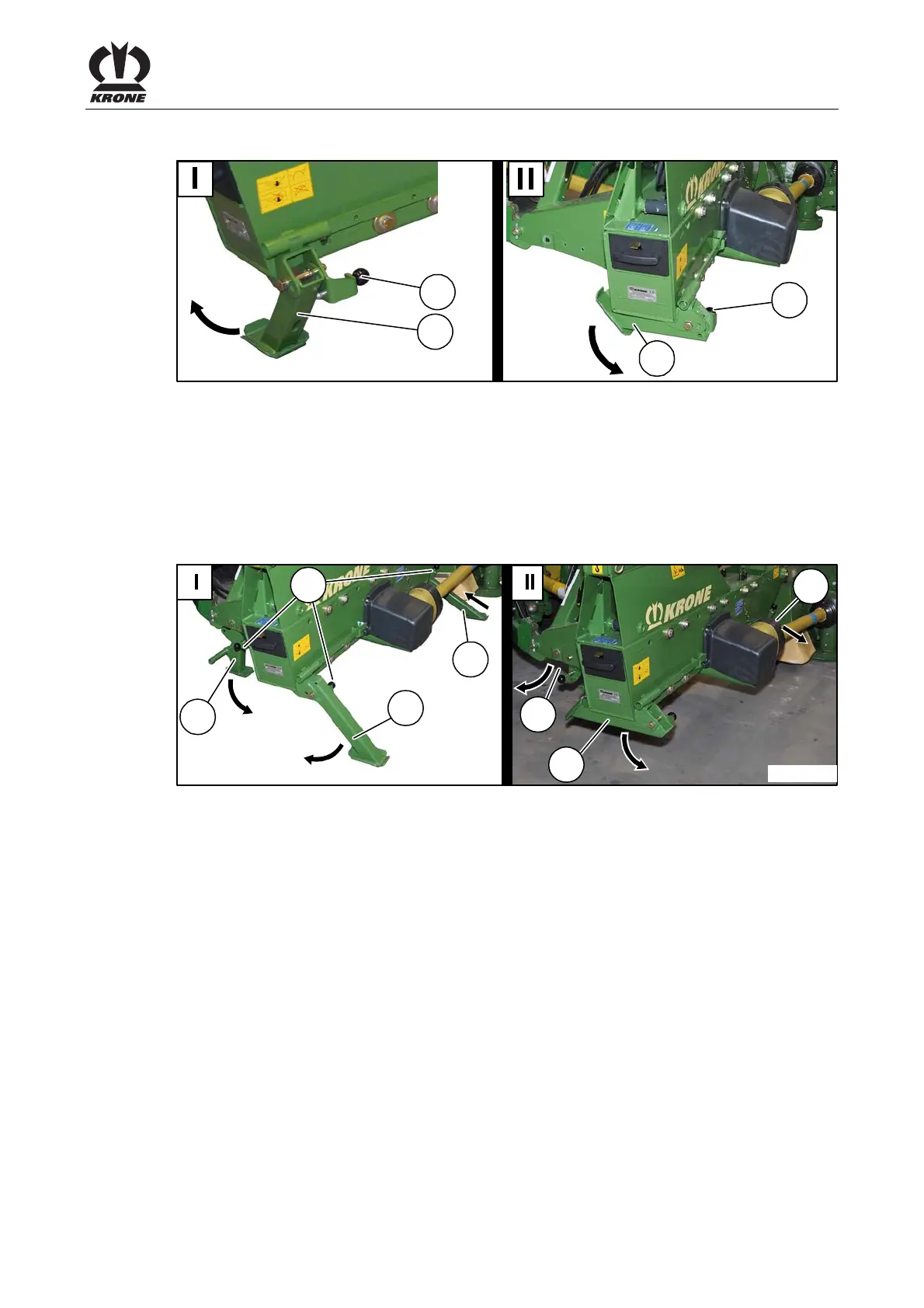

8.5 Swivelling parking support into transport position

Pos: 62.36 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lstütze angehoben Bild EC R 280 CV / R 320 CV / R 280 CR / R 320 CR @ 205\mod_1386245162 750_78.docx @ 1706387 @ @ 1

EC-459-0

Fig. 11

Pos: 62.37 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lposition/Transpor tstellung @ 58\mod_1296 660164314_78.doc x @ 552939 @ @ 1

I) Parking position II) Transport position

Pos: 62.38 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lstütze in Transports tellung schwenken @ 12\mod_1 223983226897_78.doc x @ 149837 @ @ 1

After the machine is attached, swivel the parking support into transport position.

• Use the three-point hydraulic system to raise the parking support somewhat.

• Swivel the parking support (2) into transport position and lock it in place with the bolt (1).

Pos: 62.39 /BA/Bedienun g /EasyCut/Abste llstütze/Vier Stützen ( optional) Übersc hrift @ 58\mod_1296816723 926_78.docx @ 554520 @ 3 @ 1

8.5.1 Four supports (optional)

Pos: 62.40 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lstütze eingeklappt Bi ld EC R 280/320 CV @ 206\mod_138666 8705828_78.doc x @ 1713345 @ @ 1

EC-360-1

Fig. 12

Pos: 62.41 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lposition/Transpor tstellung @ 58\mod_1296 660164314_78.doc x @ 552939 @ @ 1

I) Parking position II) Transport position

Pos: 62.42 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lstütze in Transports tellung schwenken ( vier Stützen) @ 206\mod_13866 69647388_78.doc x @ 1713374 @ @ 1

• Raise the machine via three-point hydraulics until the parking supports can be swivelled.

• Swivel the parking support front (1) back and lock it via bolt (4).

• Swivel the parking support rear (2) to the front and lock it via bolt (4).

• Insert the parking support rear (3) completely and lock it via bolt (4).
