Operation
36
Pos: 66.7 /Überschri ften/Überschri ften 3/P-T/SSchutzeinr ichtung herunterk lappen @ 9\mod_122088107 9079_78.docx @ 128594 @ 3 @ 1
10.2.1 Folding down the Safety Device
Pos: 66.8 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ Gefahr - Fortschleuder n von Steinen @ 84\mod_13183 11844997_78.docx @ 73343 5 @ @ 1
DANGER! – Stones forcibly projected during operation
Effect: Danger to life or serious injuries.
• Check the guard cloths regularly. Worn or damaged guard cloths must be replaced!
• The protective equipment on the mowing unit, e.g. cloths and hoods, protects against flying
stones and similar objects, and also prevents access to dangerous parts. Because of this,
you must always move it to its protective position before starting work
• Fold the side plate(s) down and secure with twist locks before use
Pos: 66.9 /BA/Bedienung / EasyCut/Schutze/S chutzeinrichtung h erunterklappen Bi ld EC R 280/320 @ 207\mod_1386830 558135_78.doc x @ 1717077 @ @ 1

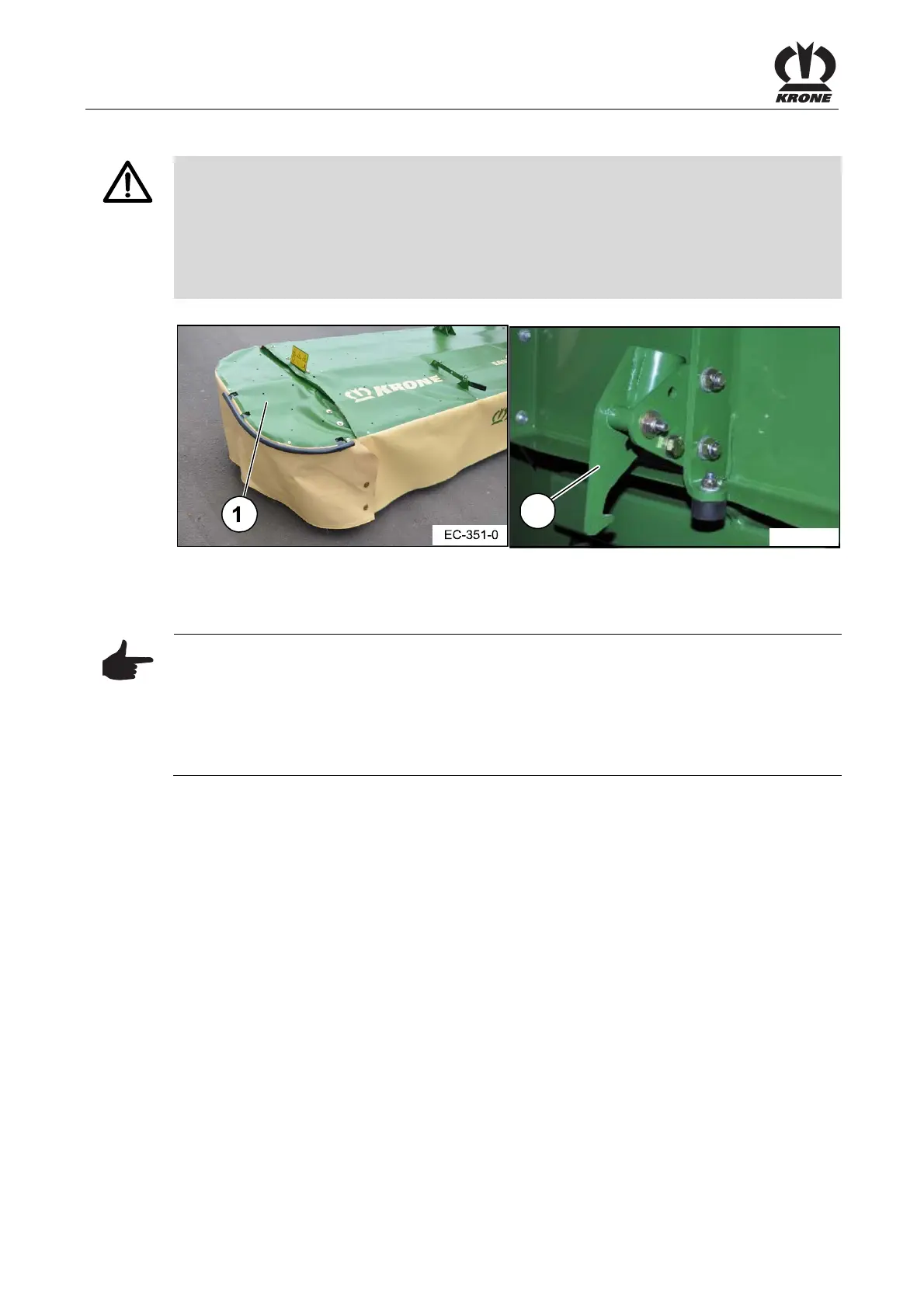

EC-401-0
2
Fig. 14
Pos: 66.10 /BA/Bedienun g /EasyCut/Schutz e/Hinweis Schutzeinri chtung herunterkl appen Text EasyCut Heck @ 91\mod _1326102221529_78. docx @ 776946 @ @ 1
Ensure before use that the side panel (1) of the machine is folded down and that it is secured by
the locking (2). Adjust the locking, if necessary (refer to chapter Settings “Adjust Locking”).
Note
The side panel (1) and the locking (2) must be adjusted in that way that
• the side panel folds down independently when swivelling the machine from transport
position to working position and that it is secured by the locking (2)
• the side panel (1) slides independently from the locking when swivelling the machine from
working position to transport position and that the side panel is folded over to transport
position. Thus the transport height is reduced.
