Krone EasyCut R 360 User Manual

Operation
42
Pos: 66.48 /BA/Bedienun g /EasyCut/Abste llstütze/Vier Stützen ( optional) Übersc hrift @ 58\mod_1296816723 926_78.docx @ 554520 @ 3 @ 1
10.5.1 Four supports (optional)
Pos: 66.49 /BA/Bedienun g /EasyCut/Abste llstütze/Achtung Ki ppgefahr @ 58\mod_12970 65492192_78.docx @ 554954 @ @ 1
CAUTION! Danger of tipping
Machine may be lowered into transport position only with additionally attached parking supports
on a firm and level base (concrete/paving).
Pos: 66.50 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lstütze eingeklappt Bi ld EC R 280/320 CV @ 206\mod_138666 8705828_78.doc x @ 1713345 @ @ 1
2
1
3
4
2
3
1
EC-360-1

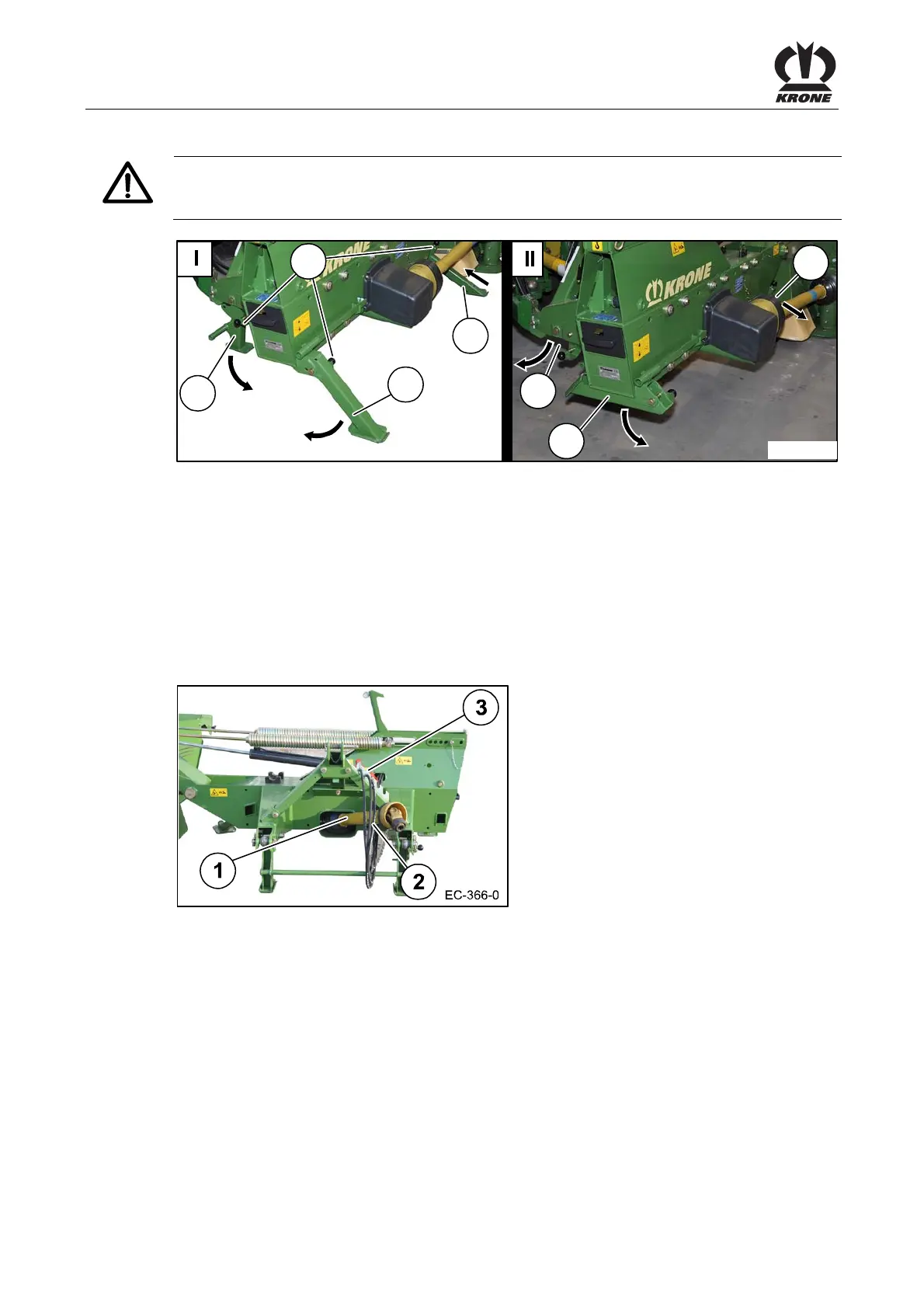

Fig. 20
Pos: 66.51 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lposition/Transpor tstellung @ 58\mod_1296 660164314_78.doc x @ 552939 @ @ 1
I) Parking position II) Transport position
Pos: 66.52 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lstütze herunterlass en (4Stützen) Text @ 206\ mod_1386670995344_78. docx @ 1713462 @ @ 1
With “four supports” option, the mowing unit can be put down both in working position
and in transport position.
• Swivel down parking support front (1) and secure with bolt (4).
• Swivel down parking support rear (2) and secure with bolt (4).
• Completely push out the parking support rear (3) and secure with bolt (4).
• Lower the machine via tractor hydraulics onto the ground.
Pos: 66.53 /BA/Bedienun g /EasyCut/Gelenk welle/Gelenkwelle / Hydraulikschlauch abku ppeln Bild EC 280/320 CV- Q -1 @ 59\mod_1297422227444_78. docx @ 557726 @ @ 1
Fig. 21
Pos: 66.54 /BA/Bedienun g /EasyCut/Gelenk welle/Gelenkwelle / Hydraulikschlauch abku ppeln Text EC 280/320 CV- Q -1 @ 60\mod_1297853021474_78. docx @ 561499 @ @ 1
• Remove the cardan shaft (1) from the tractor and place on storage surface (2).
• Disconnect the hydraulic hoses (3) from the tractor (fit dust caps) and insert into the support
on the machine provided for this purpose.
• Release the suspension arm and pull out the bolt on the machine side or unhook the
suspension arm.
• Pull out the lower suspension arm / release the catch hook
Pos: 67 /Layout Module /---------------Seitenumbruch---------------- @ 0\mod_1196175311226_0.docx @ 4165 @ @ 1
