15 Maintenance – lubrication chart
Pos: 86.2 /Überschri ften/Überschri ften 2/P-T/Spezielle Sic herheitshinweise @ 0\ mod_1196660495760_78. docx @ 9134 @ 2 @ 1
15.1 Special Safety Instructions
Pos: 86.3 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ Gefahr - Reparatur_W artung_Reinigungs_4 al lgemein EasyCut (2014- 09-17 10:10:25) @ 11\ mod_1223620198301_78.d ocx @ 148349 @ @ 1
Danger! - When performing repair, maintenance or cleaning work on the machine, or in
the case of technical intervention, drive elements may start moving (caution, the cutting
discs continue to run).
Effect: Danger to life, injuries or damage to the machine.
• Move the machine to the working position and lower it to the ground
• Switch off the tractor engine and remove the ignition key.
• Secure the tractor against accidental start-up and against rolling.
• Switch off the PTO and disengage it.
• After repair, maintenance, cleaning work or technical modifications are complete, mount all
protective coverings and safety devices again properly.
• Avoid skin contact with oils, greases, cleaning agents and solvents.
• In the event of injuries or burns due to oils, cleaning agents or solvents, contact a doctor
immediately.
• All other safety instructions must also be followed to avoid injuries and accidents.
Pos: 86.4 /Überschri ften/Überschri ften 2/F-J/Gelenkwell e @ 0\mod_1199781879794_7 8.docx @ 34542 @ 2 @ 1
15.2 PTO shaft
Pos: 86.5 /BA/War tung/Gelenkwelle schmieren/ Abschmieren Gelen kwelle EasyCut 100 h / 250 h @ 44\ mod_1275544870187_78. docx @ 392086 @ @ 1

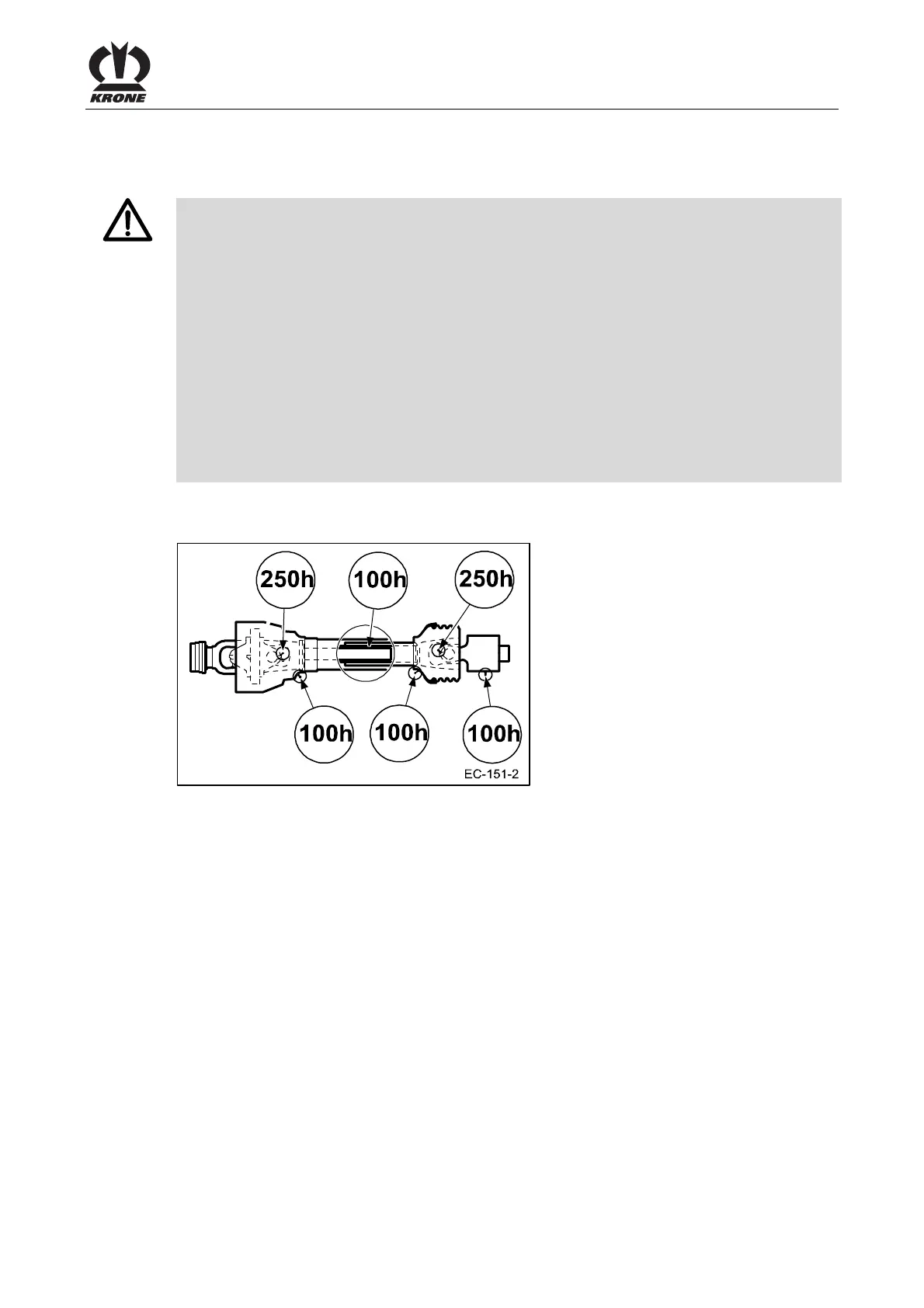

Fig. 43
Lubricate the PTO shafts at the intervals indicated in the drawing with a multi-purpose grease.
Follow the operating instructions of the PTO shaft manufacturer.
