17.3 Friction Clutch
Pos: 88.13 /BA/Sic herheit/Reibkupplung/ Achtung - Manipulatio n an der Reibkupplung @ 3\ mod_1204732138258_78. docx @ 72825 @ @ 1
Caution! - Manipulation of the friction clutch
Effect: Serious damage to the machine
• Manipulation of the overload protection changes the slip torque. This will lead to a loss of
warranty claims! Original KRONE spare parts only may be used.
Pos: 88.14 /BA/Einlager ung/Reibkupplung/ Reibkupplung entl üften @ 3\mod_12047322 97351_78.docx @ 72885 @ @ 1
EC-257-0
1
2

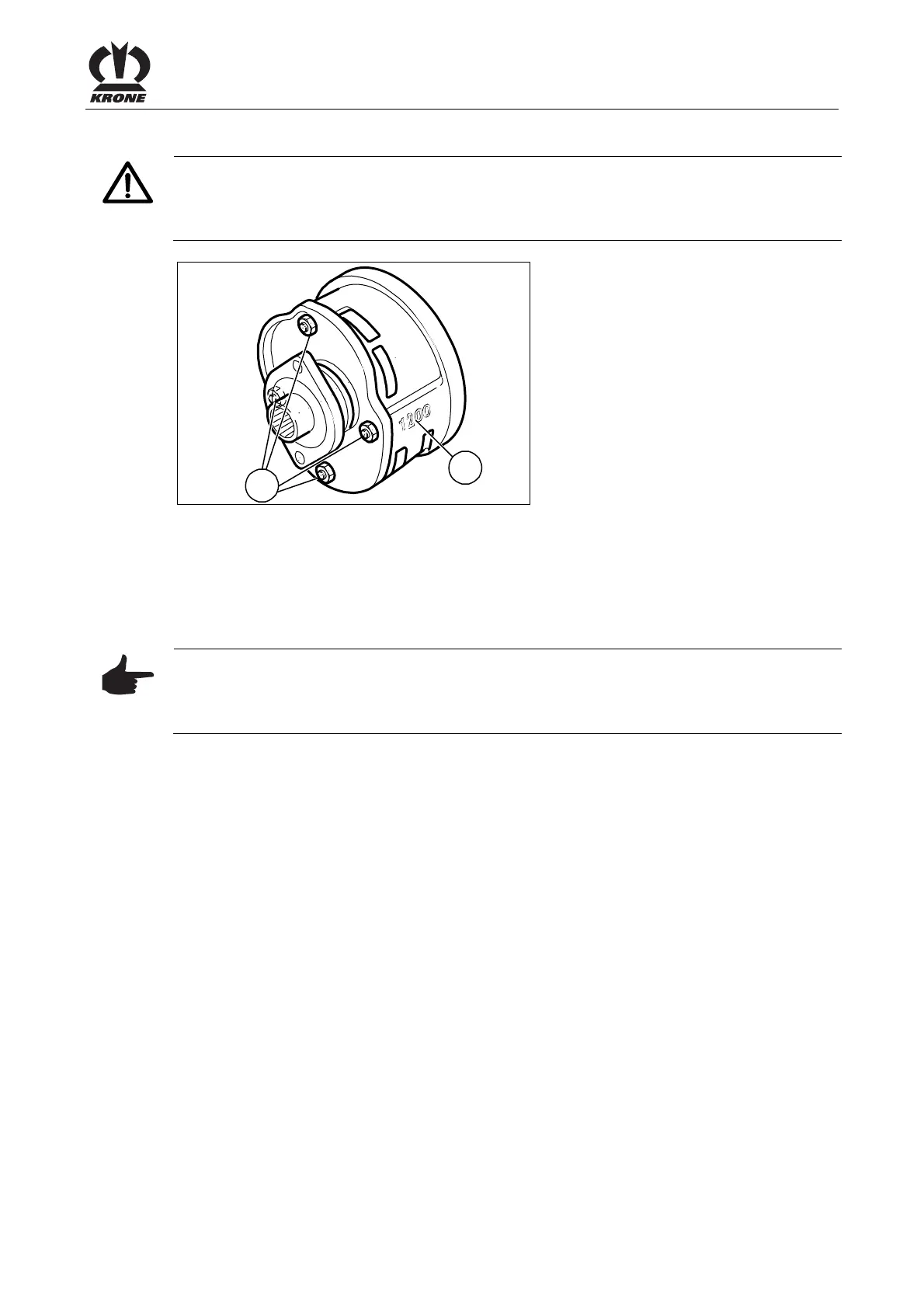

Fig. 45
The friction clutch protects the tractor and the machine against damage. It is designed with a
permanently adjusted turning torque M
R. The torque is applied on the housing of the friction
clutch (2).
Venting the friction clutch
Tighten the four nuts (1). Block the machine and move the friction clutch manually to the point
where it slips through. Loosen the nuts again.
Pos: 88.15 /BA/Inbetr iebnahme/EasyCut/ Hinweis Reibkupplung @ 11\mod_1223358975938 _78.docx @ 145593 @ @ 1
Note - Friction Clutch
Effect: Conserve functionality and increased service life
• The friction clutch (2) must be vented prior to commissioning and once a year prior to
harvesting. (See section Before the Start of the New Season "Friction clutch")
