Maintenance - Gearbox
56
Pos: 75 /Überschrif ten/Überschrif ten 1/U-Z/Wartung - Getriebe @ 2\ mod_1203058202823_78. docx @ 64495 @ 1 @ 1
13 Maintenance - Gearbox
Pos: 76.1 /Überschri ften/Überschri ften 2/F-J/Hauptgetriebe @ 0\mod_119700574003 3_78.docx @ 15416 @ 2 @ 1
13.1 Main gearbox
Pos: 76.2 /BA/War tung/Hinweis Ölstandsk ontrolle in Arbeitsste llung und in waagerecht er Stellung der Maschi ne vornehmen @ 194\mod_138355 4973754_78.doc x @ 1649577 @ @ 1
Note
Perform oil level check and oil change while the machine is in a horizontal position!
Pos: 76.3 /BA/War tung/Ölkontrolle_Wec hsel/Mähwerke/Bi ld Hauptgetriebe EC 280/320 C V-Q -1 @ 60\mod_1297751121997 _78.docx @ 560221 @ @ 1
3
EC-381-0
2
4
1

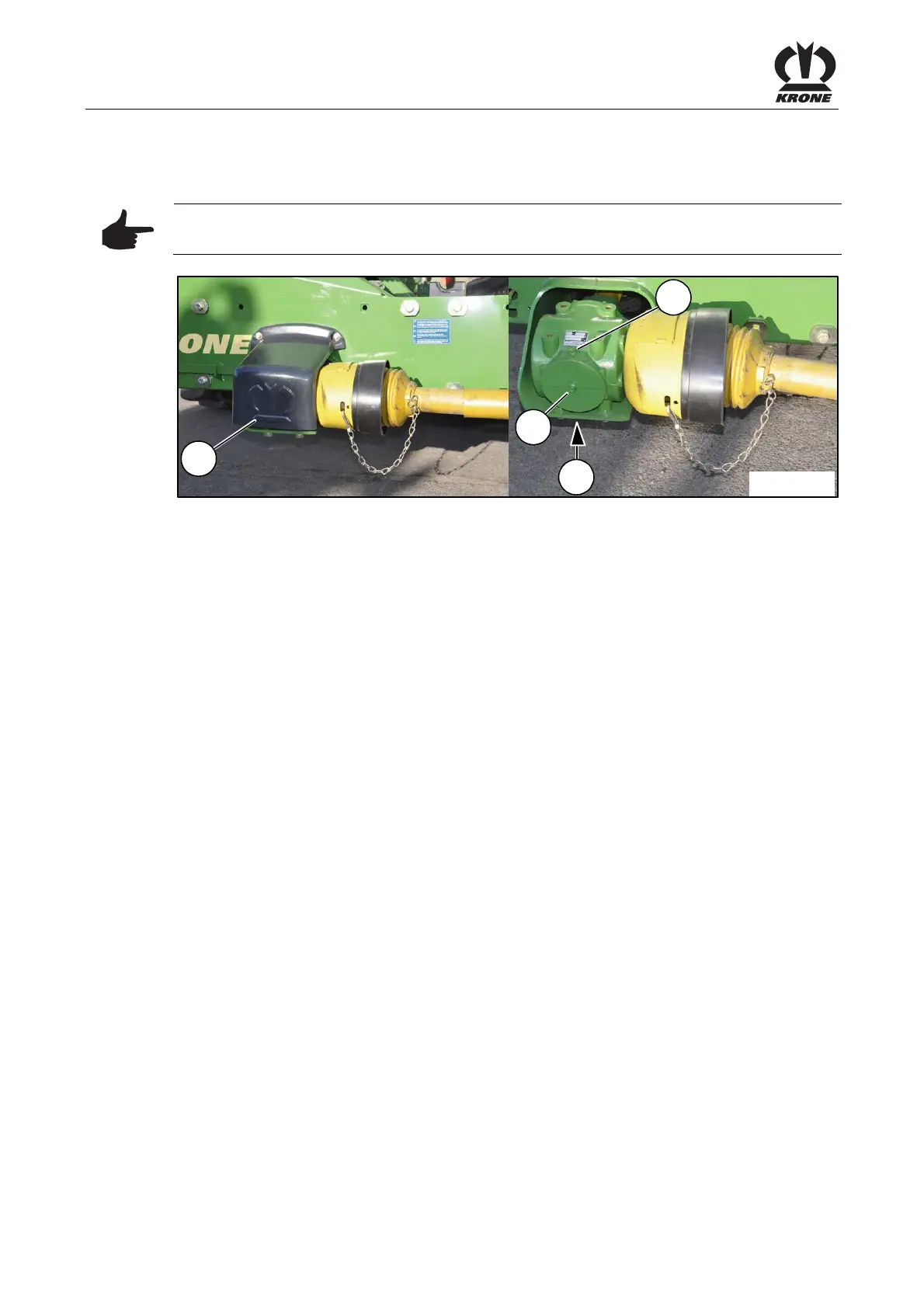

Fig. 29
Pos: 76.4 /BA/War tung/Ölkontrolle_W echsel/Ölwechsel / Ölkon trolle:Legende zu Graf ik Kontrollschraub e / Ablassschraube / Ei nfüllschraube @ 194\mod_13 83288259662_78.doc x @ 1647783 @ @ 1
1) Inspection screw / control hole 2) Drain plug
3) Filler plug / oil filling hole
Pos: 76.5 /BA/War tung/Ölkontrolle_Wec hsel/Ölqualität /Ö lmenge: siehe Kapitel Techni sche Daten @ 134\mod_135 0483480921_78.doc x @ 1188085 @ @ 1
Oil Quality / Amount of Oil: Refer to Chapter Technical Data “Lubricants”
Pos: 76.6 /BA/War tung/Ölkontrolle_W echsel/Ölkontrolle / Ö lwechsel Intervall: si ehe Kapitel War tung „Wartungstabelle“ @ 134\ mod_1350483605921_78. docx @ 1188115 @ @ 1
Interval for oil level check and oil change: refer to chapter Maintenance “Maintenance Table”
Pos: 76.7 /BA/War tung/Ölkontrolle_Wec hsel/Ölwechsel_AL T/Schutz (4) demontieren @ 58\mod_129673539628 6_78.docx @ 553788 @ @ 1
• Remove the guard (4)
Pos: 76.8 /BA/War tung/Ölkontrolle_Wec hselÖlkontrolle NEU über Kontrollschraube @ 140\ mod_1355141753680_7 8.docx @ 1244582 @ @ 1
Oil level check:
• Screw out inspection screw.
• Oil level up to control hole.
If the oil reaches the control hole:
• Screw in the inspection screw and tighten it securely.
If the oil does not reach the control hole:
• Screw out filler plug.
• Top up oil via oil filling hole until the control hole is reached.
• Screw in the inspection screw and the filler plug and tighten them securely.
Pos: 76.9 /BA/War tung/Ölkontrolle_Wec hsel/Ölwechsel_AL T/Schutz (4) montieren @ 58\mod_1296735440474_ 78.docx @ 553814 @ @ 1
• Install the guard (4)
