Settings

Pos: 68.11 /Übersc hriften/Überschri ften 2/A-E/Einstellung der Entlastungsfeder n @ 0\mod_1196666659447_ 78.docx @ 10133 @ 2 @ 1

11.3 Adjusting the Compensation Springs

Pos: 68.12 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ Gefahr - Einstellung an de n Entlastungsfeder n @ 0\mod_1196751594562_7 8.docx @ 12575 @ @ 1

Danger! - Setting on the compensation springs

Effect: Danger to life or serious injuries

• The compensation springs must only be removed in transport position. In the working

position the compensation springs are subject to high tensile stress.

• Severe injury can be caused if the compensation springs are removed while in the working

position.

• The lower threaded blocks on the compensation springs must be fully screwed in.

Pos: 68.13 /BA/Einste llungen/Mähwerke/Ea syCut/Bodendruc k/Bodendruck allge meiner Text alle EC @ 0\mod_11966 67271181_78.doc x @ 10190 @ @ 1

The ground pressure for the cutter bar is adjusted to local conditions by means of the

compensation springs. In order to protect the sward the load on the mowing spar must be

relieved so that it does not jump when mowing, yet does not leave any skid marks on the

ground.

Pos: 68.14 /BA/Einste llungen/Mähwerke/Ea syCut/Entlastung sfeder(n)/Entl astungsfeder Bild Ec 280/ 320 CV-Q -1 @ 59\mod_129742597 4935_78.docx @ 557865 @ @ 1

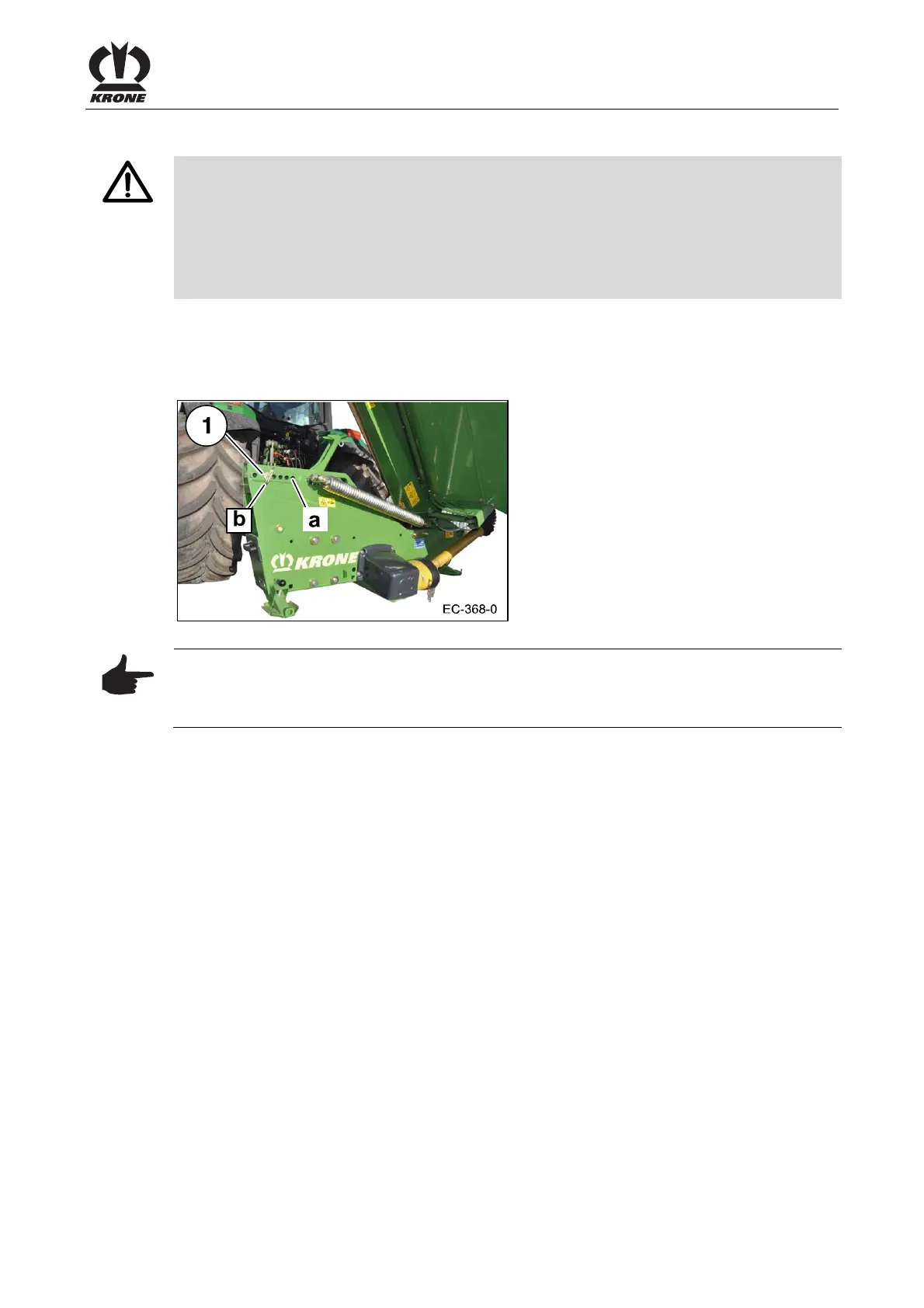

Fig. 24

Pos: 68.15 /BA/Einste llungen/Mähwerke/Ea syCut/Entlas tungsfeder(n)/Ei nstellung Entlastungsf eder Hinweis EC 320 -1 @ 58\ mod_1297066797720_78.doc x @ 554982 @ @ 1

Note

To adjust the compensation springs, move the disc mower to transport position. This is the only

position in which the bolt (1) can be moved in the pattern of holes to change the spring pre-

tensioning of the compensation springs.

Pos: 68.16 /BA/Einste llungen/Mähwerke/Ea syCut/Entlastung sfeder(n)/Entl astungsfeder Positio n a/b Bodendruck @ 60\ mod_1297866303459_78.d ocx @ 561743 @ @ 1

Position "a" = highest ground pressure

Position "b" = lowest ground pressure
