8.3.2 Install the PTO shaft
Pos: 62.28 /BA/Inbetr iebnahme/EasyCut/An bau Gelenkwelle/An bau Gelenkwelle EC 320 -1 @ 58\ mod_1296658917612_78.doc x @ 552853 @ @ 1
EC-331-0
1
2

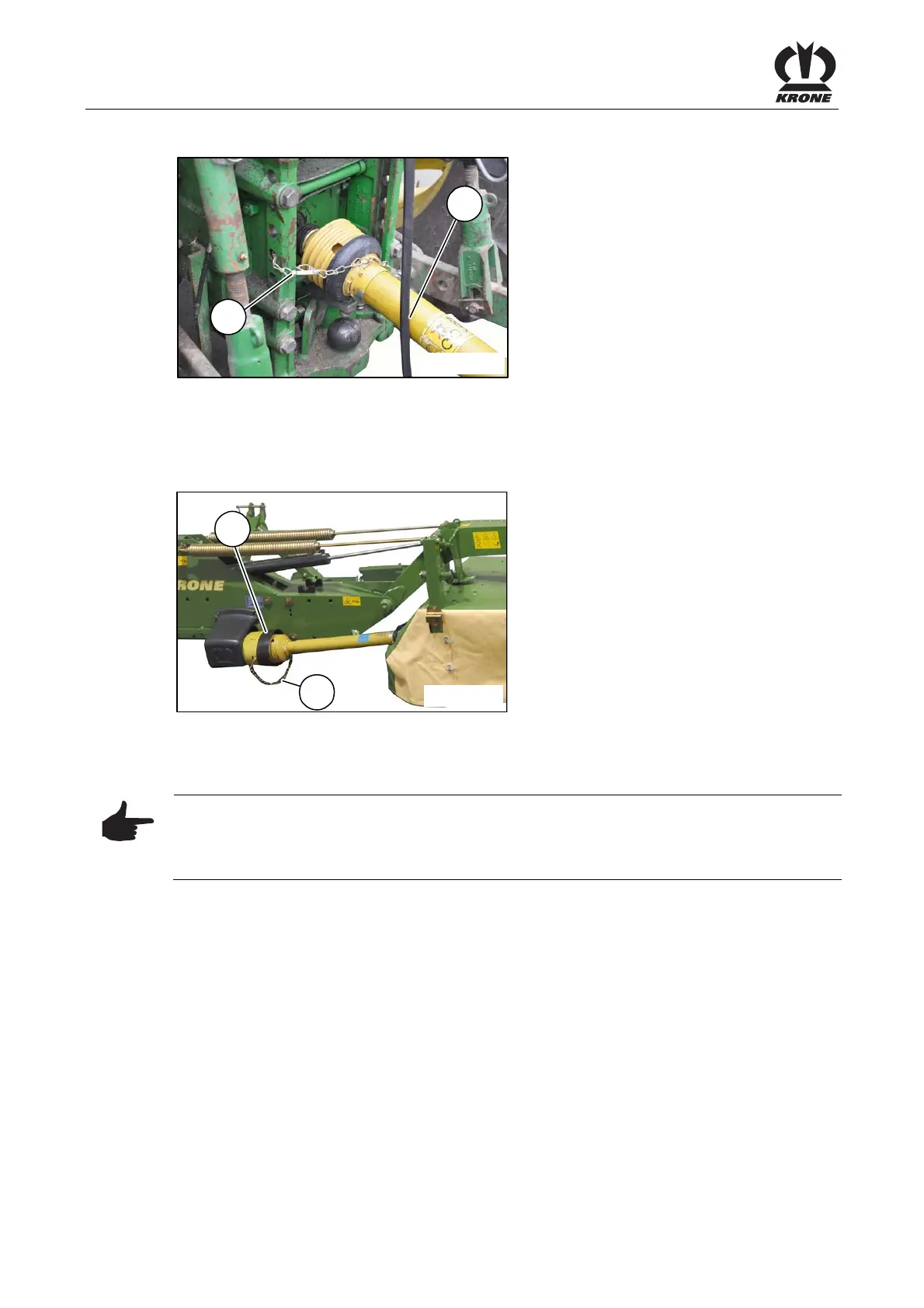

Fig. 9
Pos: 62.29 /BA/Inbetr iebnahme/EasyCut/An bau Gelenkwelle/An bau Gelenkwelle gezogene/ angehängte EasyCut s @ 9\mod_1220874876438_7 8.docx @ 128292 @ @ 1
• Slide the PTO shaft (1) onto the PTO end of the tractor and secure it.
• Secure the PTO shaft guard against turning with the retaining chain (2).
Pos: 62.30 /Übersc hriften/Überschri ften 2/U-Z/Zwischengel enkwelle @ 3\mod_12047 02241039_78.docx @ 7148 1 @ 2 @ 1
8.4 Intermediate PTO shaft
Pos: 62.31 /BA/Inbetr iebnahme/EasyCut/An bau Gelenkwelle/ Zwischengelenkwell e/Zwischengelenk welle Bild EC R 360 @ 209\mod_1387457 491287_78.docx @ 1726173 @ @ 1
EC-464-0
2
3
Fig. 10
Pos: 62.32 /BA/Inbetr iebnahme/EasyCut/An bau Gelenkwelle/ Zwischengelenkwell e/Zwischengelenk welle ohne Freilauf Text EC R 280 / R 320 / R 360 @ 78\mod_1314262196417_7 8.docx @ 695821 @ @ 1
The intermediate PTO shaft for the mowing unit drive is coupled to the gearbox of the three-
point block via the friction clutch (2). Fasten the retaining chain (3) to the mower.
Pos: 62.33 /BA/Inbetr iebnahme/EasyCut/ Hinweis Reibkupplung @ 11\mod_1223358975938 _78.docx @ 145593 @ @ 1
Note - Friction Clutch
Effect: Conserve functionality and increased service life
• The friction clutch (2) must be vented prior to commissioning and once a year prior to
harvesting. (See section Before the Start of the New Season "Friction clutch")
