Maintenance - Gearbox
58
Pos: 78.1 /Überschri ften/Überschri ften 2/K-O/Mäherantri ebsgetriebe @ 9\mod_12 21045800746_78.doc x @ 131475 @ 2 @ 1
13.2 Mower Drive Gearbox
Pos: 78.2 /BA/War tung/Hinweis Ölstandsk ontrolle in Arbeitsste llung und in waagerecht er Stellung der Maschi ne vornehmen @ 194\mod_138355 4973754_78.doc x @ 1649577 @ @ 1
Note
Perform oil level check and oil change while the machine is in a horizontal position!
Pos: 78.3 /BA/War tung/Ölkontrolle_Wec hsel/Mähwerke/Bi ld Mäherantriebsgetri ebe EC 280/320 @ 9\mod_122104 5935246_78.doc x @ 131519 @ @ 1

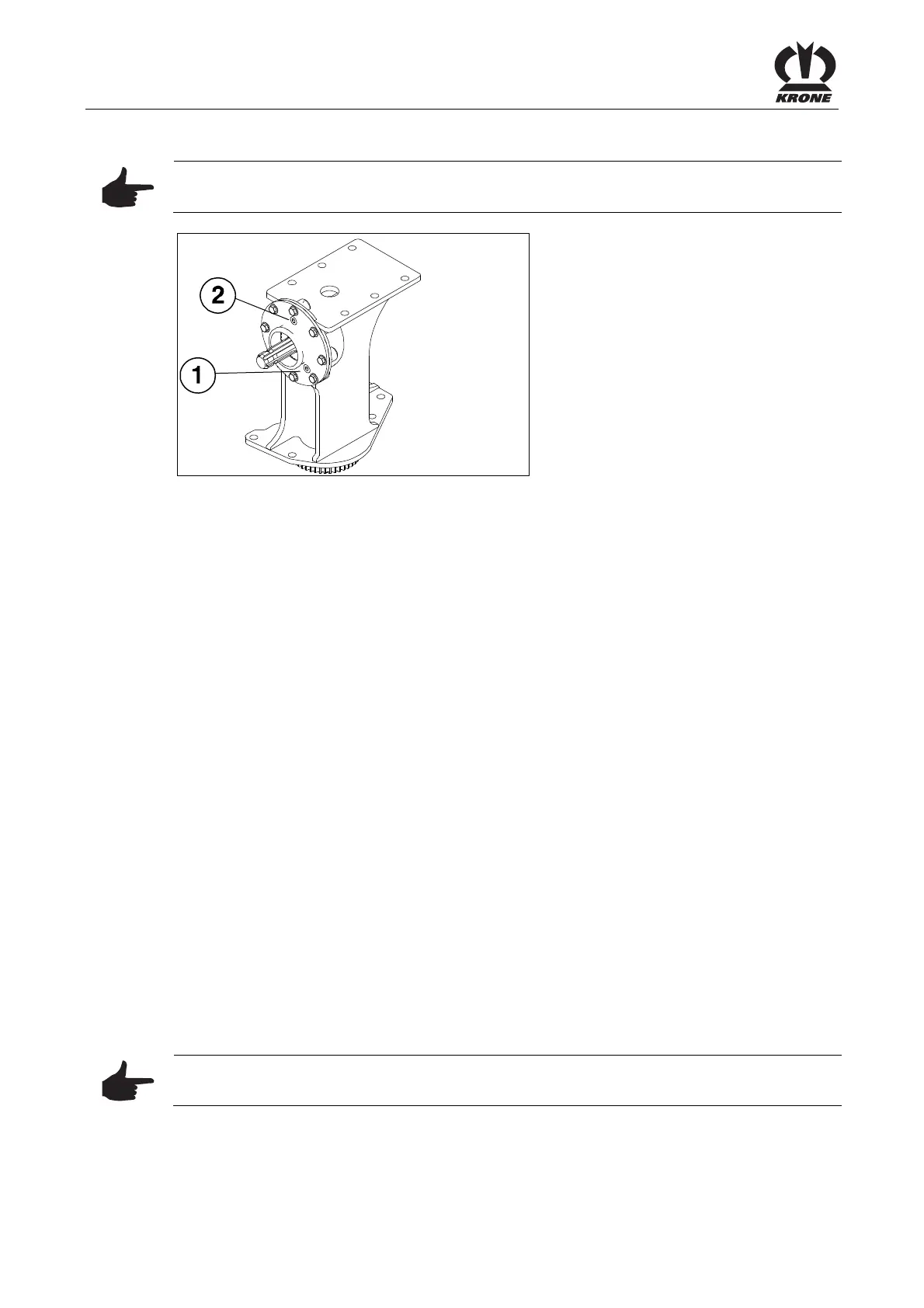

EC-170-1
Figure 30
Pos: 78.4 /BA/War tung/Ölkontrolle_W echsel/Ölwechsel / Ölkon trolle:Legende zu Graf ik Kontrollschraub e / Einfüllschraube @ 194\ mod_1383298407773_ 78.docx @ 1647929 @ @ 1
1) Inspection screw / control hole 2) Filler plug / oil filling hole
Pos: 78.5 /BA/War tung/Ölkontrolle_Wec hsel/Ölqualität /Ö lmenge: siehe Kapitel Techni sche Daten @ 134\mod_135 0483480921_78.doc x @ 1188085 @ @ 1
Oil Quality / Amount of Oil: Refer to Chapter Technical Data “Lubricants”
Pos: 78.6 /BA/War tung/Ölkontrolle_W echsel/Ölkontrolle / Ö lwechsel Intervall: si ehe Kapitel War tung „Wartungstabelle“ @ 134\ mod_1350483605921_78. docx @ 1188115 @ @ 1
Interval for oil level check and oil change: refer to chapter Maintenance “Maintenance Table”
Pos: 78.7 /BA/War tung/Ölkontrolle_Wec hselÖlkontrolle NEU über Kontrollschraube @ 140\ mod_1355141753680_7 8.docx @ 1244582 @ @ 1
Oil level check:
• Screw out inspection screw.
• Oil level up to control hole.
If the oil reaches the control hole:
• Screw in the inspection screw and tighten it securely.
If the oil does not reach the control hole:
• Screw out filler plug.
• Top up oil via oil filling hole until the control hole is reached.
• Screw in the inspection screw and the filler plug and tighten them securely.
Pos: 78.8 /BA/War tung/Ölkontrolle_Wec hsel/Ölwechsel NEU nur Easy Cut mit Mäherantri ebsgetriebe @ 210\mod_1389 176347334_78.doc x @ 1731635 @ @ 1
Oil change:
• Move the machine to transport position.
• Switch off the tractor engine, remove the ignition key and secure the tractor from rolling
away.
Collect escaping oil in a suitable container.
• Screw out inspection screw and filler plug and drain the oil.
• Move the machine to working position.
• Switch off the tractor engine, remove the ignition key and secure the tractor from rolling
away.
• Top up new oil via oil filling hole until the control hole is reached.
• Screw in inspection screw and filler plug and tighten them securely.
Pos: 78.9 /BA/War tung/Ölkontrolle_Wec hsel/Hinweis - Altöl ordnu ngsgemäß entsorgen @ 0\ mod_1197008117002_78. docx @ 15550 @ @ 1
Note
The used oil must be disposed of correctly
