Settings
43
Pos: 68.1 /Überschri ften/Überschri ften 1/A-E/Einstellu ngen @ 0\mod_11998687838 62_78.docx @ 36141 @ 1 @ 1
11 Settings
Pos: 68.2 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ Warnung - Einstellarbei ten angebaute Maschine n @ 254\mod_139748787 5458_78.docx @ 1953794 @ @ 1
DANGER! - Unexpected movement of the machine
Effect: Danger to life or serious injuries.
• Setting tasks must only be performed when the drive is switched off and the engine is at a
standstill!
• Switch off engine.
• Remove the ignition key and carry it with you.
• Secure the tractor against rolling away.
Pos: 68.3 /Überschri ften/Überschri ften 2/A-E/Einstelle n der Schnitthöhe @ 0\mod_11 96660879619_78.doc x @ 9191 @ 2 @ 1
11.1 Adjusting the cutting height
Pos: 68.4 /BA/Einste llungen/Mähwerke/Sc hnitthöhe/Schni tthöhe Bild EC 280/320 CV- Q -1 @ 59\mod_1297425448144_78. docx @ 557836 @ @ 1
EC-367-0
1

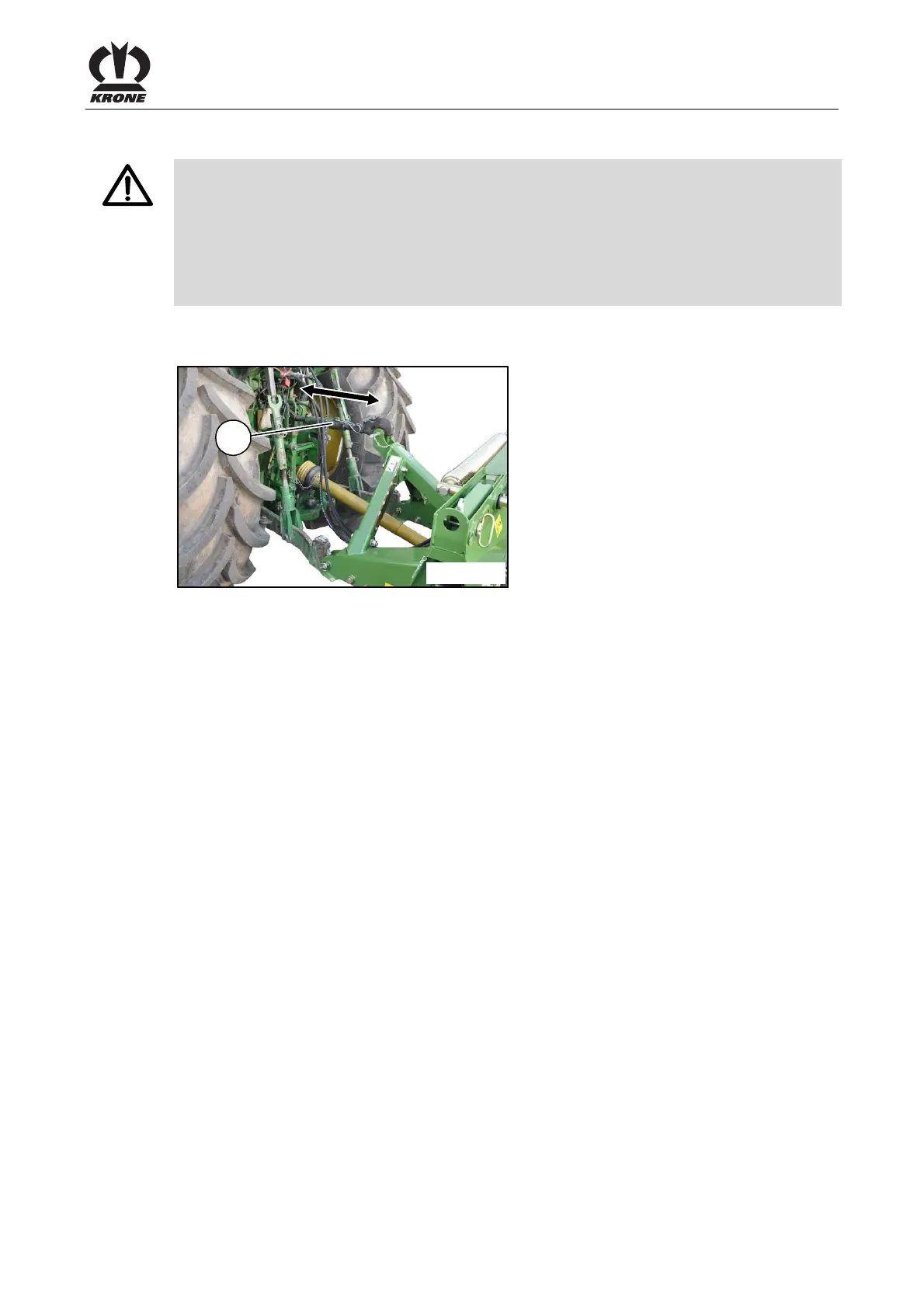

Fig. 22
Pos: 68.5 /BA/Einste llungen/Mähwerke/Sc hnitthöhe/Schni tthöhe größer_geri nger EC280/320 @ 9\mod_1220 960304209_78.docx @ 1302 71 @ @ 1
The cutting height is adjusted via the top link (1).
To do this:
• Swivel the parking support(s) down
• Lower the machine into working position and set it down on the parking support(s).
• Rotate the top suspension arm (1).
• Fold in the parking support(s).
Top suspension arm longer = bigger cutting height
Top suspension arm shorter = smaller cutting height
