11.5 Setting of the pole protection mechanism

Pos: 68.24 /BA/Sic herheit/EasyCut/Ac htung - Einstellung an der Pf ahlsicherung @ 9\mod_1220 960955600_78.doc x @ 130367 @ @ 1

Caution! - Adjusting the pole protection mechanism

Effect: Damage to the machine

• If the setting value is changed, the trigger moment will also change. If the spring on the

pole protection mechanism is pretensioned more than prescribed by the manufacturer,

there is a risk of damaging the disc mower.

• The spring on the pole protection mechanism must be tensioned at least to the extent that

the pole protection mechanism does not respond in transport position even with abrupt

loads.

Pos: 68.25 /BA/Einste llungen/Mähwerke/Ea syCut/Pfahlsic herung/Pfahlsic herung Bild EC 320 -1 @ 58\mod_12967313 65769_78.docx @ 55362 4 @ @ 1

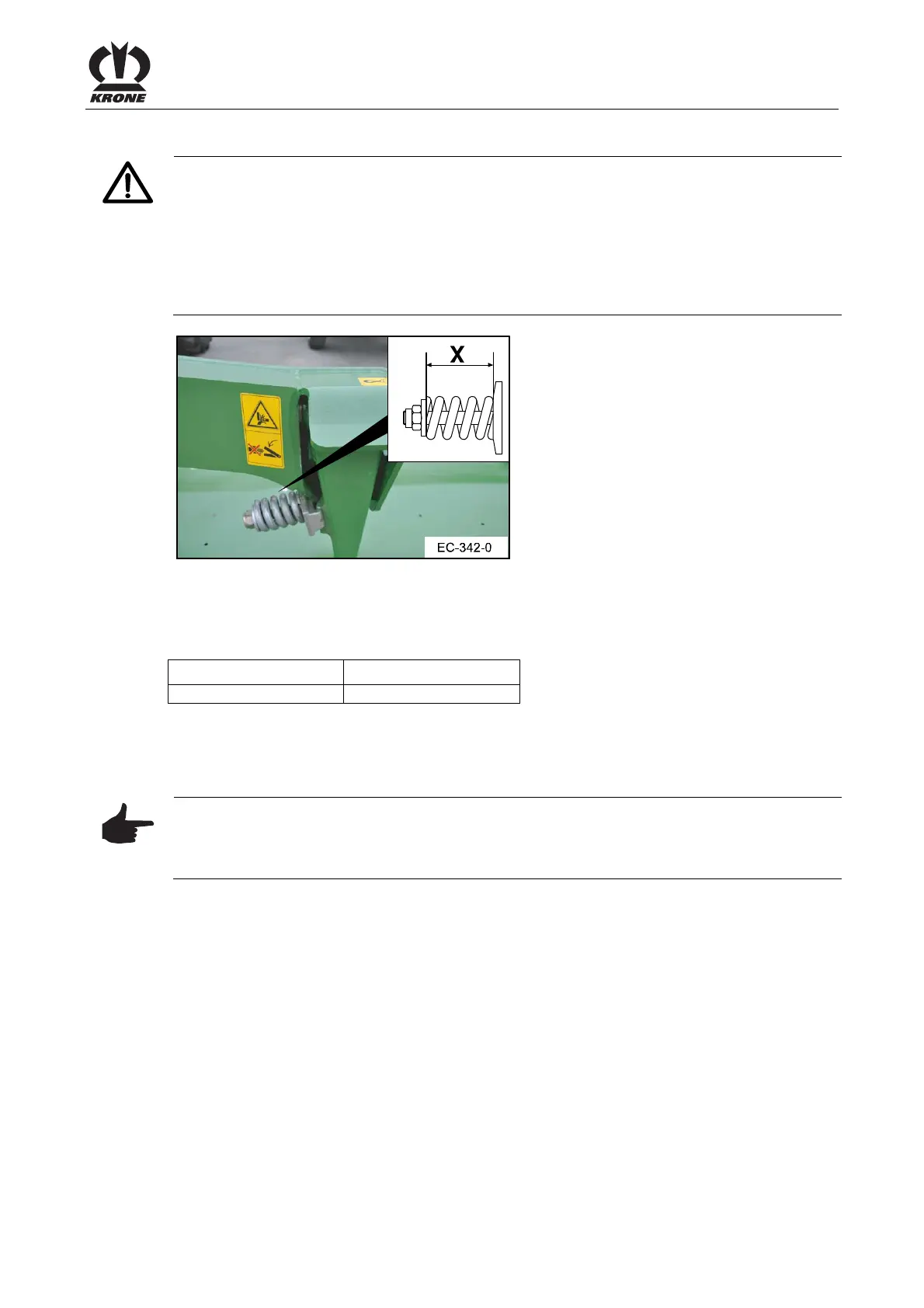

Fig. 26

Pos: 68.26 /BA/Einste llungen/Mähwerke/Ea syCut/Pfahlsic herung/Pfahlsic herung allgemein @ 9\mod_122 0961293021_78.doc x @ 130429 @ @ 1

In order to protect the disc mower against damages during driving over obstacles, it is equipped

with a so-called pole protection mechanism.

The optimal setting for the trigger moment takes place in the factory.

Pos: 68.27 /BA/Einste llungen/Mähwerke/Ea syCut/Pfahlsic herung/Pfahlsic herung EC R 360 Tabelle @ 74\mod_1 308907811663_78.doc x @ 658929 @ @ 1

Mower type Dimension x

EASYCUT R 360 80 mm

Pos: 68.28 /BA/Einste llungen/Mähwerke/Ea syCut/Pfahlsic herung/Pfahlsic herung nach dem Auslösen @ 9\mod _1220961640381_78. docx @ 130471 @ @ 1

After the pole protection mechanism is triggered, the mowing unit swings back and, at the same

time, in the front area upwards. This allows the mower to climb over small obstacles, e.g.,

stones. The pole protection mechanism will catch again as soon as you move back.

Pos: 68.29 /BA/Einste llungen/Mähwerke/Ea syCut/Pfahlsic herung/Hinweis Pfahl sicherung @ 11\mod_1223 360496173_78.doc x @ 145639 @ @ 1

Note

If the pole protection mechanism does not engage automatically when it moves back, release

the tension on the compensation springs (see chapter on Operation "Detaching the machine")

and move back until the pole protection mechanism engages.
