Maintenance - Blade Changing
61
Pos: 83.5 /Überschri ften/Überschri ften 3/K-O/Mähklingen @ 0\mod_1197265959110_7 8.docx @ 16361 @ 3 @ 1
14.1.1 Cutter Blades
Pos: 83.6 /BA/War tung/Mähwerke/Die Bohrung der Mähklingen kann sic h durch Verschleiß aufwei ten. @ 10\mod_122104898271 5_78.docx @ 131675 @ @ 1
The borehole on the cutter blades may spread due to wear.
Pos: 83.7 /BA/Sic herheit/7. Gefahrenhin weise alt/Mähwerke/ Warnung - Zu geringe Materi alstärke an den Mähklingen _neu @ 312\mod_1418983 956660_78.doc x @ 2409555 @ @ 1
Danger! - Insufficient thickness of material on the cutter blades.
Effect: Danger to life or serious injuries.
• The cutter blades must be replaced at the latest when the wear limit is reached (see mark
(1) on the cutter blade; dimension a less than or equal to 13 mm).
Pos: 83.8 /BA/War tung/Mähwerke/Mähkling en beidseitig verwen bar_neu @ 3\mod_12047280 12601_78.docx @ 72608 @ @ 1
a
EC 253 0
1

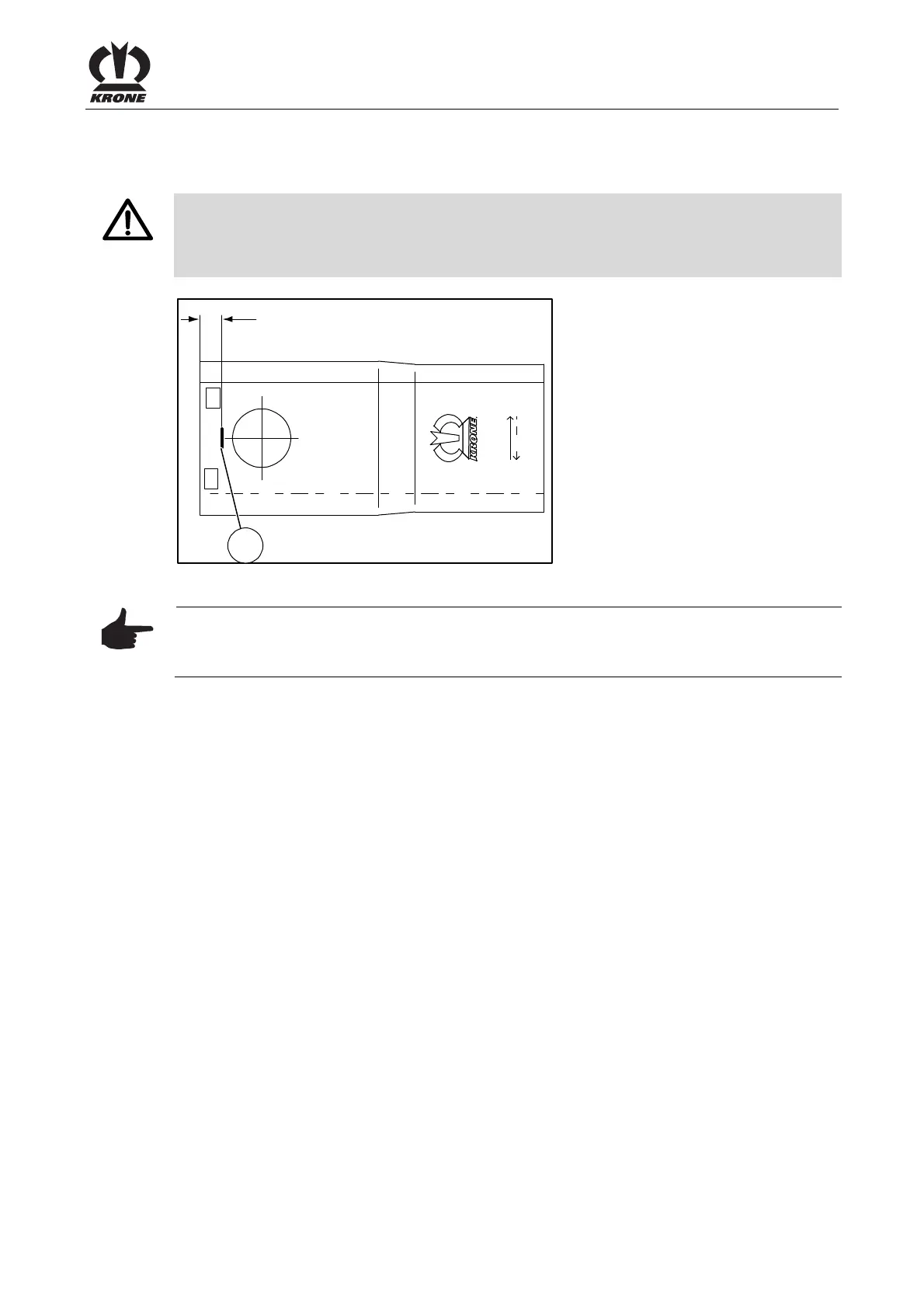

Fig. 33
Note - The cutter blades can be turned around and used on both sides.
• When cutter blades are missing or damaged, they must be replaced as a complete set.
This prevents dangerous unbalanced rotation
