11.4 Hydraulic spring compensation (optional)

Pos: 68.19 /BA/Einste llungen/Mähwerke/Ea syCut/Entlastung sfeder(n)/Hydr aulische Federentlast ung Hinweis @ 59\mod_12974 28294632_78.doc x @ 558028 @ @ 1

Note

The hydraulic hose line for the hydraulic spring compensation does not necessarily have to be

connected to the tractor hydraulics during use. In this case, however, the ground pressure of

the cutter bar cannot be changed during use.

Pos: 68.20 /BA/Einste llungen/Mähwerke/Ea syCut/Entlastung sfeder(n)/Hydr aulische Federentlast ung Bild EC 280/320 CV-Q -1 @ 59\ mod_1297428195837_78. docx @ 558002 @ @ 1

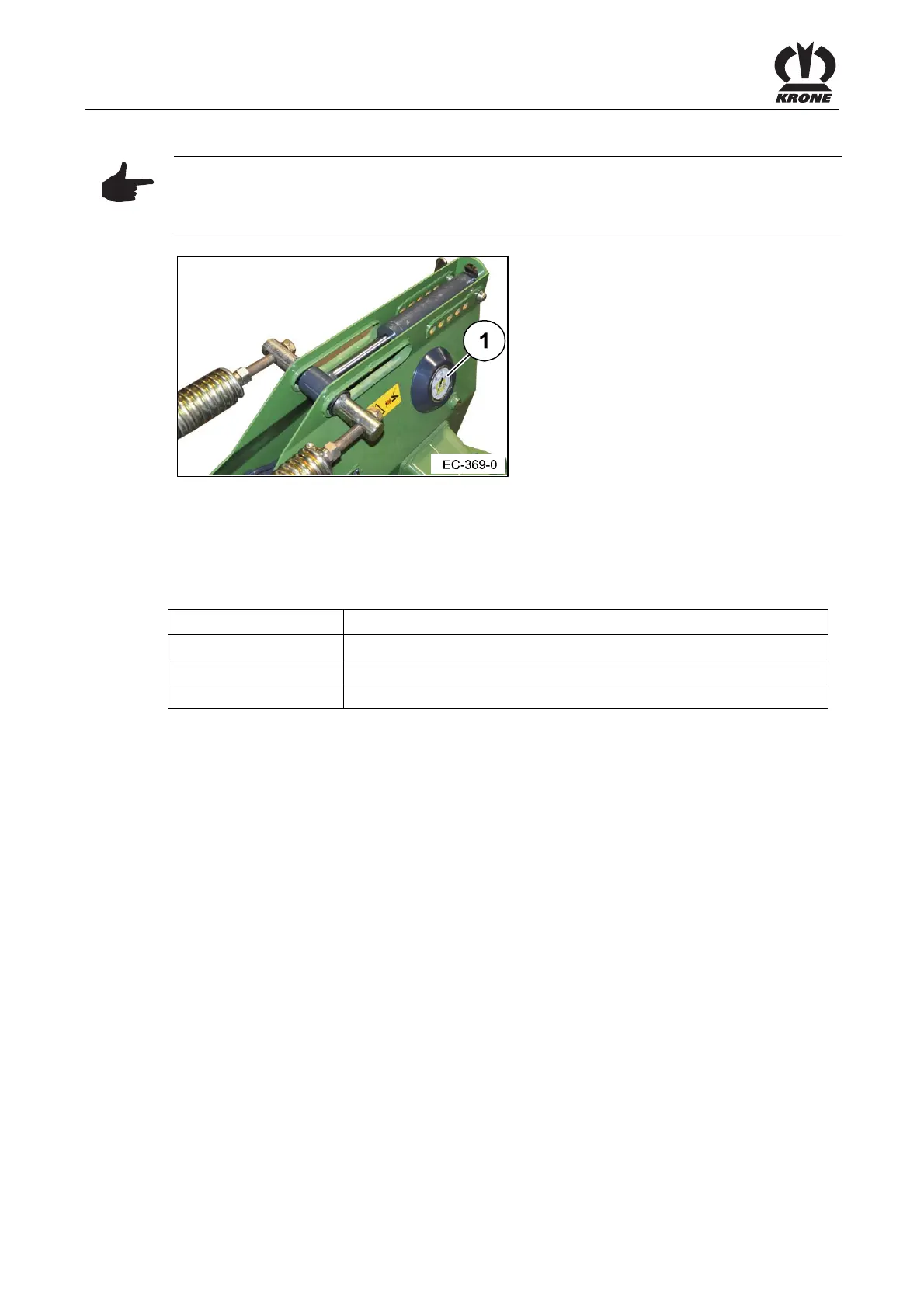

Fig. 25

Pos: 68.21 /BA/Einste llungen/Mähwerke/Ea syCut/Entlastung sfeder(n)/Hydr aulische Entlastung sfeder Bodendruck ei nstellen EC R 280/320 CV / R 360 @ 113\mod _1337851113963_78.doc x @ 998907 @ @ 1

• For setting / correcting the ground pressure, connect the hydraulic hose lines (red 3/blue 3)

to the connection of the double-acting control unit

The set ground pressure can be read off on the pressure gauge (1).

Recommended setting range:

Type Setting range

EasyCut R 360 50 – 100 bar

EasyCut R 280 CV 50 – 100 bar

EasyCut R 320 CV 70 – 120 bar

Setting the ground pressure:

• Continue activating the control unit until the desired ground pressure is displayed

Set the ground pressure according to the ground conditions

The higher the pressure, the smaller the ground pressure
