Fig. 18
Pos: 66.43 /BA/Bedienun g /EasyCut/Entlast ungsfeder(n)/ Entlastungsfedern außer Funktion setzen. @ 9\mod _1220884313501_78.doc x @ 128945 @ @ 1
• Disable the compensation springs by reversing the adjusting lever (1) (only possible
in transport position).
• Move the mower into the working position.
Pos: 66.44 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lstütze angehoben Bild EC R 280 CV / R 320 CV / R 280 CR / R 320 CR @ 205\mod_1386245162 750_78.docx @ 1706387 @ @ 1
1
2
EC-459-0
2
1
Fig. 19
Pos: 66.45 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lposition/Transpor tstellung @ 58\mod_1296 660164314_78.doc x @ 552939 @ @ 1
I) Parking position II) Transport position
Pos: 66.46 /BA/Bedienun g /EasyCut/Abste llstütze/Abstel lstütze in Abstellpositi on schwenken @ 207\mod_1 386672094921_78.doc x @ 1713661 @ @ 1

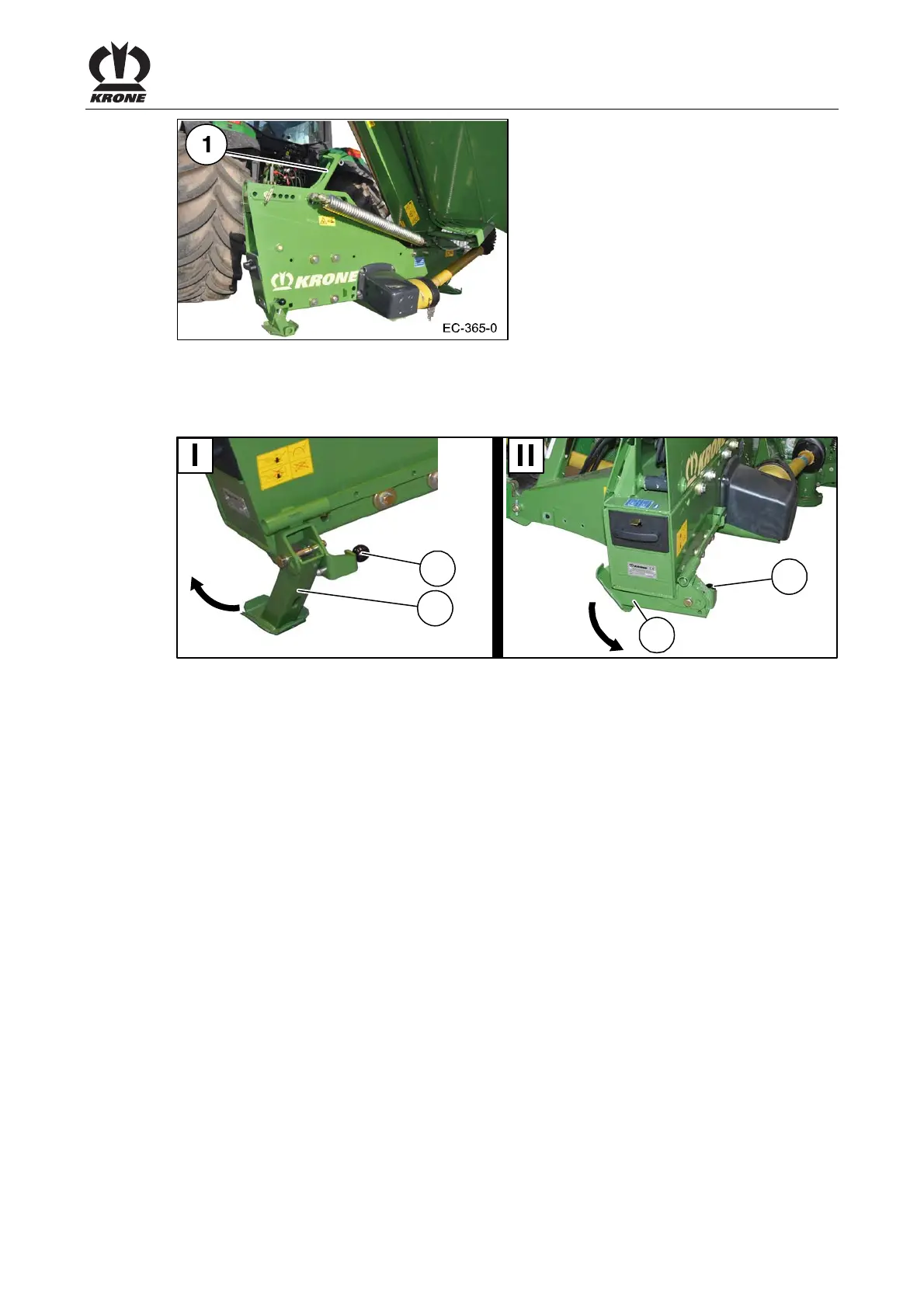

Before parking the machine, move the parking support into parking position.
• Swivel parking support (2) down and lock it in place via bolt (1).
