SUPERSTRUCTURE OPERATION
Operating instructions • Semitrailer • 505369471-04 • 02/2019
113
► Fasten the sliding roof to the pull rod
so that it does not close again by itself
when the trailer is in a slanted position.
ü The sliding roof is open.
Moving (closing) the sliding roof from
the front wall to the rear
► Release the pull rod.
► Pull forward the sliding roof using the
pull rod on the front transverse hoop.
► Hook the securing rope and, if neces-
sary, the diagonal rope of the sliding
roof on the front wall side.
► Fold down the roof tarp at the front.
► Close all the plug locks on the roof
tarp.
► Hook on the roof tarp rope.
► The sliding roof is closed.

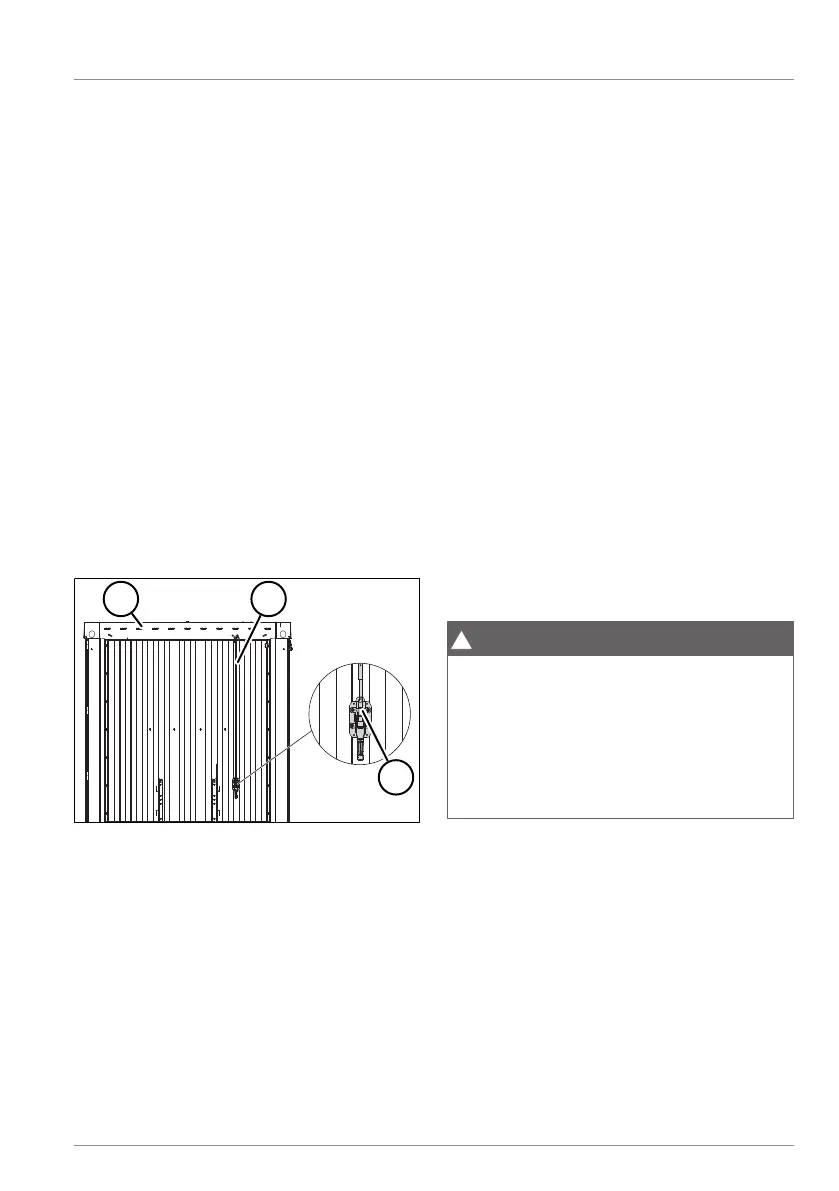

Opening the roof hood (Comfort solu-
tion)
2
3
1
1 Roof hood
2 Rod
3 Lock on the tension lock
The roof cover can be folded and locked so
that the roof can be slid on both sides.
► Press in the lock on the tension lock
and swivel upwards to release the ten-
sion lock.
► Remove the rod.
► Push up the roof hood above the dead
centre using the rod.
► Pull back the sliding roof using the pull
rod on the foremost transverse hoop.
► Attach the rod to the front wall and se-
cure it at the bottom with the tension
lock.
ü The roof hood is open.
Closing the roof hood (Comfort solu-
tion)
► Pull forward the sliding roof using the
pull rod on the foremost transverse
hoop.
► Allow the cover to engage into place.
► Remove the rod.
► Pull down the roof hood with the rod
until it is fully folded in.
► Attach the rod to the roof cover and
secure it at the bottom with the tension
lock.
ü The roof hood is closed.
6.5.3 Fixed roof (full-tarp superstruc-
ture)
!
WARNING
Risk of accident from unstable ladders
or scaffolding!
Unstable ladders or scaffolding can fall
down and cause personal injury and ma-
terial damage.
► Ensure that the ladders and scaffold-
ing are on stable ground.
Fixed roofs are composed of roof sections
attached to each other. The curtain tubes
rest on the transverse hoops. The trans-
verse hoops rest on the external beams.
Fixed roofs must be dismantled for crane
loading/unloading.
