Krone Profi Liner - Spare Wheel with Basket Storage; Spare Wheel with Winch

RUNNING GEAR OPERATION
Operating instructions • Semitrailer • 505369471-04 • 02/2019
57
5.18.1 Spare wheel with basket stor-
age
1 2 3

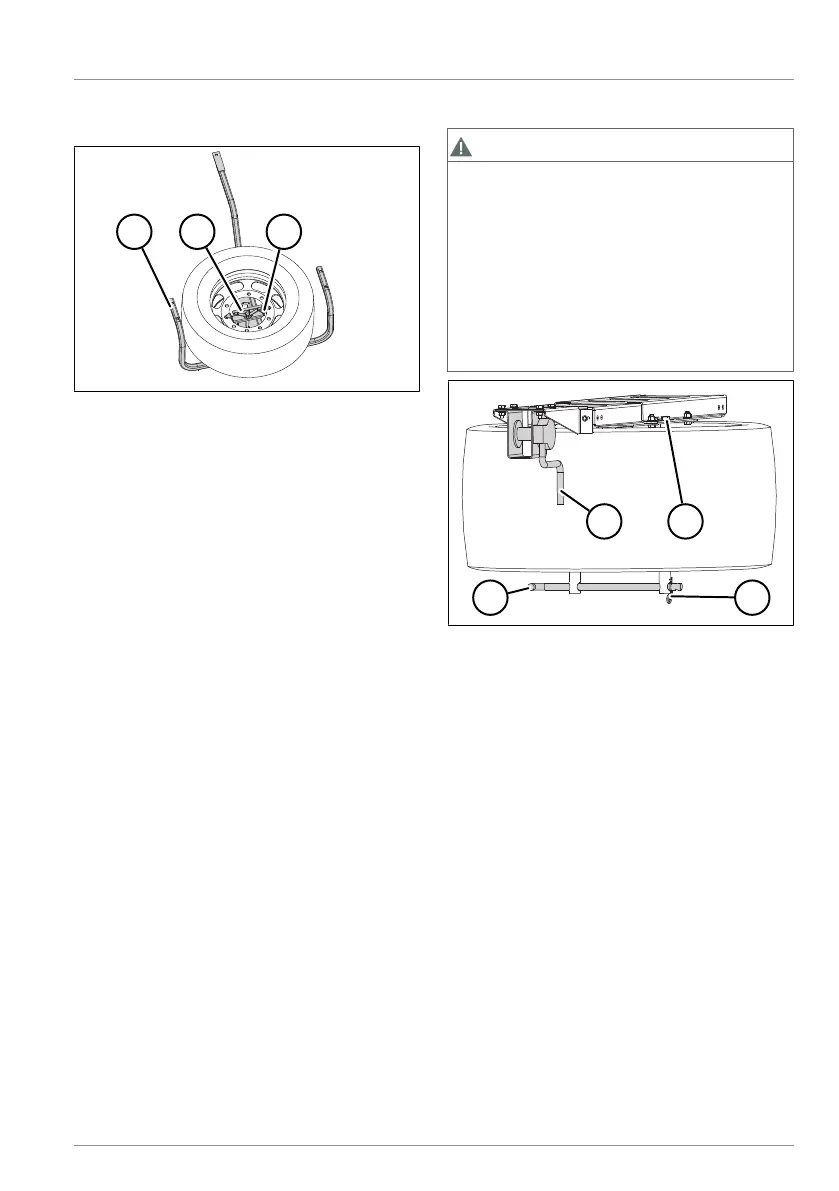

Fig.5-46: Spare wheel with basket storage
version 1
1 Storage basket
2 Rim holder
3 Securing device
Spare wheel removal
► Fold up the side collision protection, if
necessary (see "5.15 Side collision protec-
tion", pg.52).
► Remove the securing device.
► Unscrew the rim holder.
► Remove the spare wheel from the stor-
age basket.
ü The spare wheel has been removed.
Spare wheel insertion
► Insert the spare wheel in the storage
basket.
► Firmly screw the rim holder.
► Install the securing device.
► Fold down the side collision protection,
if necessary (see "5.15 Side collision pro-
tection", pg.52).
► The spare wheel is inserted.
5.18.2 Spare wheel with winch
CAUTION
Risk of injury due to a falling spare
wheel!
The weight of a falling spare wheel can
cause injuries.
► Work carefully when changing a spare
wheel.
► Before removing the securing
devices, check the support cable and
winch for function and damage.
1
2
4
3
Fig.5-47: Spare wheel with winch
1 Retainer rod
2 Hand crank
3 Tubular nut
4 Spring cotter pin
Spare wheel removal
► Fold up the side collision protection, if
necessary (see "5.15 Side collision protec-
tion", pg.52).
► Remove the spring cotter pin.
► Remove the retainer rod from the tubu-
lar nuts.
► Unscrew the tubular nuts counter-
clockwise using the retainer rod.
► Turn the hand crank counter-clockwise
and slowly lower the spare wheel to
the ground using the winch.
