RUNNING GEAR OPERATION
54
Operating instructions • Semitrailer • 505369471-04 • 02/2019
► Secure the plug-in bolts with the spring
pins.
ü The side collision protection is folded
up and secured.
Folding down the side collision protec-
tion
► Pull out the spring pin on both plug-in
bolts.
► Pull out the plug-in bolts.
► Fold down the side collision protection.
► Insert the plug-in bolts into the drilled
holes.
► Secure the plug-in bolts with the spring
pins.
ü The side collision protection is folded
down and secured.
5.15.3 Swivelling side collision pro-
tection with lock
CAUTION
Risk of injury from the side collision
protection folding down unintention-
ally!
An unlocked side collision protection can
suddenly fold down and injure people or
swing outwards while driving, thereby
causing accidents.
► Lock the side collision protection in
every position.
Folding up the side collision protection
1 2

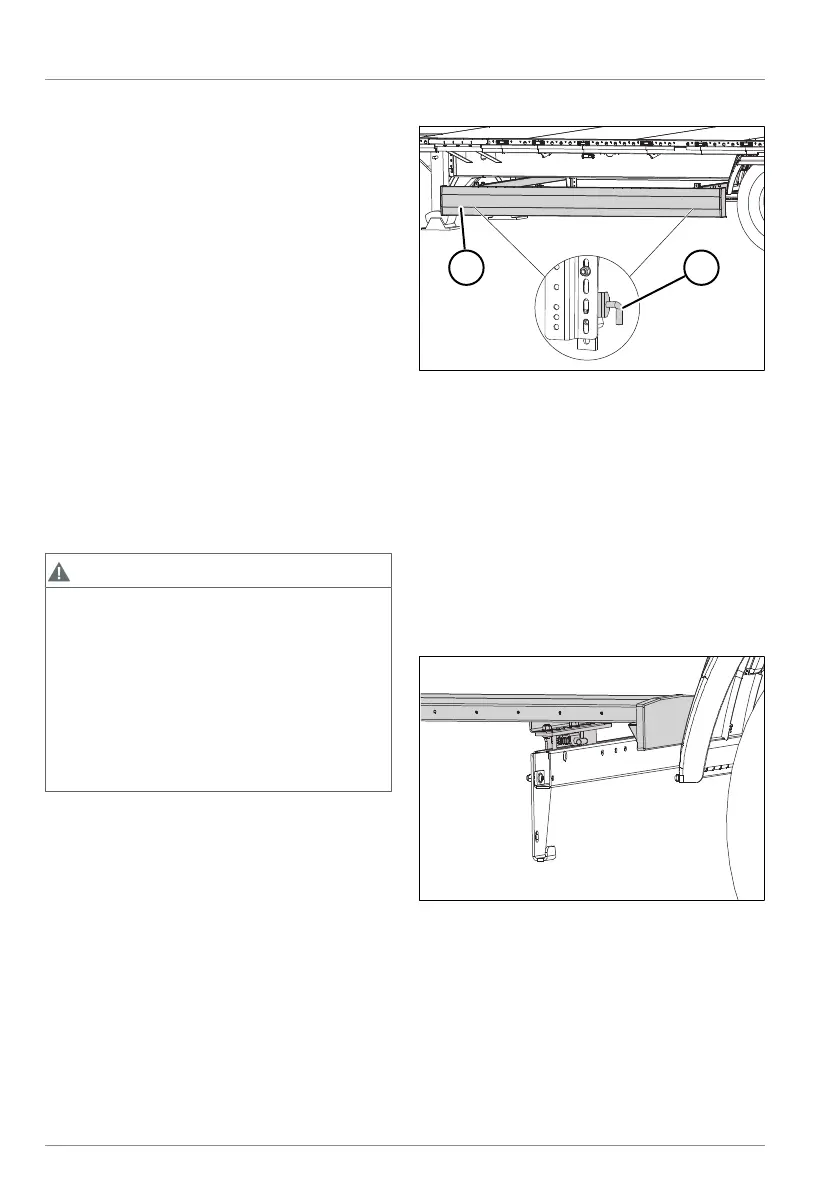

Fig.5-42: Swivelling side collision protection
1 Side collision protection
2 Spring latch
► Pull out both spring latches and en-
gage them in the unlocked position.
► Fold up the side collision protection
until it is in a horizontal position and
push in towards the centre of the
vehicle.
► Lock the side collision protection by
engaging the spring latch.
Fig.5-43: Swivelling side collision protection
folded up
ü The side collision protection is folded
up and locked.
Folding down the side collision protec-
tion
► Pull out both spring latches and en-
gage them in the unlocked position.
