TECHNICAL DATA
186
Operating instructions • Semitrailer • 505369471-04 • 02/2019
13 Technical data
13.1 Dimensions and weights
The technical data can vary depending on
the vehicle equipment. A list of the tech-
nical data for all variants is not possible
here. The vehicle-specific technical data is
noted in the vehicle documents. The meas-
urements and weights in the following table
refer to the basic vehicle model.
Profi Liner with sliding curtain super-
structure (SDP 27 eLB4-CS)
Dimensions and weights
Permitted total weight
39,000 kg
Fifth-wheel load
12,000 kg
Axle load
27,000 kg
Dead weight
approx. 6,160
kg
Payload
approx. 32,840
kg
Unloaded coupling height
1,150 – 1,170
mm
Axle distances
1,310 mm
Construction height, front
125 mm
Internal clearance length
13,620 mm
Internal clearance width
2,480 mm
Clear lateral loading height
2,575 – 2,800
mm
Outer width
2,550 mm
Mega Liner with sliding curtain super-
structure (SDP 27 eLG4-CS)
Dimensions and weights
Permitted total weight
39,000 kg
Fifth-wheel load
12,000 kg
Axle load
27,000 kg
Dead weight
approx. 6,470
kg
Payload
approx. 32,530
kg
Unloaded coupling height
950 mm
Axle distances
1,310 mm
Construction height, front
80 mm
Dimensions and weights
Internal clearance length
13,620 mm
Internal clearance width
2,480 mm
Clear lateral loading height
2,860; 3,000
mm
Outer width
2,550 mm
Further information can be found on our
website www.krone-trailer.com.
13.2 Plugs and socket pin as-
signments
13.2.1 Socket S (white) ISO3731,
7‑pin

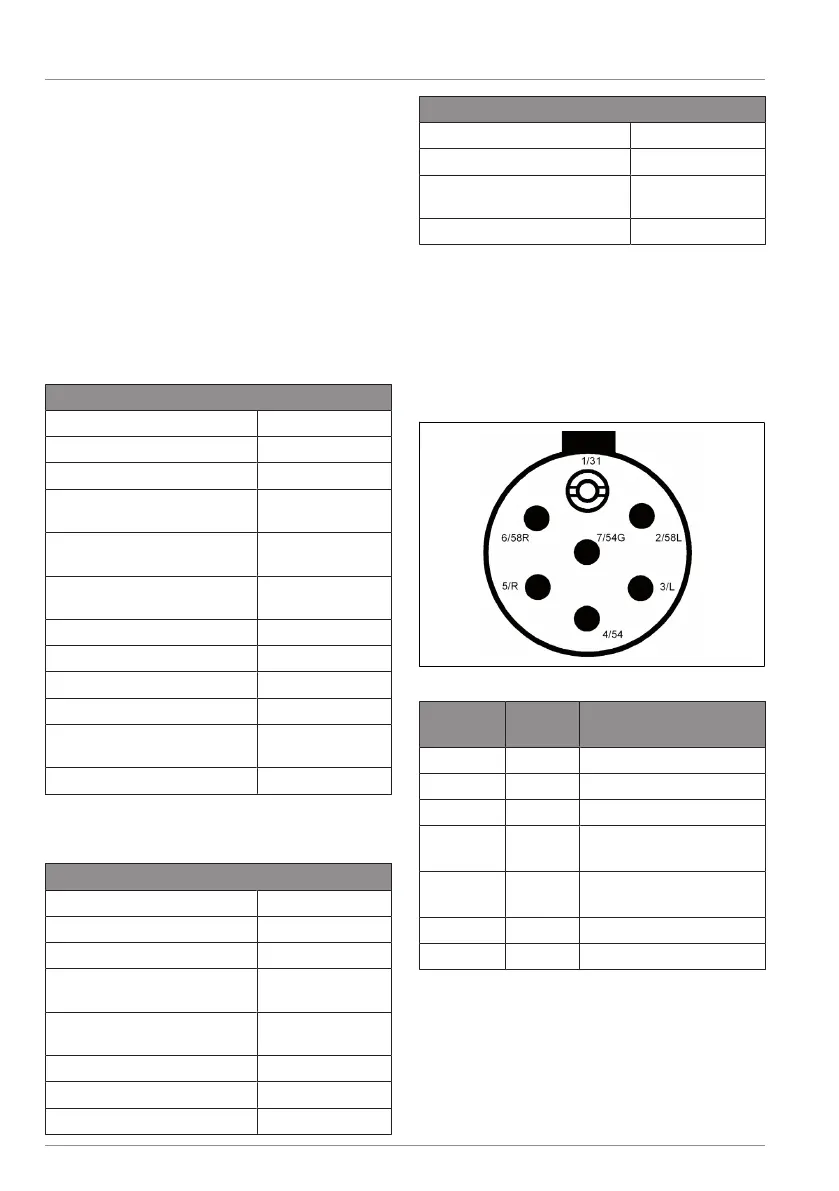

Fig.13-1: Socket ISO S 3731, 7-pin
Contact
no.
Colour Function
1/31 White Ground
2/58L Black Unassigned
3/L Yellow Reversing light
4/54 Red Permanent power (+24
V)
5/R Green Steering axle lock (op-
tional)
6/58R Brown Lift axles (optional)
7/54G Blue Rear fog light
