○ Start loading tyres at the front next to
the front wall, stacking them within
each other.
○ Disposable lashing material can be
used with a self-locking knot.

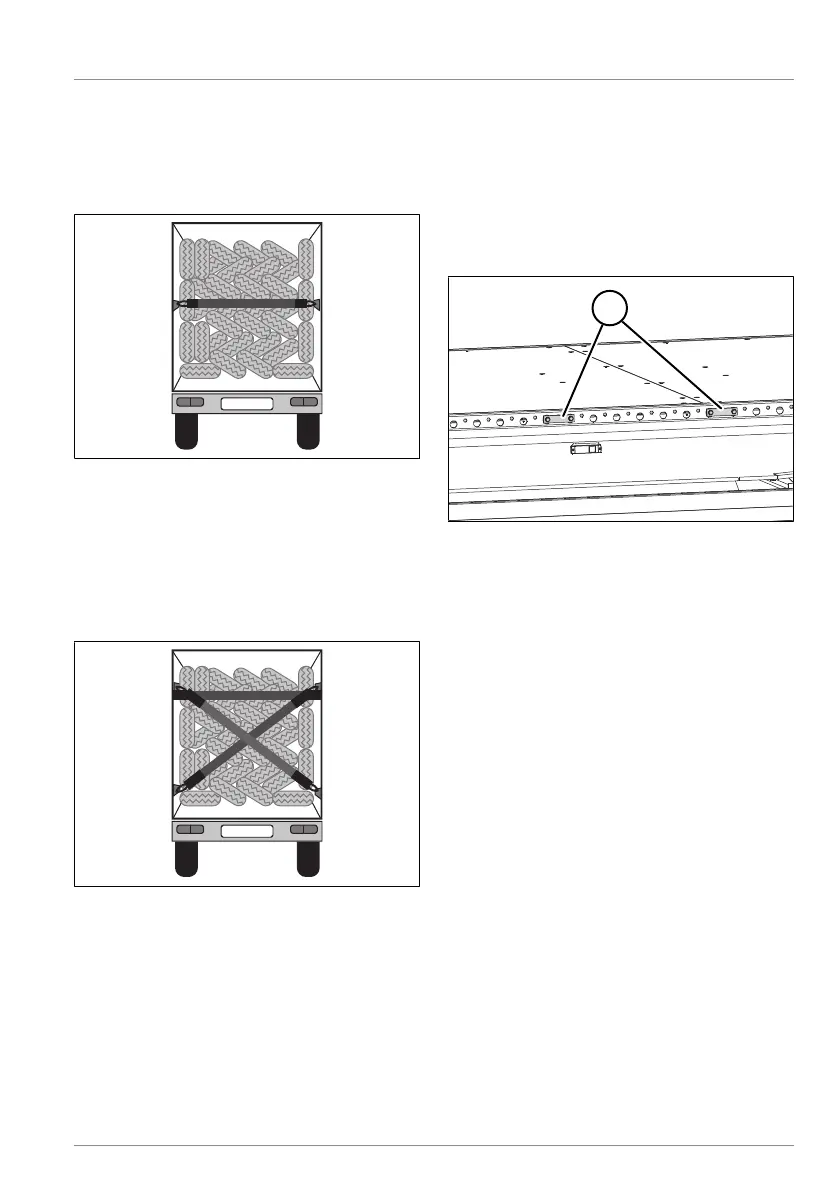

Fig.8-42: Bracing the tyres horizontally
○ Brace the upper tension cables across
the middle of each area between the
posts using the recesses provided
(lashing material: min 2500daN in the
hoop casing). Pre-tension to
≤2450mm (inside dimension alu-
minium planks).
Fig.8-43: Rearwards tyre securing
○ The rearwards securing by a cross-
wise belt strap consists of two dispos-
able lashing belts that are secured
onto the lashing rings at the top. Fur-
thermore, the uppermost position is
horizontally secured with disposable
lashing material with knots (lashing
material: min. 2500daN in the hoop
casing).
8.9.11 Using the Multi Belt system
KRONE trailers can be equipped with the
Multi Belt load securing system. The Multi
Belt system consists of a tension strap that
is fixed to the Multilock external frame (see
"8.9.1 Using the Multi-Lock external frame",
pg.138) and equipped with an additional
wire hook.
1
Fig.8-44: Multi Belt fixed stop on the Multi-
lock external frame
1 Fixed stops for tension straps
8.9.12 Using the MultiSteel system
The Multi Steel versions of KRONE trailers
secure reinforcement mats, lattice girders,
and 2D/3D elements in a form-fitting fash-
ion. The Profi Liner Multi Steel is available
as a plateau or board wall version.
Steel mat packages that are 5 or 6m in
length and have a maximum weight of 25t
can be transported with the Profi Liner
Multi Steel.
The Multi Steel system consists of variably
positionable plug-in posts with an integ-
rated lashing belt guide and six tensioning
devices for wire ropes and tension straps.
Two plug-in posts supported toward the
front are used as a stop for the load. Re-
movable post sockets with plug-in posts
are used as a side limitation. Post sockets
for plug-in posts are available in the middle
of the chassis and at the vehicle end for
rearward securing.
