LOADING AND SECURING
150
Operating instructions • Semitrailer • 505369471-04 • 02/2019
► Close the pump valve on the front
corner post.

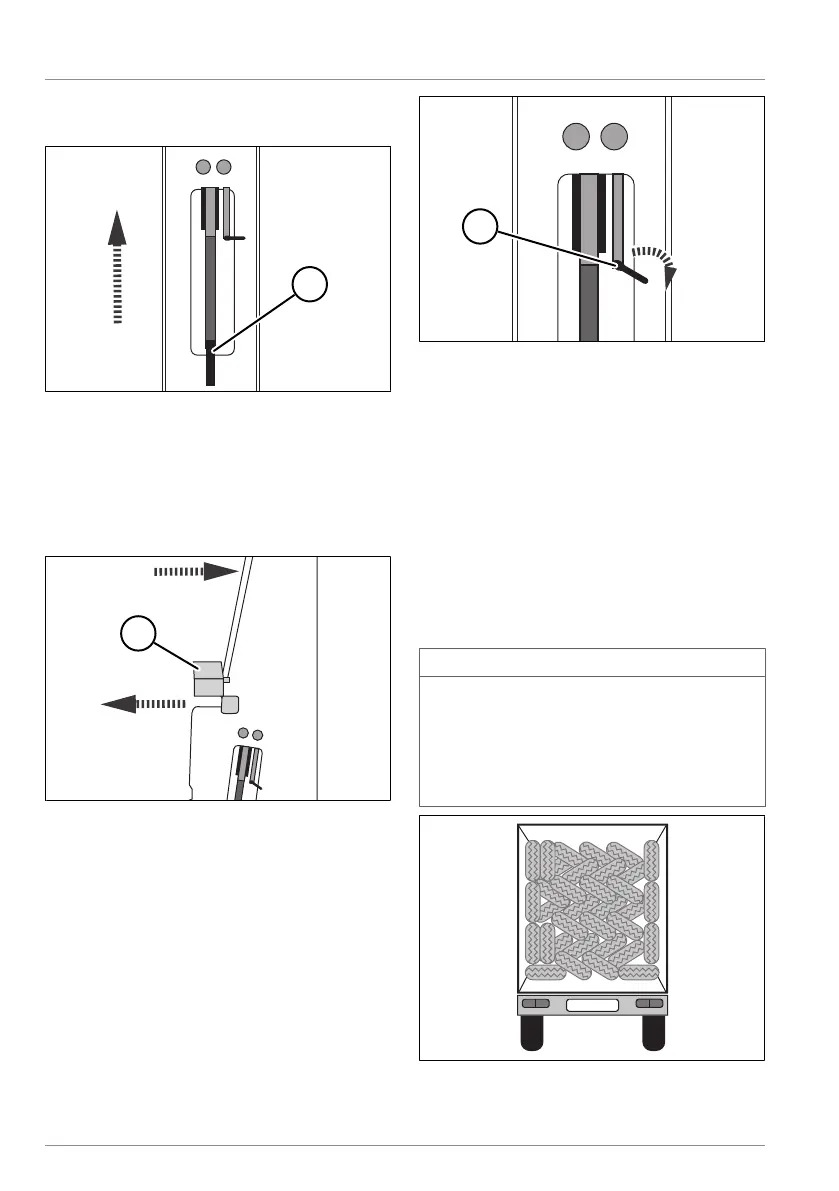

Fig.8-38: Actuating the hand pump for cable
tensioning
1 Lever
► Actuate the lever on the hand pump
until the lock reaches the highest pos-
sible position.
Fig.8-39: Fixing the lock at the highest pos-
sible position
1 Locking mechanism
► Fix the lock at the highest possible po-
sition.
WARNING!Risk of crushing when open-
ing the pump valve! Wear protective
gloves.
Fig.8-40: Opening the pump valve
1 Pump valve
► Open the pump valve to relieve the
stress on the hand pump.
► Repeat all the work steps on the rear
corner posts.
► Perform the work steps on both sides
of the vehicle.
ü The Multi Tyre system is closed.
Instructions for loading tyres according
to WDK Directive 223
INFO
For load securing with partial loads, the
tension straps must be crossed over. For
the transverse lashing, the straps that are
attached to the ropes in the vehicle longit-
udinal direction must be tensioned with
tension straps.
Fig.8-41: Tyres loaded in a laced stack
