► Move the strap net lengthwise to the
required position.
► Place the strap net loosely around the
load.
► Hook the strap ratchet with wire hook
onto the Multi Lock external frame.
1
2

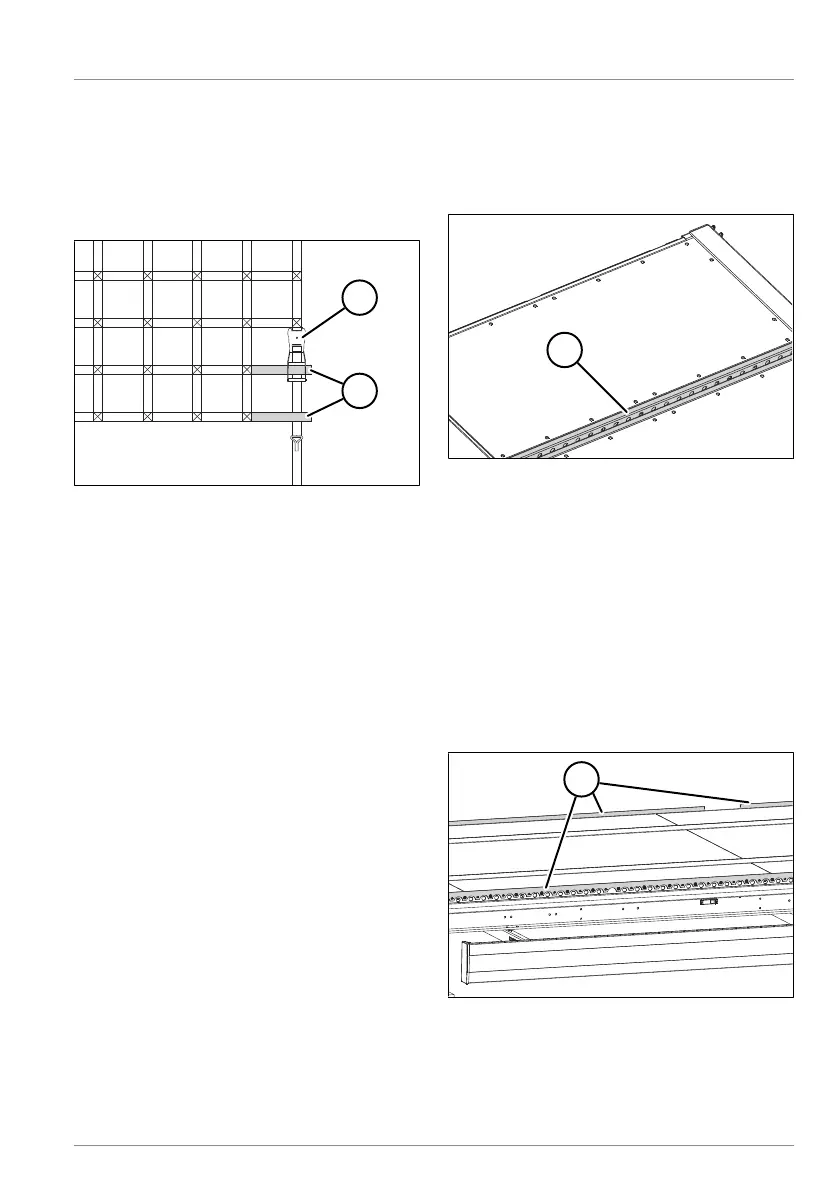

Fig.8-53: Thread the tension ratchet
through the strap eyelets
1 Tension ratchet
2 Strap eyelets
► Tension the tension straps with the
strap ratchet until the clamping device
is locked.
At certain load compartment heights,
the strap ratchet must first be threaded
through both bottom strap eyelets in
order to tension the system (see "Fig.
8-53: Thread the tension ratchet through
the strap eyelets", pg.155).
ü The load is secured with the Multi Grid
system.
8.9.14 Multi Rail lashing rail
The Multi Rail lashing rail is integrated into
the centre of the floor of building material
trailers and runs continuously over the en-
tire length of the trailer.
1
Fig.8-54: Multi Rail lashing rail
1 Multi Rail lashing rail
The lashing rail has two lashing points
every 100 mm, each with 2,000 daN lash-
ing load. The load may not exceed 8,000
daN in total across a length of 1,000 mm.
8.9.15 Multi Screw system
KRONE trailers can be equipped with the
Multi Screw load securing system. The
Multi Screw pallet stop elements are
screwed to the Multilock external frame.
1
Fig.8-55: Multi Screw on Multilock external
frame
1 Pallet stop elements
