LOADING AND SECURING
Operating instructions • Semitrailer • 505369471-04 • 02/2019
163
1
2
3
45

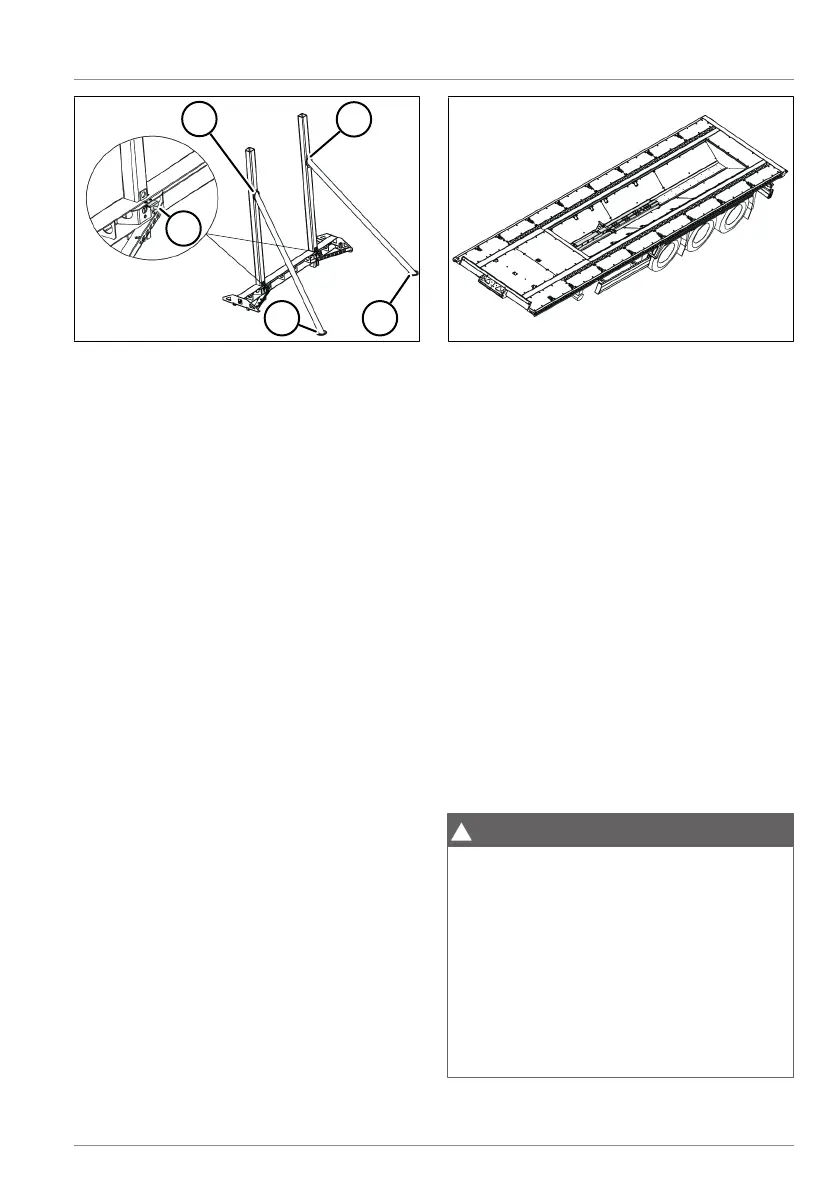

Fig.8-67: Posts and struts
1 Retainer bolt for the posts
2 Connection post/left strut
3 Connection post/right strut
4 Right strut/grid rail
5 Left strut/grid rail
► Insert the left strut in the holes of the
post.
ð The bottom end of the strut is po-
sitioned above the corresponding
hole in the grid rail.
► Insert the right strut in the holes of the
right post.
ð The bottom end of the strut is po-
sitioned above the corresponding
hole in the grid rail.
► Move the retainer bolts for the posts to
Position 3 (see "Fig. 8-65: Locking posi-
tions for retainer bolts", pg.162)so that the
posts are seated in the transverse
beam up to the stop.
► By lowering the posts, the struts are
immersed in the intended holes in the
grid rail. If necessary, move the struts
slightly until they are immersed.
► Move the retainer bolts for the posts to
Position 1 (see "Fig. 8-65: Locking posi-
tions for retainer bolts", pg.162).
ü The posts are secured and installed.
Removing the Vario Coil system
► Lift both struts out of the grid rail and
remove them from the post.
Fig.8-68: Deposit in the coil well
► Deposit the struts in the coil well.
► Move the retainer bolts for the posts to
Position 3 (see "Fig. 8-65: Locking posi-
tions for retainer bolts", pg.162).
► Lift the posts upwards out of the trans-
verse beam.
► Deposit the posts in the coil well.
► Move both retainer bolts on the trans-
verse beam to Position 3 (see "Fig. 8-65:
Locking positions for retainer bolts",
pg.162).
► Slide the transverse beam towards the
rear of the vehicle.
► Lift the transverse beams upwards out
of the grid rails.
► Deposit the transverse beam with the
square bolts upwards in the coil well.
8.13 Transporting paper
!
WARNING
Risk of accident due to improper load-
ing and securing of paper rolls!
Paper rolls can slip if improperly loaded
and secured. This can result in material
damage and personal injury.
► Only transport paper rolls with the Pa-
per Liner.
► Secure the paper rolls with the appro-
priate securing devices and equip-
ment.
