► Lift the channel rail together with the
curtain using the curtain handle in-
stalled on the channel rail.
► Slide the curtain forwards.
ð The channel rail is unhooked.
► Slide the curtain to the rear.
ü The side curtain is opened at the front.
Closing the side curtain at the front
(version2)
► Slide the curtain forwards.
2
1

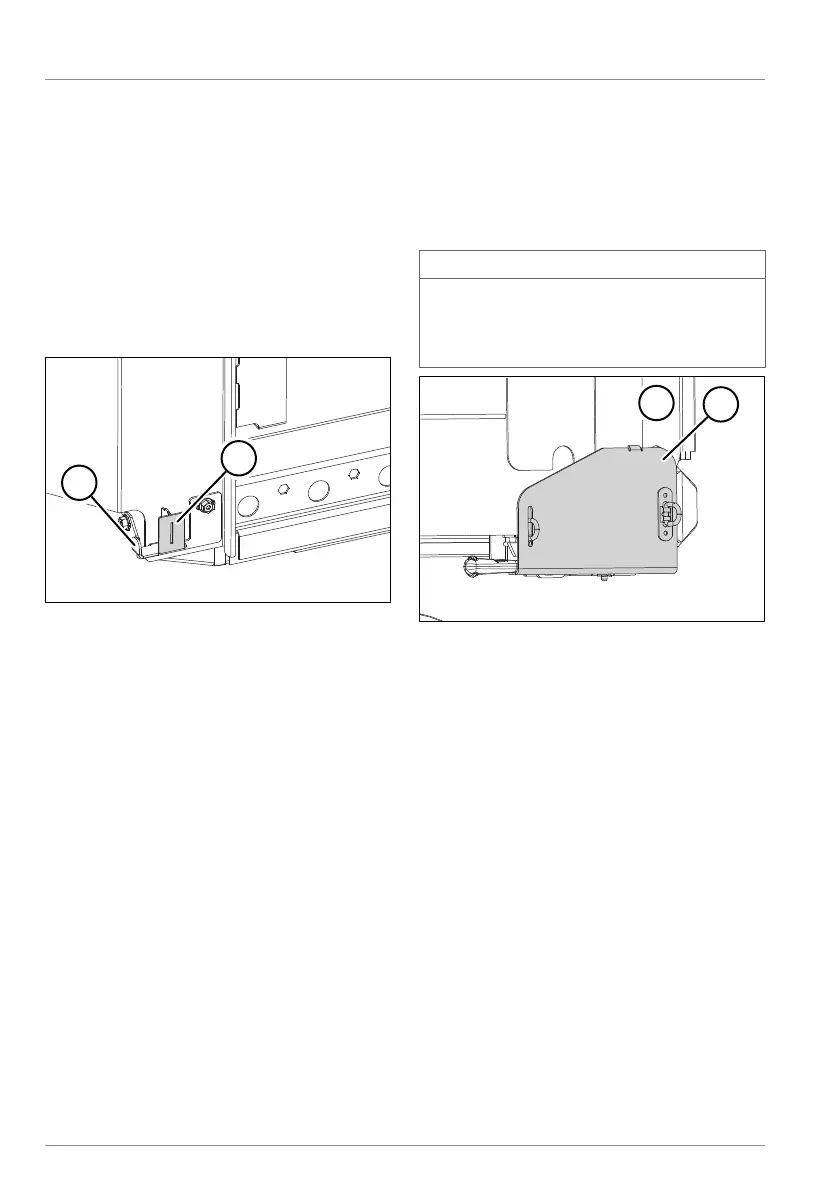

Fig.6-29: Version 2 tension shaft support
1 Tension shaft support
2 Bracket
► Lift the channel rail together with the
curtain using the curtain handle in-
stalled on the channel rail.
► Slide the curtain forwards.
► Guide the curtain at the front below the
sealing lip using the channel rail.
► Attach the channel rail to the tension
shaft support.
► Lift the channel rail together with the
curtain onto the bracket.
► Tighten the curtain using the rear cur-
tain tensioning device (see "6.2.5 Rear
curtain tensioning device", pg.82).
► Secure the closed and longitudinally
tensioned curtain with the curtain
buckles (see "6.2.2 Curtain buckles",
pg.75).
► If necessary, install the curtain rope
(see "6.2.6 Curtain rope bracket", pg.84).
ü The side curtain is closed at the front.
6.2.5 Rear curtain tensioning device
TIR Liner
INFO
The curtain tensioning device can be fitted
with a folding cover plate to prevent unau-
thorised opening (e.g. with a bonded seal
on the TIR Liner).
1
2
Fig.6-30: Rear curtain tensioning device
protection
1 Rear gantry
2 Cover plate for the tension lever lock
Loosening and releasing the rear cur-
tain tensioning device
► If necessary, remove the existing cur-
tain rope.
► Release the curtain buckle (see "6.2.2
Curtain buckle", pg.75).
