8.13.3 Securing the paper rolls
Securing the paper rolls across the dir-
ection of travel
1
2
3
4

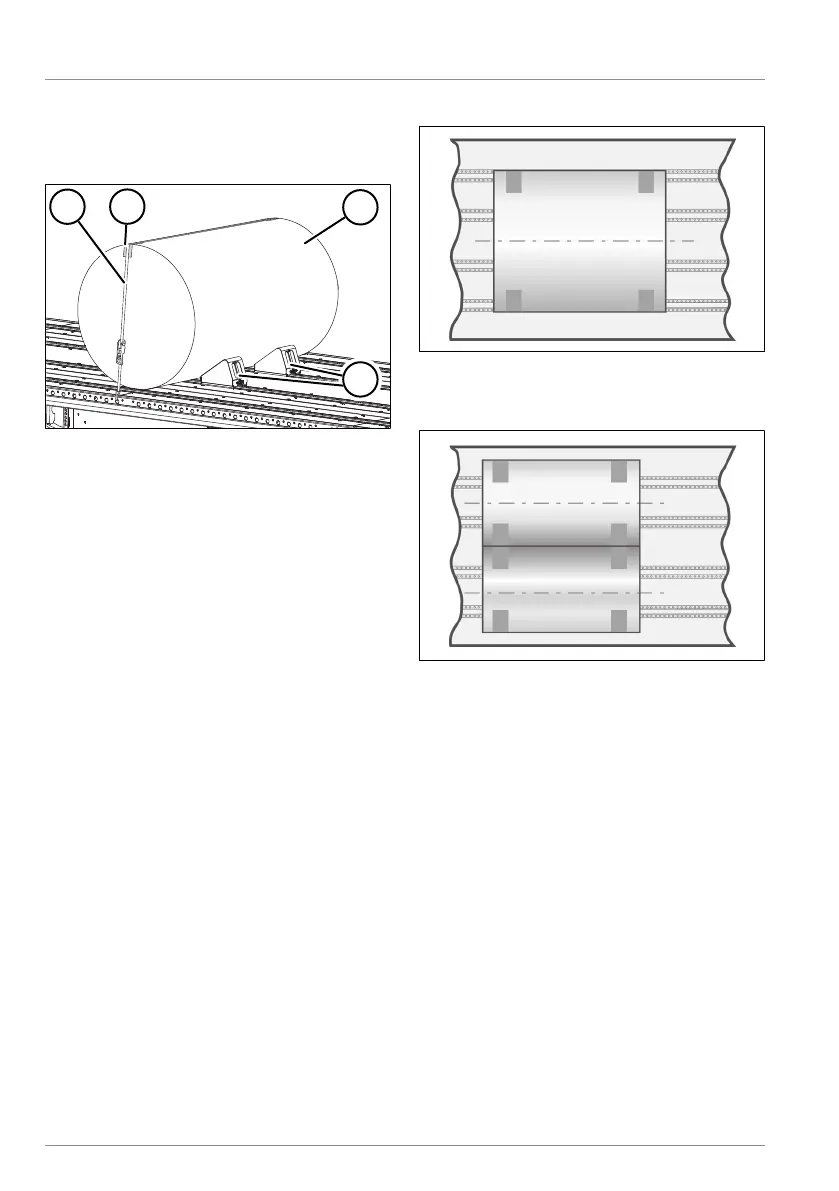

Fig.8-74: Securing the paper rolls across
the direction of travel
1 Tension strap
2 Edge protection
3 Paper roll
4 Paper wedges
► Insert the paper wedges into the per-
forated rails according to the diameter
of the paper rolls (see "8.13.1 Using the
paper wedge", pg.164).
► Lock the paper rolls by adjusting the
paper wedges (see "8.13.1 Using the pa-
per wedge", pg.164).
► Apply edge protection.
► Secure the paper rolls with the tension
straps.
ü The paper rolls are secured.
Securing the paper rolls along the direc-
tion of travel
The following can be transported along to
the direction of travel
○ One large paper roll, or
Fig.8-75: One large paper roll lengthwise
○ Two small paper rolls next to each
other.
Fig.8-76: Transporting two small paper rolls
lengthwise
► Insert the paper wedges into the per-
forated rails according to the diameter
of the paper rolls (see "8.13.1 Using the
paper wedge", pg.164).
► Lock the paper rolls by adjusting the
paper wedges (see "8.13.1 Using the pa-
per wedge", pg.164).
