Inserting the pallet roller into the perfor-
ated rail
1 2
3

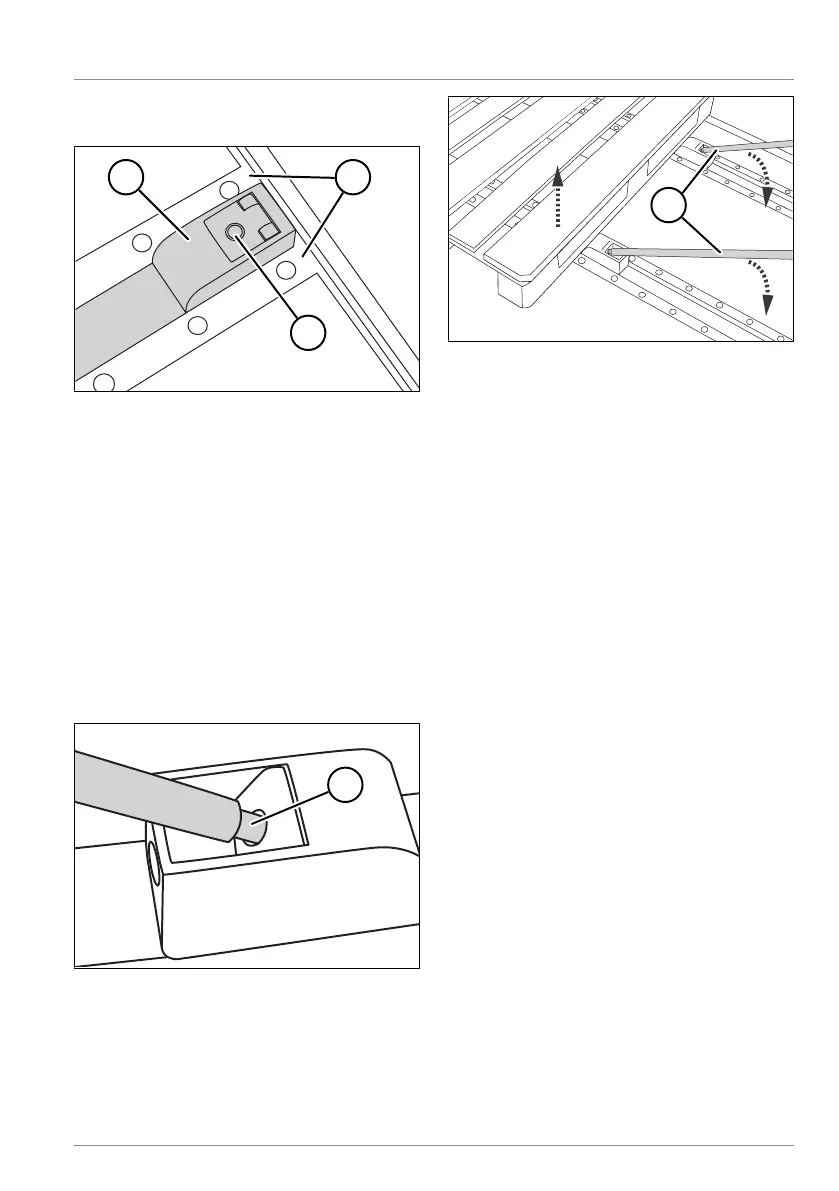

Fig.8-71: Inserting the pallet roller
1 Pallet rollers
2 Sliding rail
3 Mounting hole
► Remove the perforated rail cover.
► If necessary, remove the dirt from the
perforated rails.
► Insert the pallet roller into the perfor-
ated rails.
ü The pallet roller is inserted in the per-
forated rails.
Lifting up the pallet
1
Fig.8-72: Inserting a control lever into the
pallet roller
1 Control lever
► Insert the control lever with the lock
positioned downwards into the mount-
ing hole.
1
Fig.8-73: Lifting up the pallet
1 Control lever
► Swivel the control lever downwards.
► The pallet is lifted.
Lowering the pallet
► Insert the control lever with the lock
positioned downwards into the mount-
ing hole.
► Swivel the control lever upwards.
ü The pallet is lowered.
Shifting the load
► Shift the load.
ü The load is shifted.
Pulling the load
► Swivel the auxiliary handle on the con-
trol lever downwards.
► Pulling the load.
ü The load has been pulled.
