VEHICLE OVERVIEW
20
Operating instructions • Semitrailer • 505369471-04 • 02/2019
3 Vehicle overview
The following illustrations provide an ex-
ample of the design of the trailer in the slid-
ing curtain and full-tarp with board wall ver-
sions.

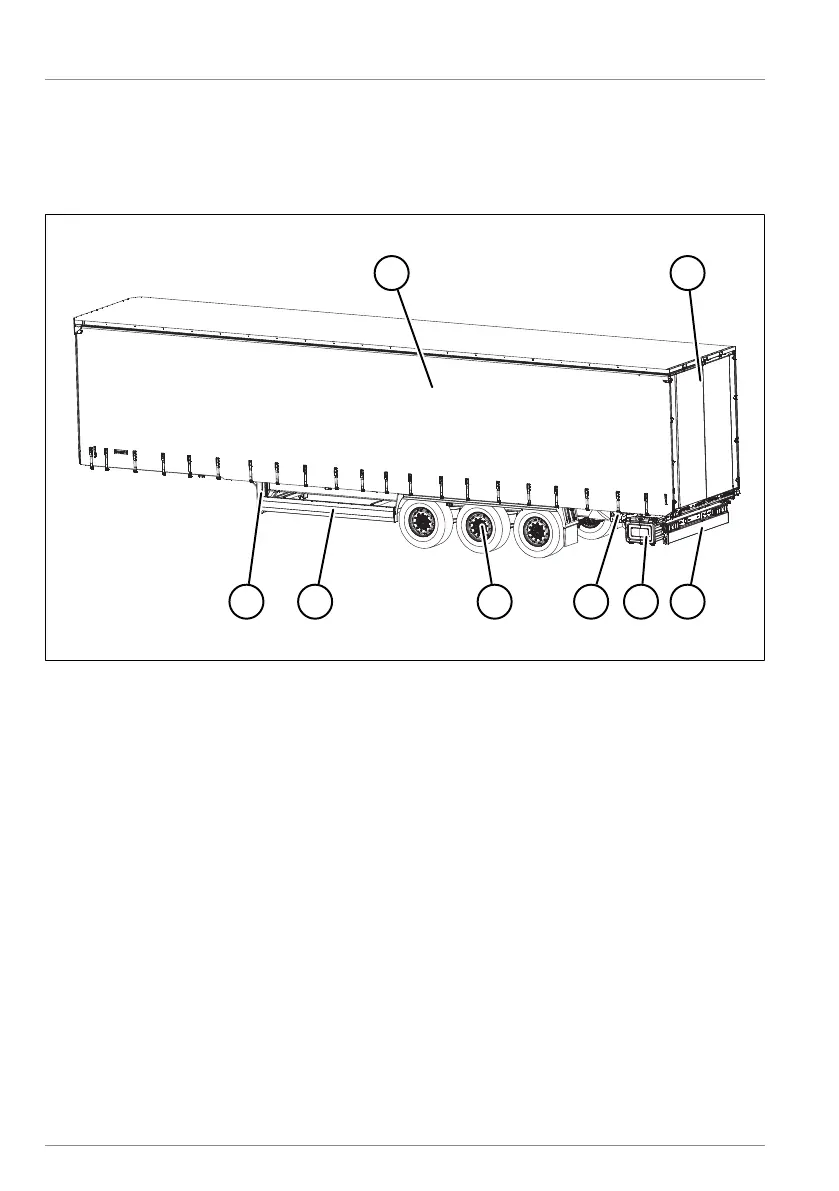

Fig.3-1: Trailer with sliding curtain superstructure
1 Sliding curtain superstructure
2 Rear gantry
3 Rear underrun protection
4 Tool box (option)
5 Control unit for brake system/air suspension
6 Axle assembly
7 Side collision protection
8 Landing leg winches
