LOADING AND SECURING
Operating instructions • Semitrailer • 505369471-04 • 02/2019
159

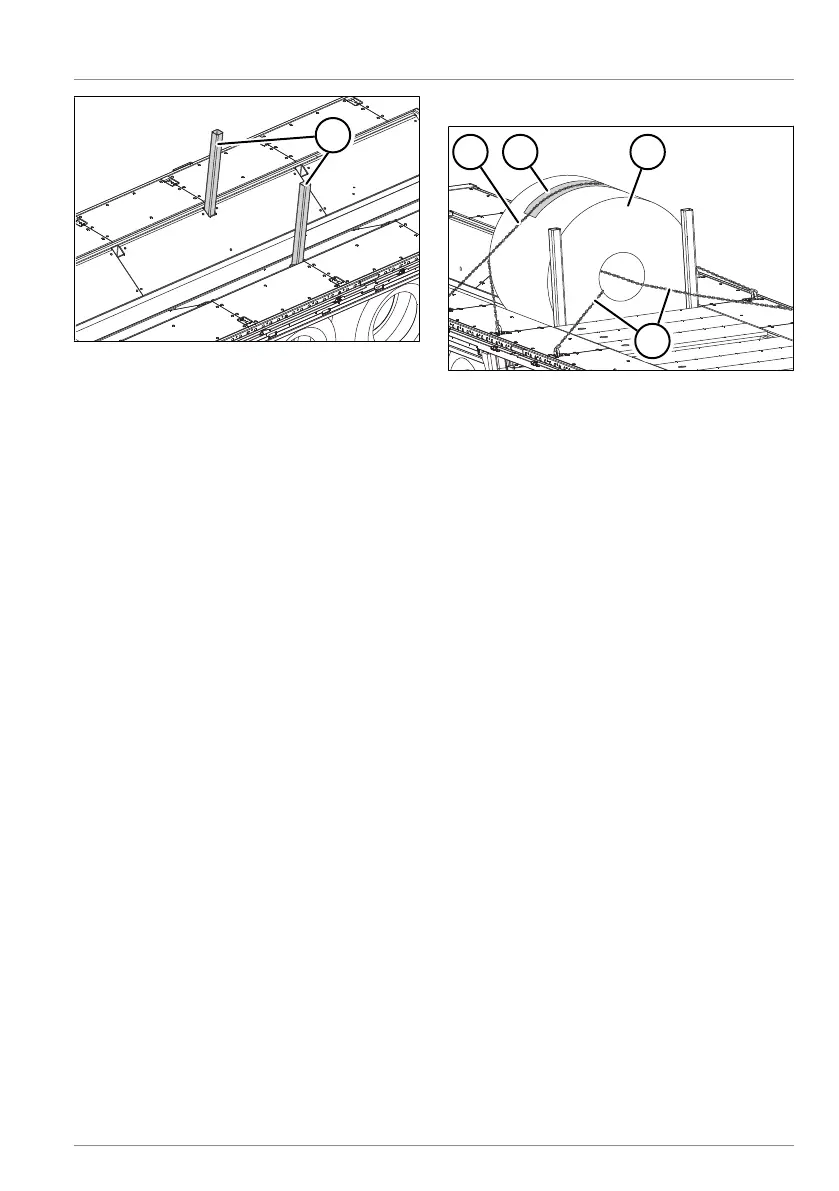

Fig.8-61: Inserting plug-in posts
1 Plug-in posts
► Insert plug-in posts from the floor of
the coil well into the post sockets to
prevent the load from slipping towards
the front wall.
ü The coil well is prepared.
Coil loading
► Release the coil directly behind the
plug-in posts.
► Allow the coil to rest up flush.
ü The coil is loaded.
8.12.2 Coil lashing
Coils can be lashed with chains or with ten-
sion straps. To achieve the best possible
lashing angle, special load securing must
be used when securing coils with an ex-
ternal diameter of 2.1m or greater and
when securing coils that are at risk of tip-
ping.
Lashing the coil with chains
Fig.8-62: Lashing the coil with chains
1 Lashing down the coil transversely
2 Spacer
3 Coil with small diameter
4 Chains lashed diagonally
► To protect the load, position a suitable
underlay material under the chain.
► Lash down the coil across the direction
of travel.
► Feed two more chains through the
opening of the coil.
► Lash down the coil diagonally.
► Lash down the chains to the lashing
eyelets.
ü The coil has been lashed down.
