Krone Profi Liner - Double-deck loading

LOADING AND SECURING
156
Operating instructions • Semitrailer • 505369471-04 • 02/2019
8.10 Double-deck loading
!
WARNING
Risk of accident caused by incorrect
load securing and weight distribution!
When it comes to double-deck loading
and unloading, incorrect load securing and
uneven weight distribution can result in
personal injury and material damage.
► Keep the centre of gravity of the load
as low as possible.
► Position the longitudinal and trans-
verse beams straight so that they are
not at a slope.
► Place the heaviest load on the load
compartment floor, and the lighter
freight on the transverse beams.
► Observe the maximum working load
limit of the longitudinal beams, the
transverse beams, and the posts.
Consult the manufacturer's specifica-
tions for the working load limit of the
transverse beams.
► For double-deck loading, secure the
load items against sliding by installing
the transverse beams at different
levels.
For double-deck loading, the weight of the
load may not exceed 400kg per pallet.
Max. 400 kg
MMaaxx.. 440000 kkgg
MMaaxx.. 440000 kkgg
MMaaxx.. 440000 kkgg
Max. 400 kg
Max. 400 kg
Max. 400 kg
MMaaxx.. 440000 kkgg
MMaaxx.. 440000 kkgg
MMaaxx.. 440000 kkgg
MMaaxx.. 440000 kkgg
MMaaxx.. 440000 kkgg
MMaaxx.. 440000 kkgg
MMaaxx.. 440000 kkgg
MMaaxx.. 440000 kkgg
MMaaxx.. 440000 kkgg
Max. 400 kg
Max. 400 kg
Max. 400 kg
Max. 400 kg
Max. 400 kg
Max. 400 kg
Max. 400 kg
Max. 400 kg
Max. 400 kg

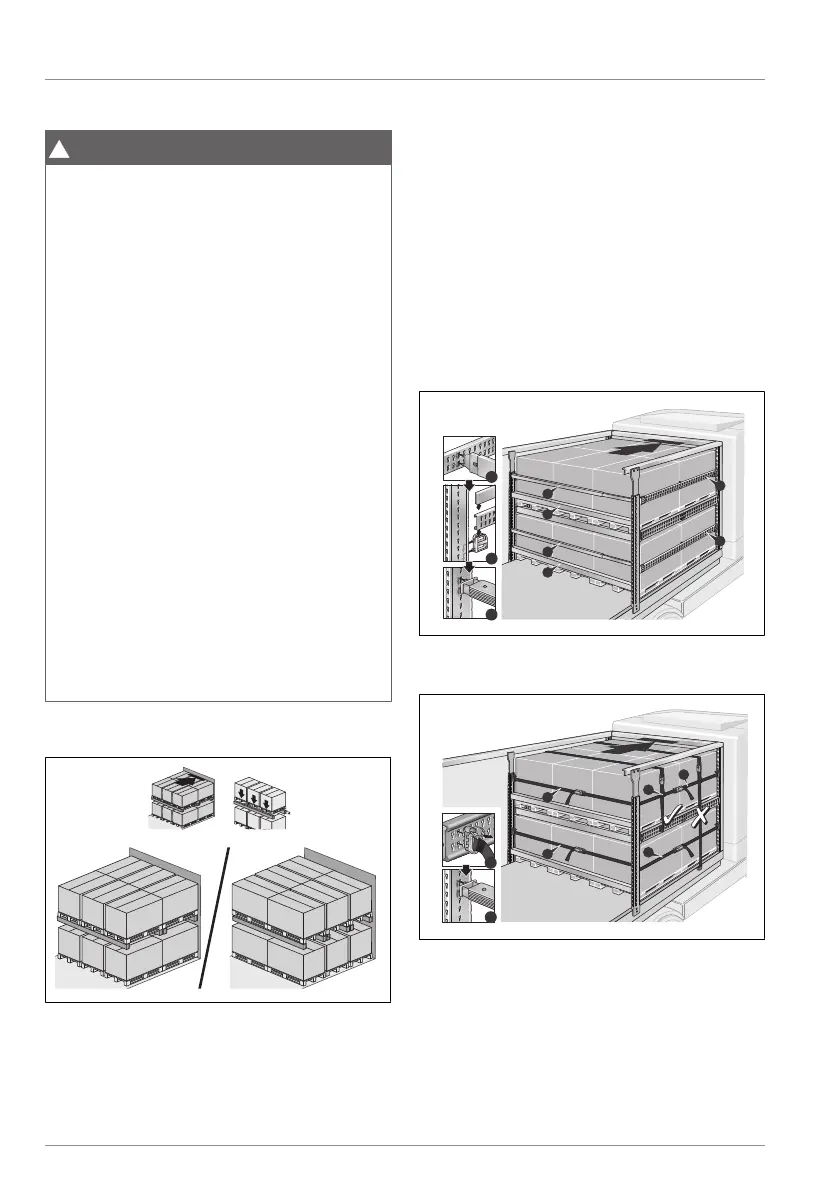

Fig.8-56: Load systematics
Securing the load
► Insert the longitudinal beams (see
"6.2.11.2 Inserting and removing the longit-
udinal beams", pg.102).
► Insert the transverse beams (see
"6.2.11.3 Inserting and removing the trans-
verse beams", pg.103).
► Load the trailer with positive locking
(see "8.3 Ensuring form-fitting", pg.136)
from the front wall to the rear and the
side. Only load the second level when
the lower level is fully loaded.
► Laterally secure the load with plug-in
laths (see "6.2.11.4 Moving the lath sock-
ets for plug-in laths", pg.104).
► Hook the end beams onto the rear-
ward load securing.
F
C
D
F
C
F
C
D
D
Fig.8-57: Load securing with beams
► Only lash each load at one level.
E
E
E
E
E
E
F
Fig.8-58: Load securing with beams and
belts
ü The load is secured.
