SUPERSTRUCTURE OPERATION
102
Operating instructions • Semitrailer • 505369471-04 • 02/2019

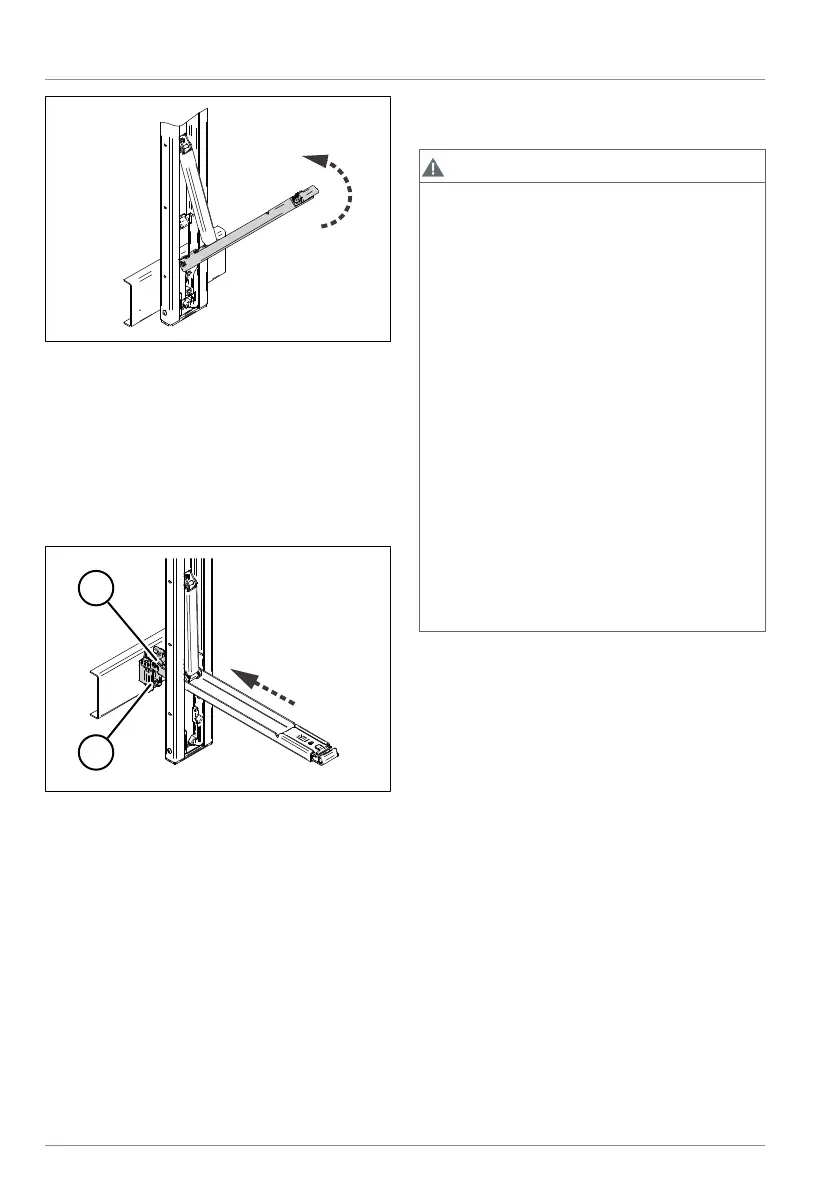

Fig.6-76: Closing the locking lever
► Close the locking lever.
► Slide the posts in the desired direction.
► Position the posts in front of the post
pockets.
► Press in the locks on the locking lever.
► Pull out the locking lever from the post
profile.
Fig.6-77: Locking lever folded down
1 Fastening mechanism on the locking
lever
2 Post pockets
► Place the locking lever's fastening
mechanism on the post pocket.
► Press the post against the chassis.
► Fold up the locking lever to the stop,
until the locks engage.
ü The posts have been moved and are
locked.
6.2.11.2 Inserting and removing the lon-
gitudinal beams
CAUTION
Risk of accident due to improper use of
the transverse beams and longitudinal
beams!
Improper handling of the longitudinal and
transverse beams can injure people and
cause material damage.
► Follow the loading instructions.
► Keep the centre of gravity of the load
as low as possible. Place the heaviest
load on the load compartment floor,
and the lighter freight on the trans-
verse beams.
► Observe the maximum working load
limit of the longitudinal beams, trans-
verse beams, and posts. The working
load limit for the transverse beams is
listed on the stickers.
► Secure the load against sliding. To do
so, install the transverse beams at dif-
ferent levels.
Longitudinal beams can be fastened
between the double-deck posts.
Inserting the longitudinal beams
► If necessary, lock the posts in the
fastening points on the vehicle frame
provided.
► Insert the fixed ends of the longitudinal
beams.
