SUPERSTRUCTURE OPERATION
Operating instructions • Semitrailer • 505369471-04 • 02/2019
101
1 2

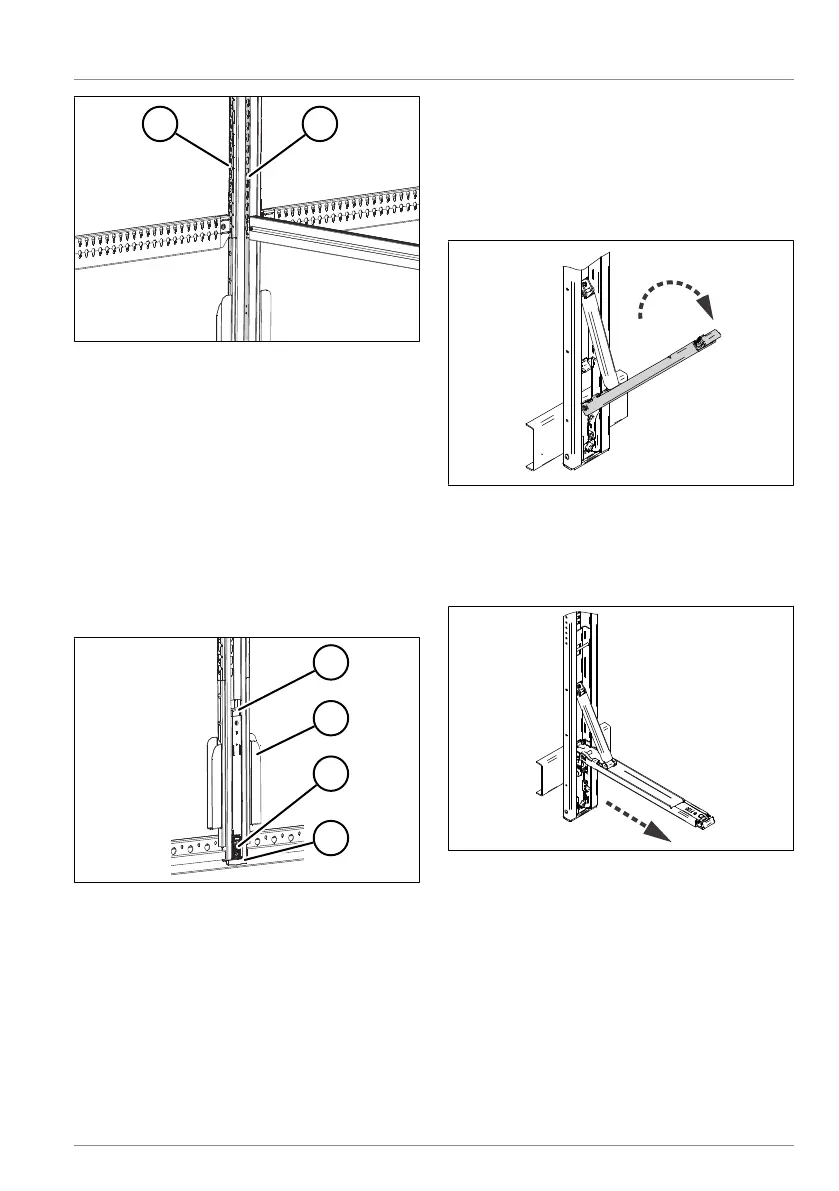

Fig.6-72: Double-deck post
1 Lateral hole pattern for longitudinal
beams
2 Inside hole pattern for transverse
beams
6.2.11.1 Moving and locking double-
deck posts
KRONE trailers with double-deck super-
structure are equipped with double-deck
posts. Double-deck posts have a set of lath
sockets above the floor for four plug-in
laths.
1
2
3
4
Fig.6-73: Double-deck post
1 Lock
2 Lath depot
3 Post pockets
4 Post retainer
► Prepare to move the posts (see "6.2.10
Centre posts", pg.96).
► Remove the longitudinal and trans-
verse beams of the double-deck su-
perstructure.
► Press in the locks on the locking lever.
► Pull out the locking lever from the post
profile.
Fig.6-74: Folding down the locking lever
► Completely fold down the locking lever
until the post retainer is released from
the chassis and the post slides down
from the post pocket.
Fig.6-75: Swivelling the post away from the
vehicle
► Swivel the posts away from the
vehicle.
