LOADING AND SECURING
152
Operating instructions • Semitrailer • 505369471-04 • 02/2019
1
5
3
2
4

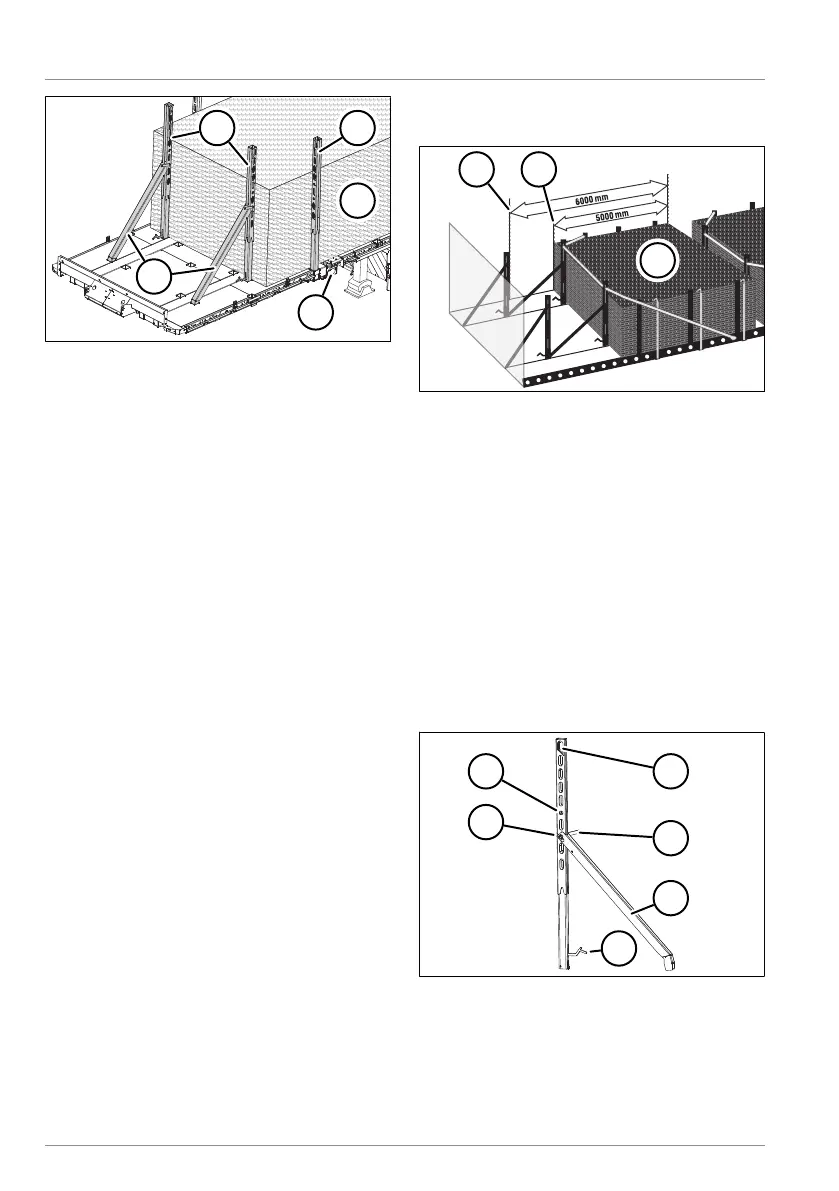

Fig.8-45: Multi Steel system with steel mat
loading
1 Plug-in posts with foot lever
2 Lateral plug-in post in extendible post
socket
3 Steel mats
4 Tensioning device with lashing ring
5 Support struts
Reinforced lashing holes and MultiLash
lashing rings for lashing the load are avail-
able in the side rails of the trailer.
For loads with excess width, 3000daN
lashing hooks below the external frame
and 5000daN 180° lashing rings integ-
rated in the tensioning device can be used.
Securing the steel mat packages with
the MultiSteel system
1 2
3
Fig.8-46: Positioning the plug-in posts
1 Front plug-in position (steel mats 6m
in length)
2 Rear plug-in position (steel mats 5m in
length)
3 Steel mats
► Depending on the loading situation, in-
sert the plug-in posts with foot lever in
the post sockets in the front area of the
trailer in the front position (steel mats
6m in length) or in the rear position
(steel mats 5m in length).
► Insert the support strut into the post
socket.
6
5
1
2
4
3
Fig.8-47: Plug-in post with support strut
1 Integrated lashing belt guide
2 Bolt (secured with spring cotter pin)
3 Support strut
