Krone Profi Liner - Page 30

RUNNING GEAR OPERATION
30
Operating instructions • Semitrailer • 505369471-04 • 02/2019
1
2

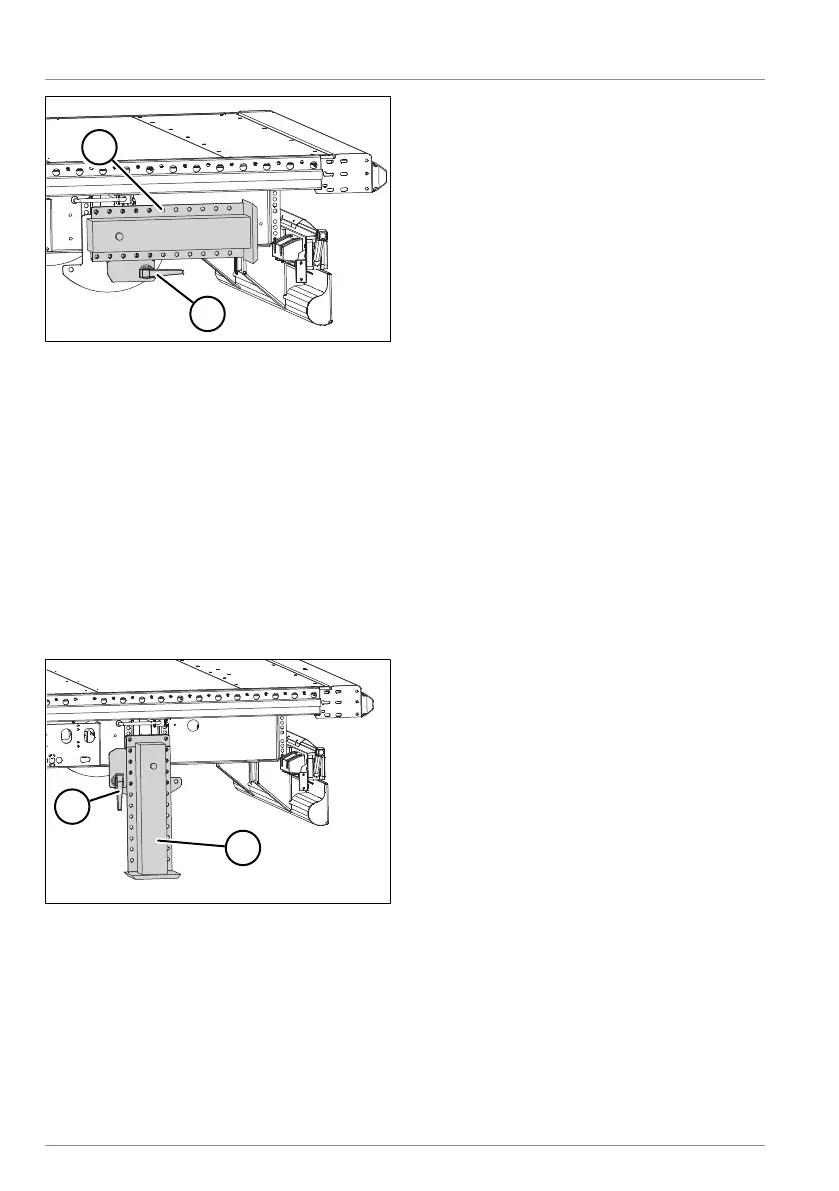

Fig.5-7: Rear brace folded in
1 Folded in rear brace
2 Hand lever for the rear brace lock
► Pull the hand lever on the rear brace
lock until the lock is released.
► Fold down the rear brace until the bolt
of the lock is in front of the hole.
► Push in the hand lever until it locks into
place.
ð The rear brace is locked.
► Also fold down and lock the second
rear brace.
1
2
Fig.5-8: Folded down rear brace
1 Hand lever for the rear brace lock
2 Rear brace folded down
► Engage the hand crank on the crank
drive shaft until it locks into place.
► Switch on high speed by pulling out
the hand crank (see "Fig. 5-6: Load
speed and high speed of the rear brace",
pg.29).
► Wind down the landing legs until they
touch the ground.
► Switch on load speed by pushing in
the hand crank (see "Fig. 5-6: Load
speed and high speed of the rear brace",
pg.29).
ð The rear braces are folded down
and extended.
► Adjust the front landing leg winch (see
"5.2 Landing leg winches", pg.25).
► Align the trailer level in the longitudinal
and transverse directions. Do not fully
unload the wheels while doing so.
► Lower the trailer with the air suspen-
sion (see "5.9 Air suspension", pg.43).
ü The rear braces have been placed in
the support position.
Putting the rear braces in the driving
position
► Check the parking brake and apply if
necessary (see "5.8.2 Parking brake",
pg.40).
► Take the hand crank from the bracket.
► Engage the hand crank on the crank
drive shaft until it locks into place.
► Set to load speed by pushing in the
hand crank (see "Fig. 5-6: Load speed
and high speed of the rear brace", pg.29).
► Wind up the landing legs until they are
unloaded.
► Set to high speed by pulling out the
hand crank (see "Fig. 5-6: Load speed
and high speed of the rear brace", pg.29).
► Wind up the landing legs up to the
stop.
► Pull the hand lever on the rear brace
lock until the lock is released.
► Fold up the rear brace until the bolt of
the lock is in front of the hole.
► Push in the hand lever until it locks into
place.
ð The rear brace is locked.
► Secure the hand crank in the bracket.
