► Place the strap hook around the lower
edge of the curtain.
► Press the lock back into the locked po-
sition until it locks into place.
ü The curtain buckle is closed.
6.2.2.2 Curtain buckle with anti-tilt ten-
sion lock
1
2

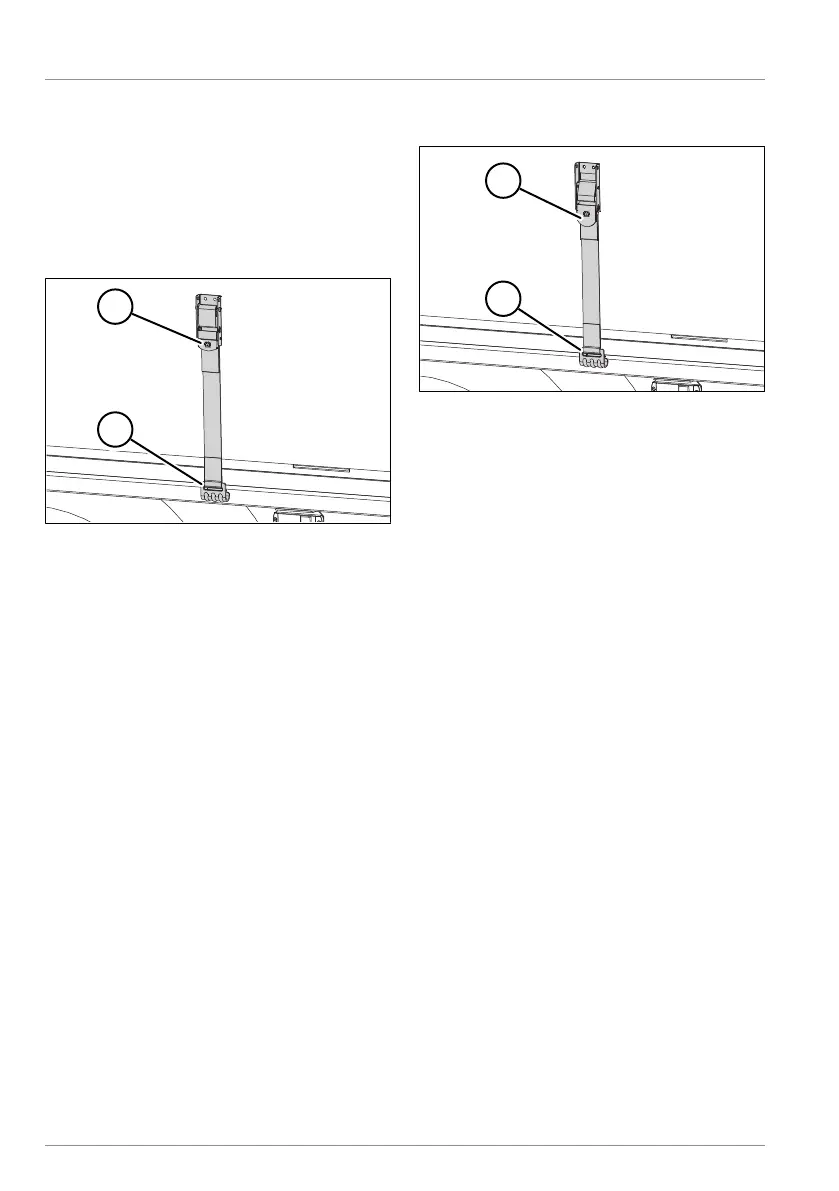

Fig.6-16: Anti-tilt curtain buckle
1 Anti-tilt device
2 Strap hook
Releasing the curtain buckle
► Press in the anti-tilt device.
► Release the strap hook on the frame.
► Relieve the curtain strap.
ü The curtain buckle is released.
Closing the curtain buckle
► Place the strap hook on the frame.
► Place the strap hook around the lower
edge of the curtain.
► Tighten the belt, if necessary.
► Press the lock back into the locked po-
sition until it locks into place.
ü The curtain buckle is closed.
6.2.2.3 Curtain buckle with knee lever
tension lock
1
2
Fig.6-17: Knee-lever curtain buckle
1 Lock
2 Strap hook
Releasing the curtain buckle
► Completely swing the lock upwards.
► Release the strap hook on the frame.
ü The curtain buckle is released.
Closing the curtain buckle
► Place the strap hook on the frame.
► Place the strap hook around the lower
edge of the curtain.
► Tighten the belt, if necessary.
► Completely swivel the lock over the
knee lever point downwards.
ü The curtain buckle is closed.
