Maintenance

106

Pos: 40.13 /Übersc hriften/Überschri ften 2/A-E/AAbweic hendes Drehmoment @ 155\mod_136 3620849669_78.doc x @ 1373212 @ 2 @ 1

12.4 Deviating Torque

Pos: 40.14 /BA/W artung/Schwader/Zinken / Zinkenarme/Prüfen der Schrauben an den Zinken nach W artungstabelle_Swadr o TC 680_TC 760_TC 760 X-tr @ 222\ mod_1392012676954_ 78.docx @ 1804815 @ 3 @ 1

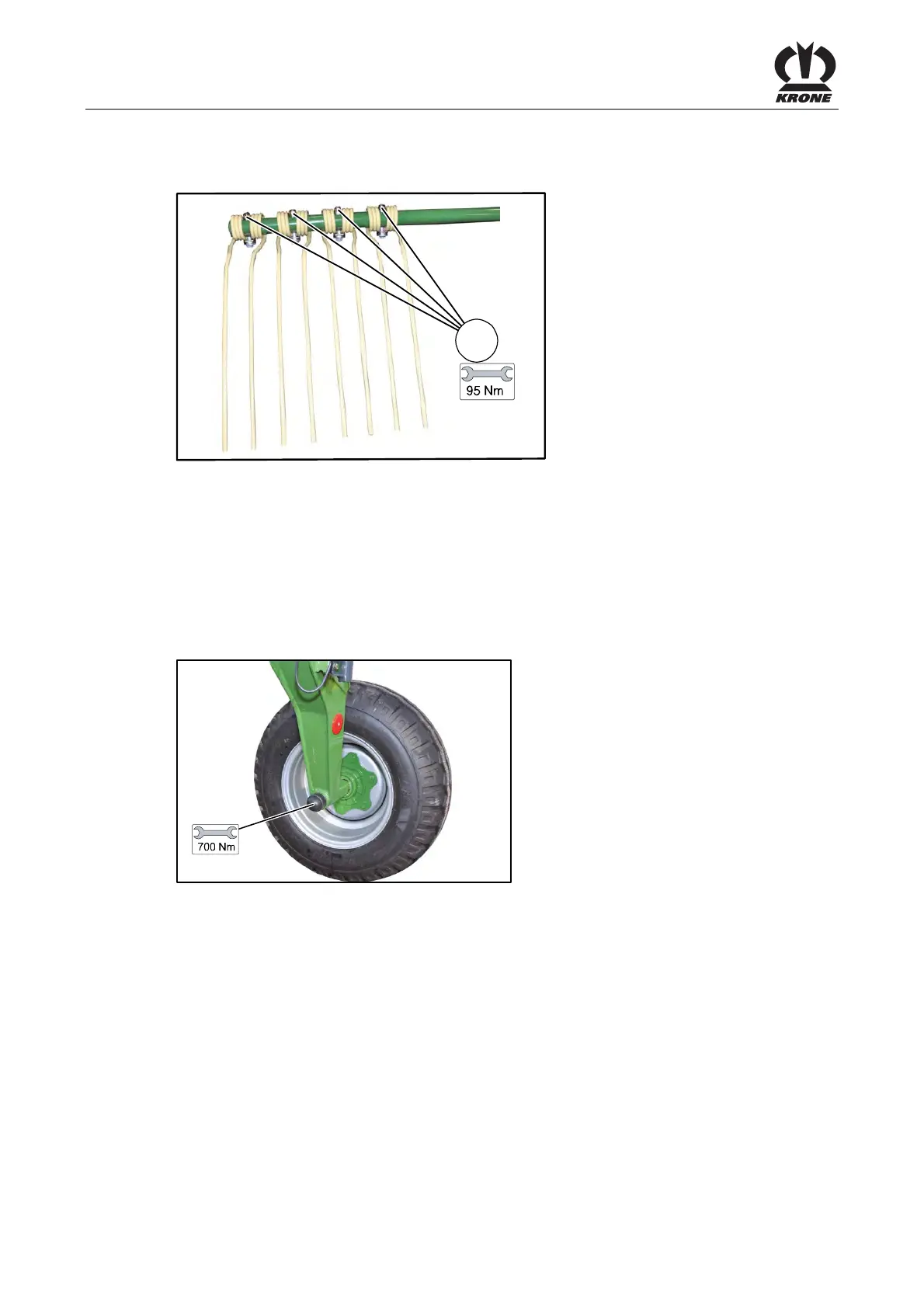

12.4.1 Testing the Screws on the Tines

SW700030_1

Fig. 67

Testing the Screws on the Tines: According to the Maintenance Table

Pos: 40.15 /BA/W artung/Schwader/Zinken / Zinkenarme/Prüfen der Schrauben an den Zinken_Vor gehen bei abweichendem An zugsdrehmoment @ 240\ mod_1395147752001_78. docx @ 1891022 @ @ 1

When having released the screws,

• remove the nut.

• apply adhesive (high-strength) on the threading overhang of the screw.

• lift the tines on the tine end and tighten the nut to the torque specified below.

Pos: 40.16 /BA/W artung/Reifen/Schwader /Anziehdrehmoment der Räder am Fahrwerk Swadro TC 680_ TC 760_TC 760 X-tr @ 222\mod_ 1392014049234_78.doc x @ 1805141 @ 3 @ 1

12.4.2 Torque of Wheels on the Running Gear

SW700079_1

Fig. 68

Check locknut: According to the maintenance table
