11.6 Setting of tines
Pos: 36.29 /Übersc hriften/Zwischenüber schriften/A-E/ Bei Ausführung "Zusatzkr eisel" @ 504\mod_1498 545699491_78.docx @ 347 2908 @ @ 1
For version with “additional rotor”
Pos: 36.30 /BA/Einste llungen/Wender/ Zinkeneinstellung_ Text @ 279\mod_14054148 81295_78.docx @ 2151495 @ @ 1

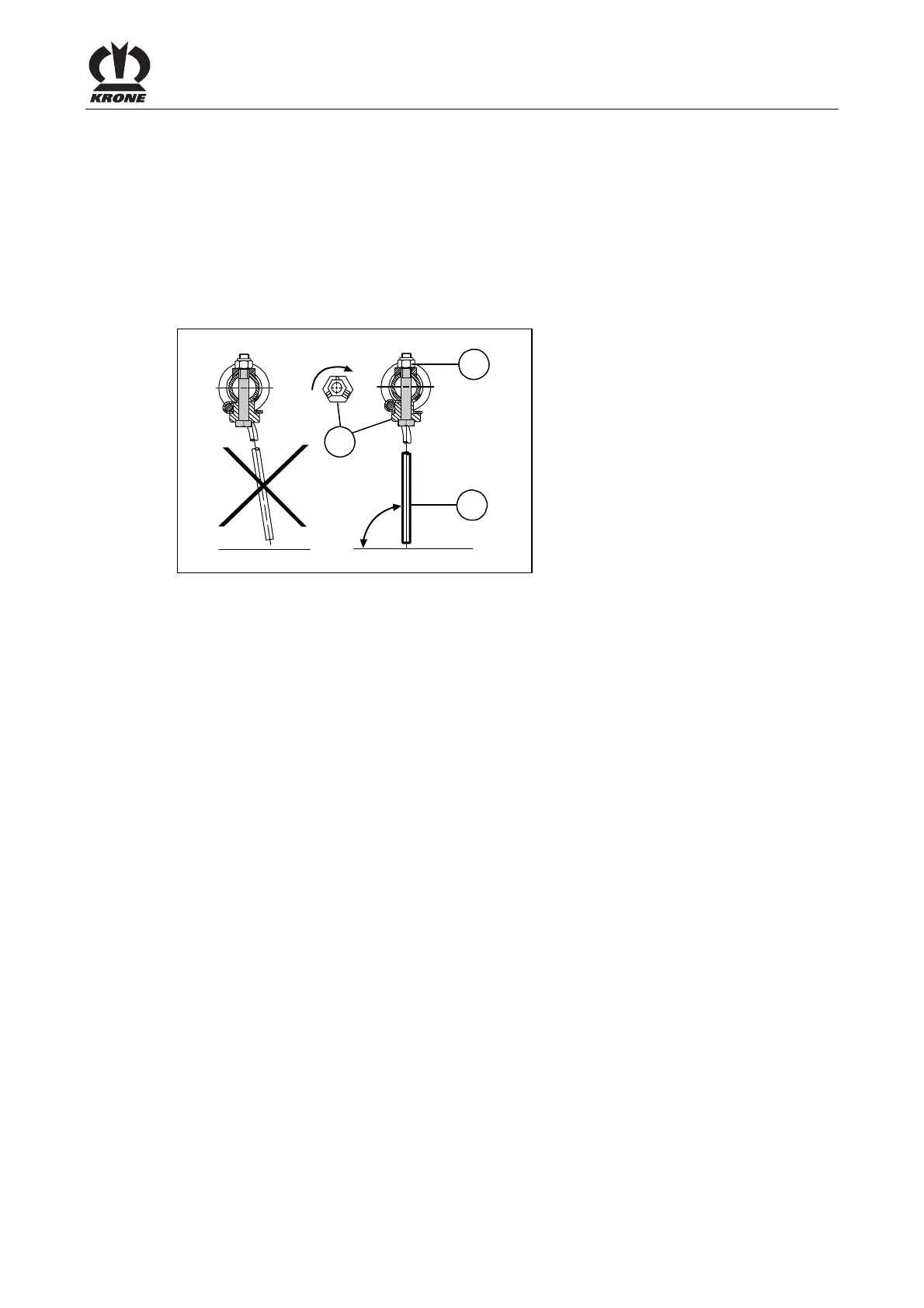

The tines (3) must be aligned vertically to the surface. The setting of the tines can be changed
by turning the eccentrics.
For setting:
• Unscrew fastening screw (1)
• Turn eccentrics (2) one level further
• Tighten the fastening screw to 95 Nm
Pos: 36.31 /BA/Einste llungen/Wender/ Zinkeneinstellung_ Bild @ 279\mod_1405414876 433_78.docx @ 2151465 @ @ 1
KW-1-058
1
3
9
0
2
Fig. 66
