Krone Swadro TC 680 User Manual

Settings
94
Pos: 36.6.23 /Überschr iften/Überschr iften 3/A-E/BBei Ausf ührung "Tandemfahrwerk mit nachlaufenden Räder n" @ 427\mod_1455009845 360_78.docx @ 2957261 @ 3 @ 1
11.1.3 For the “Tandem Chassis with Trailing Wheels” Version
Pos: 36.6.24 /BA/Ei nstellungen/Schwader /Kreiselfahrwerk/ Kreiselfahrwerk B ild Tandem Swadro TC 680_TC 760_ TS 620_TS 680 @ 247\mod_139642 3777783_78.doc x @ 1925345 @ @ 1
SW700093
I
II
1
2
III

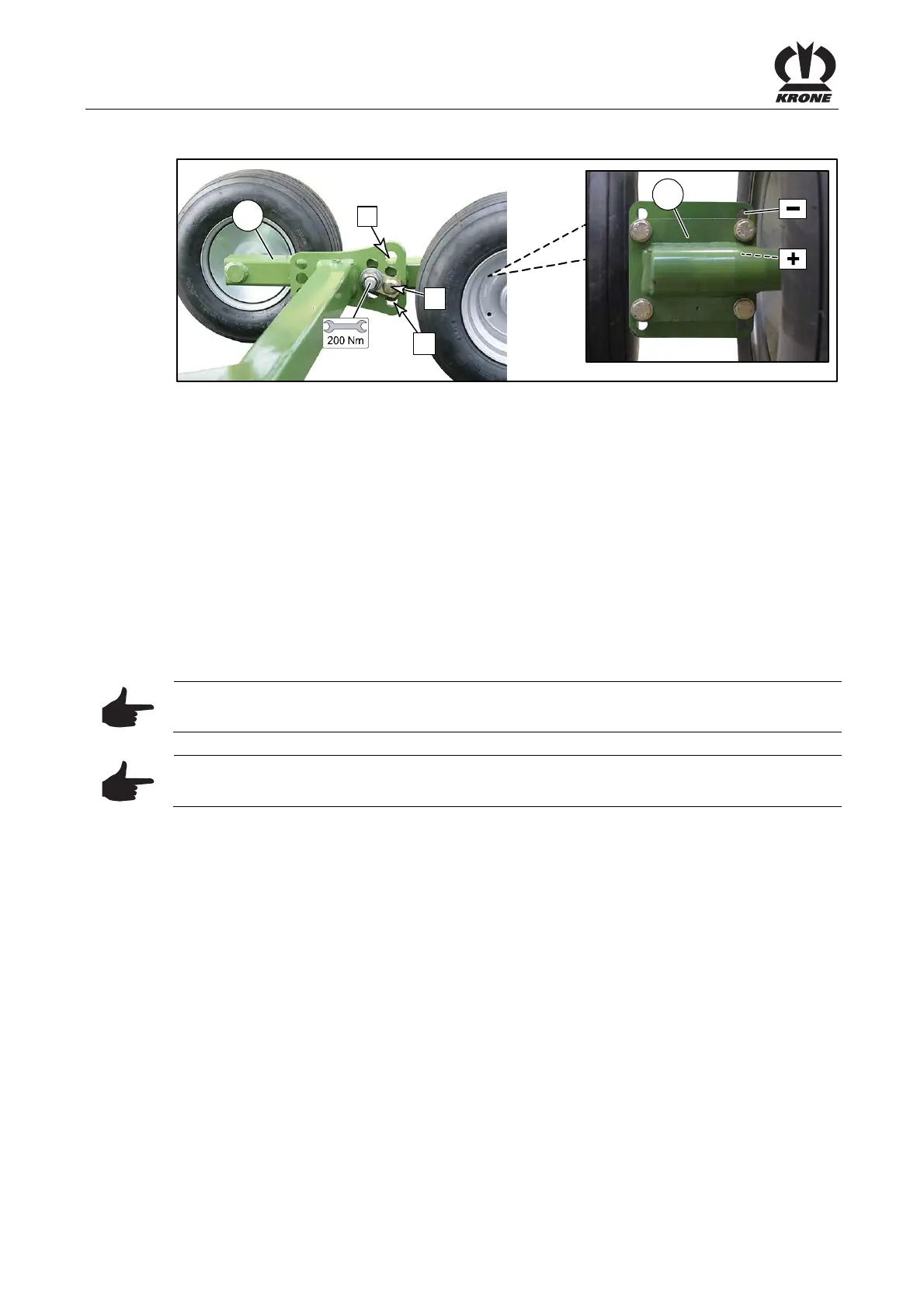

Fig. 61
Pos: 36.6.25 /Layout Module /----------------Leerzeile 5 Pt.-------------------- @ 120\mod_1342592918145_0.doc x @ 1092566 @ @ 1
Pos: 36.6.26 /BA/Ei nstellungen/Schwader /Kreiselfahr werkKreiselneigung eins tellen Text Position _äußeres Tandemfahr werk @ 466\mod_146797007 5772_78.docx @ 3140777 @ @ 1
Pos. I = reduce rotor inclination
Pos. II = increase rotor inclination
Pos: 36.6.27 /BA/Ei nstellungen/Schwader /Kreiselfahr werkKreiselfahrwerk Vor gehensweise Swadro di verse TC und TS @ 427\mod_14550 32842030_78.doc x @ 2959284 @ @ 1
Do not step under the raised rotors.
• Only raise the outrigger arms as far as necessary to perform the changeover work.
• To set rotor inclination, dismount the rear guide wheels and move them in the hole pattern.
For better orientation, observe the basic setting of rotor inclination, refer to chapter Initial
Operation, “Rotor Inclination - Basic Setting”.
Pos: 36.6.28 /BA/Ei nstellungen/Schwader /Kreiselfahr werk/Kreiselneigung ei nstellen über Platte_ Mittel- und Seitensch wader @ 247\mod_139641 9172322_78.docx @ 1924872 @ @ 1
Vernier adjustment via plate (1):
− = Reducing rotor inclination
+ = Increasing rotor inclination
Pos: 36.6.29 /BA/Ei nstellungen/Schwader /Kreiselfahr werk/Hinweis Einstell ung Kreiselneigung - Ta ndemachse waagerecht @ 224\ mod_1392137715602_7 8.docx @ 1811996 @ @ 1
Note
When adjusting the rotor pitch, ensure the tandem axle (2) is horizontal.
Pos: 36.6.30 /BA/Ei nstellungen/Schwader /Kreiselfahr werk/Hinweis schweres Fu tter - Fahrwerk innen mög lichst niedrig einstel len @ 4\mod_121308483822 6_78.docx @ 86157 @ @ 1
Note
If the forage is heavy, adjust the inner running gear as low as possible!
