9.13 Raising Additional Rotor to Transport Position
Pos: 32.108 /BA/Bedienu ng /Schwader/Zusat zkreisel in Transpor tstellung bringen Bil d SW 800/26 Zusatzkrei sel @ 427\mod_1455091137 352_78.docx @ 2960260 @ @ 1
SW700113_1
1
2
I
II
2
2

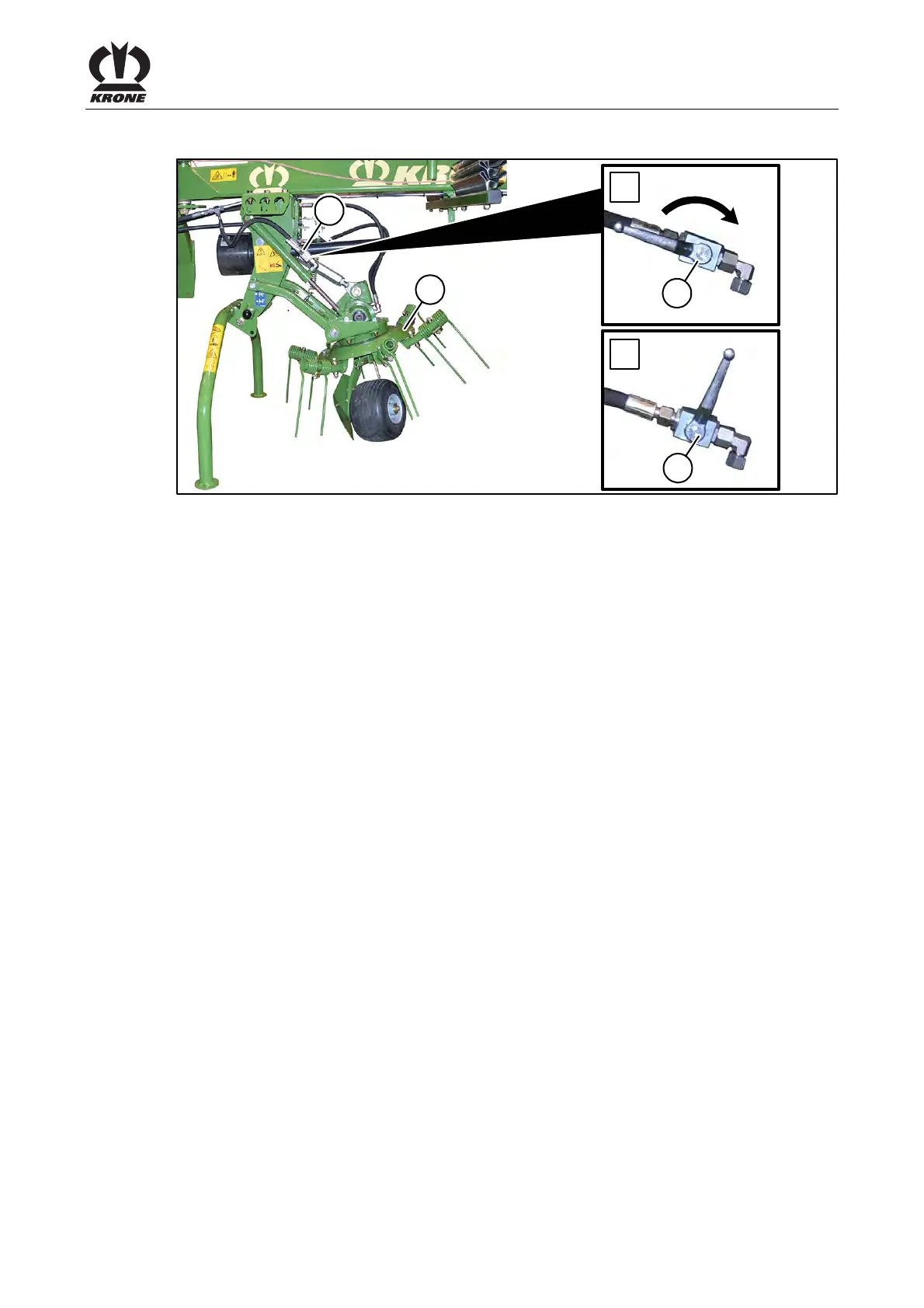

Fig. 53
Pos: 32.109 /BA/Bedienu ng /Schwader/Zusat zkreisel in Transpor tstellung bringen Text SW 800/26 Zusatzkreise l @ 167\mod_1367507758 370_78.docx @ 1446569 @ @ 1
• Turn on the tractor.
• Move the double-acting control unit to float position to stop the drive of the additional rotor
(1) to ensure that the rotor comes to a stop.
• Lift the additional rotor to transport position to activate the single-acting control unit.
• Turn the shut-off valve (2) to position II to close it.
• Move all hydraulic control units to float position.
