Driving and Transport
90
Pos: 34.15 /Übersc hriften/Überschri ften 2/K-O/MMaschine abs tellen @ 196\mod_1384184 875882_78.doc x @ 1661525 @ 2 @ 1
10.3 Switching off the machine
Pos: 34.16 /BA/Sic herheit/2. Vorangeste llte Warnhinweise/W arnung - Maschine sic her abstellen ohne Traktor_ Unterlegkeile @ 278\ mod_1404972644211_78. docx @ 2083305 @ @ 1
WARNING!
Risk of injury due to the unsecured machine rolling away!
If the machine is not secured against rolling away when it has been switched off, there is a risk
of people being injured by the machine rolling away in an uncontrolled manner.
Secure the machine against rolling away with wheel chocks.
Pos: 34.17 /BA/Bedienun g /Schwader/Abbau/ Abbau vom Traktor Bild SW TC 680_ TC 760_TC 760 X-tr @ 213\mod_13 89959592198_78.doc x @ 1748669 @ @ 1
SW700076_1
3
4
6
5
1
7
2
8

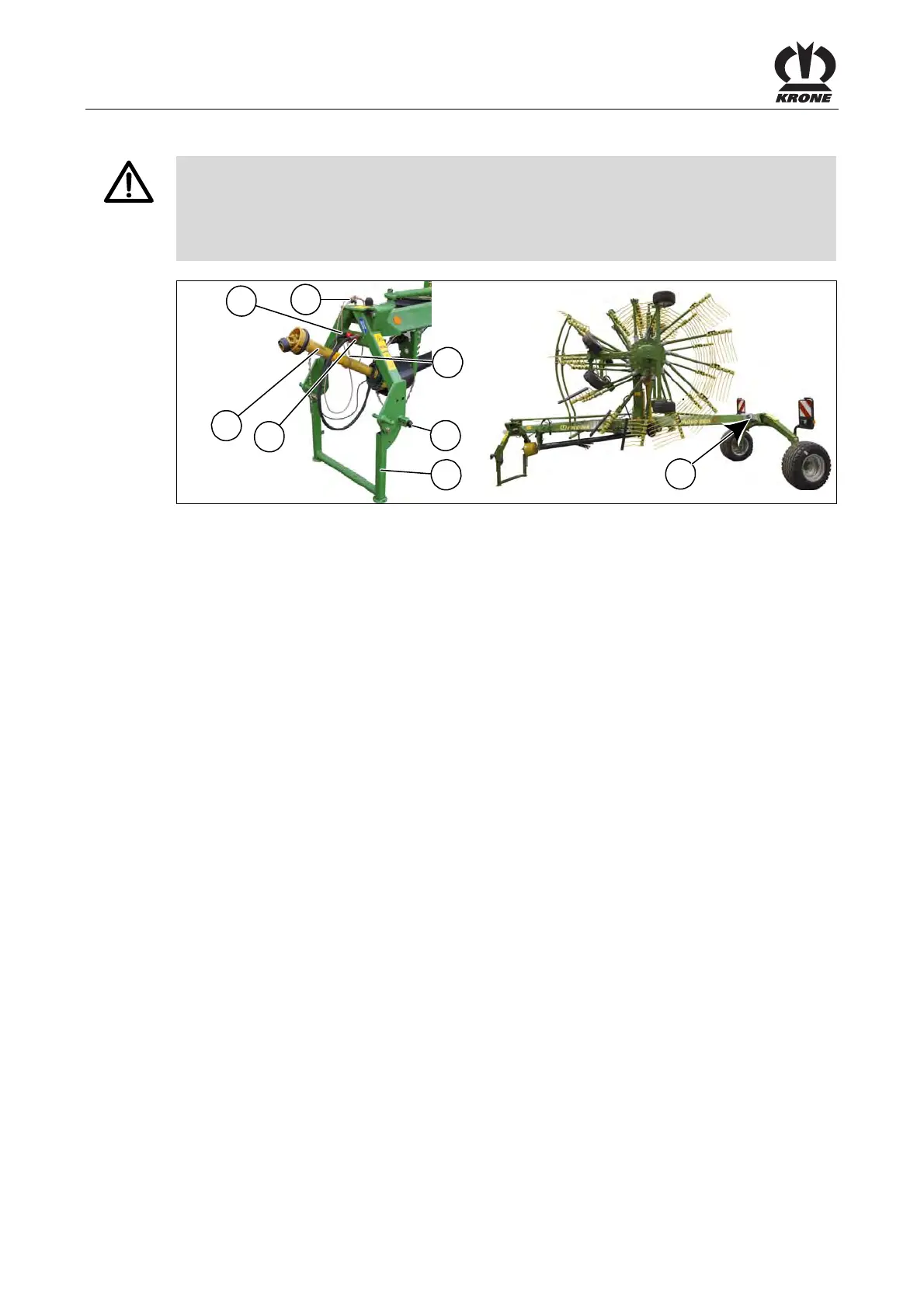

Fig. 58
Pos: 34.18 /BA/Bedienun g /Schwader/Abbau/ Abbau vom Traktor Text Swadro TC 680_760 @ 303\mod_14141 38461498_78.doc x @ 2357341 @ @ 1
Choose a level, dry and adequately stable surface.
Set control unit(s) to float position.
Switch off tractor and secure it against the possibility of rolling away.
Secure the machine against the possibility of rolling away by means of wheel chocks (8).
To swivel the parking support (1) downward, pull the bolt (2), swivel parking support
downward until the bolt locks.
Lower the lower links until the parking support is on the ground.
Disconnect universal shaft (3) and lay it down on the support (4).
Uncouple hydraulic hoses (5) and insert them into the supports.
Loosen lighting cable (6) between tractor and machine and insert it into the supports
intended for this purpose.
Disconnect the power supply plug (7) (optional) between tractor and machine and place it in
the supports.
Put down the operating cable.
Lower the lower link pinions of the tractor until the tractor can be driven away safely.
