Operation
71
Pos: 32.42 /Übersc hriften/Überschri ften 3/A-E/B/Bei Var iante Plus @ 360\mod_143937 2182647_78.docx @ 2666578 @ 3 @ 1
9.6.2 For Plus Version
Pos: 32.43 /BA/Bedienun g /Schwader/Krei selhöhe einstellen ( vorher: Arbeitstiefe) /Einstellen der Ar beitshöhe elektrisc h_Bild Swadro TC 680_760 @ 361\ mod_1439392517687_78. docx @ 2667476 @ @ 1
SW700088_2
4
1
3

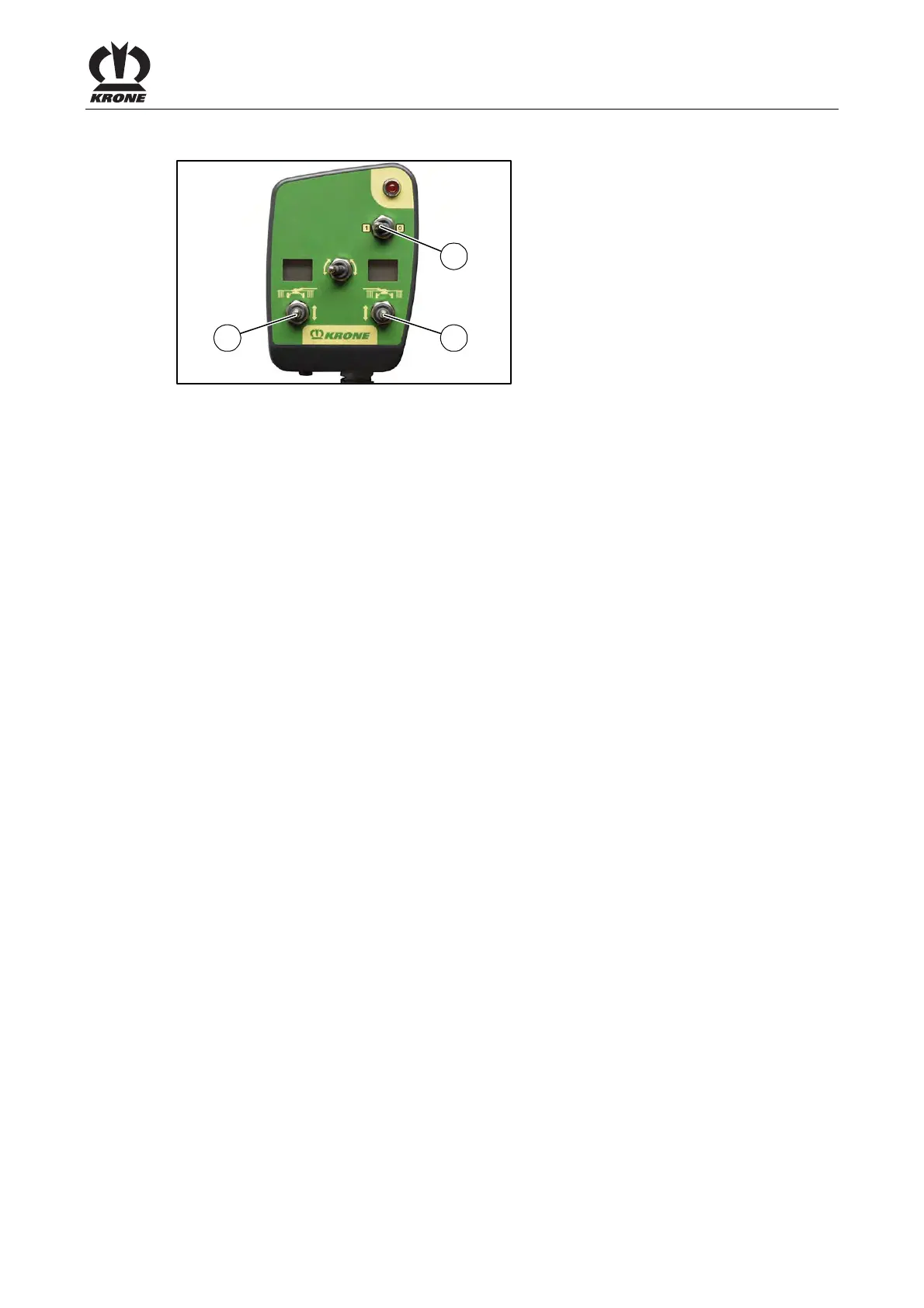

Fig. 41
Pos: 32.44 /BA/Bedienun g /Schwader/Krei selhöhe einstellen ( vorher: Arbeitstiefe) /Einstellen der Ar beitshöhe_elektri sch_Text Swadro TC 680_760 @ 361\ mod_1439392384655_78. docx @ 2667445 @ @ 1
The working height can be adapted to crops and terrain while the machine is in operation or in
headland position.
To do this:
Raise lower links until the lower link pinions are approx. 63 cm above the ground.
Move outrigger arms to headland position or working position.
Move switch (1) to position 1.
The operation panel is switched on.
Setting the working height on left rotor:
To increase the working height of left rotor, press switch (3) up.
To reduce the working height of left rotor, press switch (3) down.
Setting the working height on right rotor:
To increase the working height of right rotor, press switch (4) up.
To reduce the working height of right rotor, press switch (4) down.
